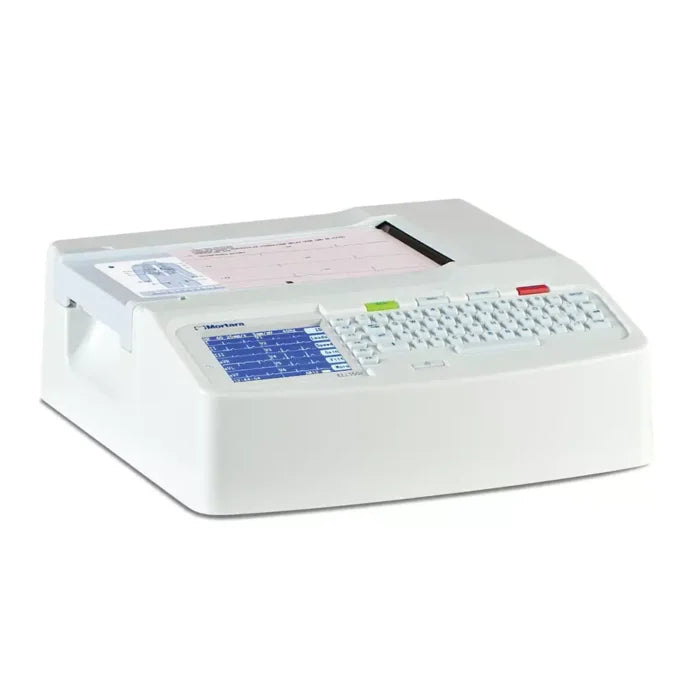

Welch Allyn® ELI® 150c Resting Electrocardiograph
Compact and lightweight, providing comprehensive functionality in a portable device.
The compact and lightweight ELI 150c Electrocardiograph provides comprehensive functionality in an ultra-portable device. Its widely recognised Mortara VERITAS™ resting ECG interpretation algorithm uses gender-specific and adult and paediatric criteria to provide a silent second opinion for resting ECG interpretation. A popular option as part of our ECG machine range.
The ELI 150c resting ECG offers a choice of either the innovative WAM™ wireless acquisition module or the AM12™ acquisition module for transfer of data. Both include replaceable lead wires, lead fail indicator and remote control with buttons for ECG acquisition and rhythm printing. And with the Mortara ECG Safe platform, it's easy to store ECGs for convenient viewing and file management from computers and mobile devices, without the need for special software or IT support. See the Baxter user manual here.
Choice of wireless or ethernet cable connections are available for connection to PCs, with remote control for ECG acquisition.
Product Features:
Portable, compact, and lightweight with comprehensive functionality
Choice of Wireless (WAM™) or traditional (AM™12) ECG acquisition modules with remote ECG acquisition and rhythm print capability
Best 10 technology automatically selects and displays the 10 seconds of data with the least amount of noise, reducing clinical review time and repeat ECGs
Full Keyboard with one-touch operation for ECG acquisition and ECG transmission/order retrieval
VERITAS® Resting ECG Interpretation with gender-specific and adult and pediatric criteria to provide a silent second opinion.
Option to support up to 3 clinical research protocols simultaneously
Helps achieve FDA Title 21 CFR Part 11 compliance
Data encryption on disk (256-bit AES Encryption)
User and role-based authentication and permissions for security
Audit trail logging and export
Bidirectional communication via USB, internal modem, LAN, wireless LAN, or GPRS enables connectivity to EHR, PACS, and Electronic Data Capture (EDC) systems used in clinical research
All Eli 150 ECG units include following:
200 ECG patient memory
Replaceable lead wires & lead off indicator
IEC banana clips, clip adaptors (10)
100x tab electrodes
ECG Paper
2 Year warranty
| Instrument Type | 12-Lead electrocardiograph (ECG) |
| Input Channels | Simultaneous acquisition of all 12 leads |
| Standard Leads Acquired | I, II, III, aVR, aVL, aVF, V1, V2, V3, V4, V5, V6 |
| Waveform Display | Backlit, color LCD (320 X 240) |
| Patient/Chassis Leakage Current | Meets or exceeds the requirements of ANSI/AAMI ES1 |
| Digital Sampling Rate | 40,000 s/sec (for pacemaker spike) 1000 s/sec (recording & analysis) |
| Paper | Perforated double Z-fold thermal paper; 108 mm wide |
| Thermal Printer | Computer-controlled dot array; 8 dots/mm |
| Thermal Printer Speeds | 5, 10, 25, or 50 mm/s |
| Gain Settings | 5, 10, or 20 mm/mV |
| Report Print Formats | Standard or Cabrera; 3, 3+1, 3+3, or 6 channel |
| Rhythm Print Formats | 3 or 6 channel with configurable lead groups |
| Keyboard | Keyboard with complete alphanumeric keys / Soft key & function keys |
| Frequency Response | 0.05 to 300 Hz |
| A/D Conversion | 20 bits (1.17 microvolt LSB) |
| Device Classification | Class I, Type CF defibrillation-proof applied parts |
| ECG Storage | Internal storage up to 40 ECGs; optional expanded up to 200 ECGs |
| Weight | 7.2 lbs. (3.3 kg) including battery (without paper) |
| Dimensions | 11.25 11.5 X 3.75" (29.2x30.5x10.2 cm) |
| Power Requirements | AC power supply (100-240V 50/60 Hz) 110 VA; Internal rechargeable battery |
