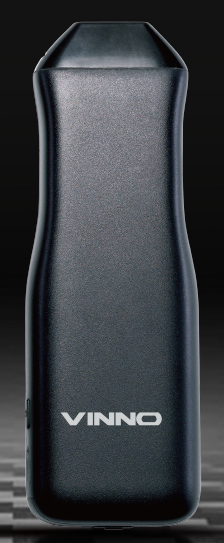

Vinno P – Handheld Ultrasound Probe

Vinno P Handheld Ultrasound Scanner – The New Generation of the pocket scanner

VINNO P Series, with its outstanding innovative ideas and highly integrated design scheme, achieves several key areas of breakthroughs. It creates a new generation of smaller system shape, more powerful performance and is suitable for various clinical scenarios.

IPX7 level of protection water performance, adapts for a wide range of scenarios and allows for high-level disinfection.

High-performance wireless data transfer to avoid data delay and loss.

Detachable long-life lithium battery, unlimited cycles, no waiting when used.

Support internal and external puncture guidance and accurate positioning to minimize clinical risks.

Originality in design and simplicity:

• Wireless
• Touch operation
• Light and convenient design
• ergonomic design
• Ease of connection
• simplicity for operator

 Efficient and intelligent technology:

• Automatic optimization
• Full screen
• Trapezoid imaging
• Auto trace
• Needle enhancement
• Biopsy

Wide Range of probe frequencies

The system performs multiple frequencies in a wide range of 2-16 MHz to cover the human body from shallow to deep tissue areas.
The maximum scanning depth supported is 36 cm.

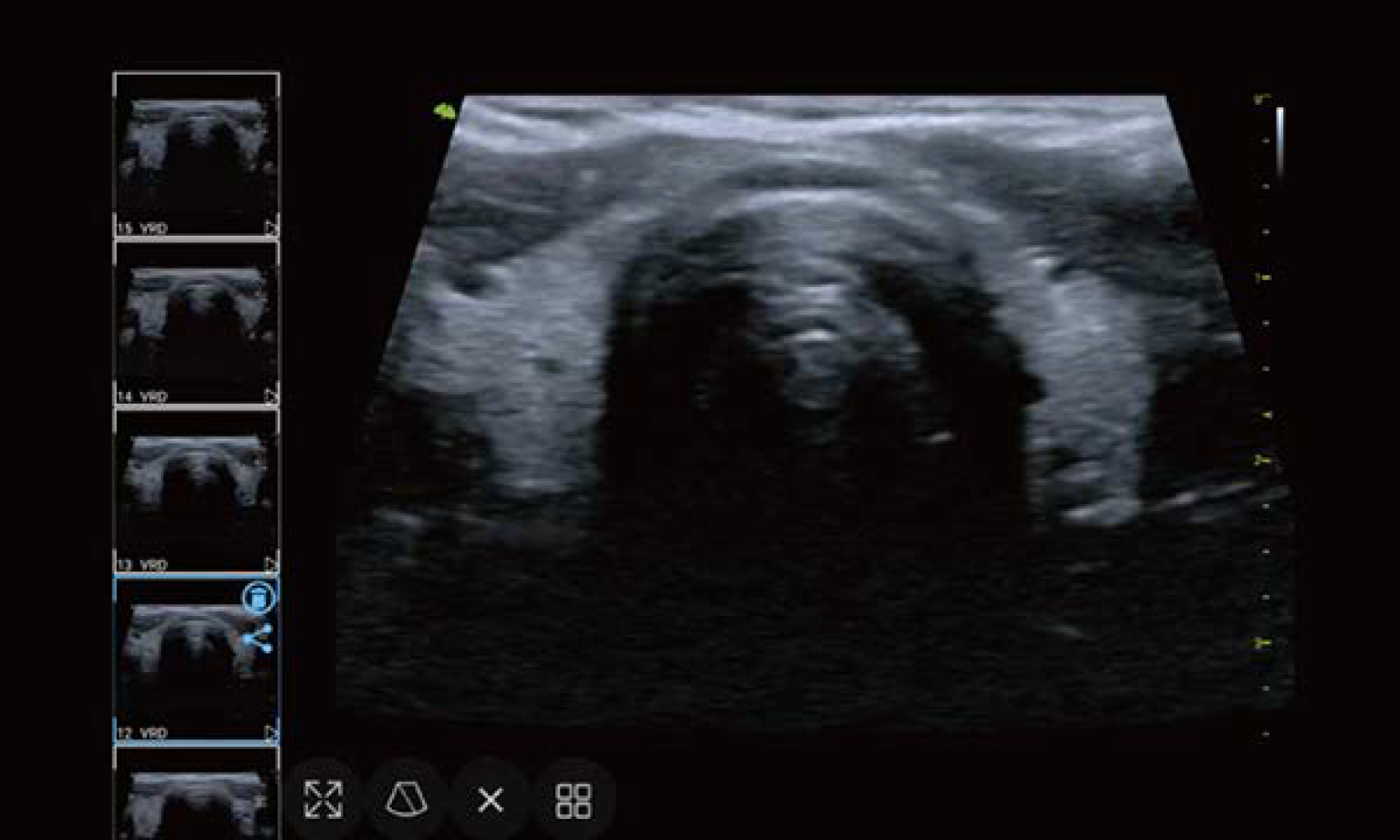

VSpeckle- Speckle noise cancellation algorithm

VSpeckle supports multi-level image raw data enhancement processing to make continuous enhancement of image tissue boundary can reduce the speckle noise and tissue artifact.

• Wireless
• Light and ergonomic design
• Easy Connection
• Simplicity for the operator

Applications

• Obstetric
• Abdomen
• Gynecology
• Cardiology
• Urology
• Vascular
• Small Parts
• Pediatrics
• MSK

Transducer type

• Linnear array
• Convex array

 Display Modes

Synchro function

Electrical Power:
The device is powered by lithium battery and equipped with two lithium panels, which is convenient for users to use for a long time without restriction.
Charging adapter
Voltage input: AC 100 ~ 240V±10%, Frequency: 50/60Hz±1Hz
Adapter:Voltage output: DC 5-20V Maximum rated power: 60W Charge base:Voltage input: DC 5-20V ;
Voltage output:DC 8.4V; Maximum rated power:33W
