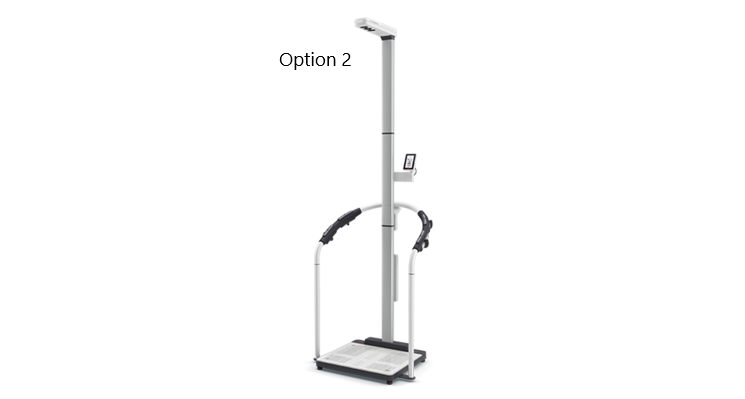

seca mBCA 555 - with handrail /& ultrasound height measure

seca mBCA 555 - with handrail /& ultrasound height measure

Regular price £8,499.00 GBP
Regular price Sale price £8,499.00 GBP
Sale Sold out
Shipping calculated at checkout.
BIA platform seca mBCA 555

SKU:555 7021 099 / 550 0010 009

Product Properties

  • Unique accuracy through whole body MRI validation (skeletal muscle mass) and 4C model (fat mass)
  • Handrail with fixed handle positions: Measurements are reproducible and reliable
  • Validation studies are bundled and transparently published in the European Journal of Clinical Nutrition 2013/2017, among others
  • Comprehensive, personalized normal ranges based on over 3,000 multi-ethnic subjects
  • Foot-mounted LEDs embedded in the platform show the various positions and give patients a sense of safety and orientation
  • Cloud-based software with easy understandable graphics guarantees a complete picture of the body composition
  • EMR-validated: transmit measured data directly to any electronic medical record system or printer
  • Precise and contactless height measurement in seconds using the latest ultrasonic technology (Option 2)

Developed in conjunction with medical users

The seca mBCA 555 is the BIA solution for the exceptionally accurate and user-friendly determination of body composition. Its unique validation against whole-body MRI (skeletal muscle mass) and 4C model (fat mass) ensures reliable and medically relevant results. The cloud-based software takes on all administrative tasks for you, thus allowing full focus on your patients. The handrail with fixed grip positions guarantees the reproducibility of the measurement conditions.

Key Technical Data

Capacity: 300 kg
Graduation: 50 g < 150 kg > 100 g
Power supply: Power adapter
Net weight: 4.1 sts / 26.5 kg
Options: without ultrasonic height measurement
Ports: LAN / USB bar code scanner / Wi-Fi
Product width: 839 mm
Product height: 1,280 mm
Product depth: 653 mm
Platform width: 600 mm
Platform height: 70 mm
Platform depth: 467 mm
BIA measuring method: 8-point Bioelectrical Impedance Analysis
BIA measuring frequency: 1; 2; 5; 10; 20; 50; 100; 200; 500 kHz
BIA measurement segments: Right arm, left arm, right leg, left leg, right half of body, left half of body, torso
BIA measuring electricity: 100 µA
BIA measuring period: 24 seconds

Functions and Properties
  • Display of user and patient name or ID
  • Display date of birth patient
  • TARE
  • Pre-TARE
  • HOLD
  • Auto-HOLD
  • CLEAR
  • Auto-CLEAR
  • RESET
  • Automatic weighing range switch-over
  • Adjustable damping
  • Auto-BMI
  • Standby mode
  • 8 point measurement
  • Confirm button
  • Acoustic signals can be activated
  • Wi-Fi
  • Ethernet
  • Backlighting
