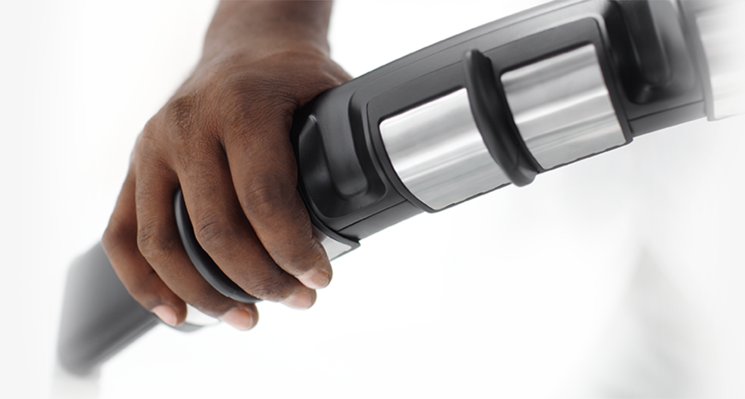

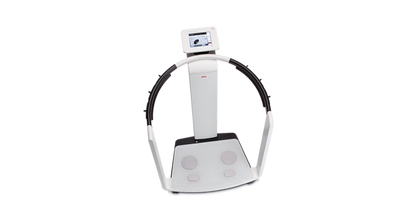

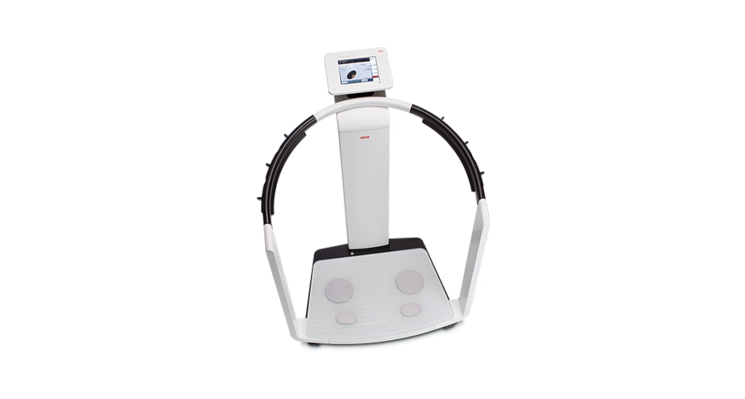

As the only BIA solution, the seca mBCA 515 is validated against whole-body MRIs (skeletal muscle mass) and 4C model (fat mass) and its high accuracy has been proven in peer-reviewed studies. Measurement results are clearly prepared and provide an immediate overview of the distribution of muscles, fat and water in the body. The fixed hand-held electrodes enable reproducible and precise measurements in daily practice and clinical operation.
Key Technical Data
Capacity: 300 kg
Graduation: 50 g < 150 kg > 100 g
Power supply: Power adapter
Net weight: 5.7 sts / 36.0 kg
Ports: Ethernet / USB 2.0 /seca 360° wireless
Product width: 976 mm
Product height: 1,251 mm
Product depth: 828 mm

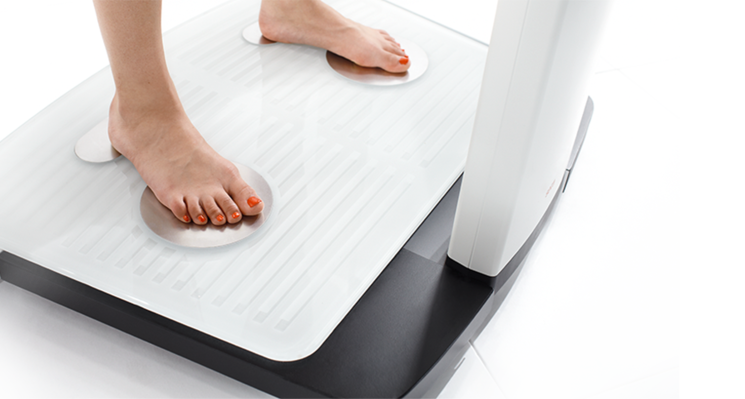

Platform width: 780 mm
Platform height: 12 mm
Platform depth: 510 mm

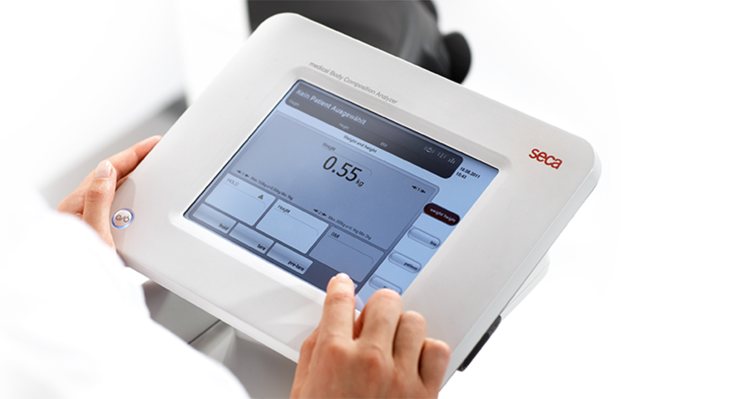

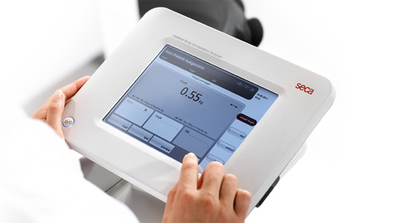

Display: 8.4" Touch-screen display, can be rotated 360°
Compatible printers: laser printer and inkjet printer via PC software seca analytics 115
BIA measuring method: 8-point Bioelectrical Impedance Analysis
BIA measuring frequency: 1; 1.5; 2; 3; 5; 7.5; 10; 15; 20; 30; 50; 75; 100; 150; 200; 300; 500; 750; 1,000 kHz
BIA measurement segments: Right arm, left arm, right leg, left leg, right half of body, left half of body, torso
BIA measuring electricity: 100 µA
BIA measuring period: 17 seconds
Functions and Properties
- TARE
- Pre-TARE
- HOLD
- Auto-HOLD
- RESET
- Step-off
- Automatic weighing range switch-over
- Calibration / automatic calibration
- BMI
- Auto-BMI
- SEND / Auto-SEND
- User-defined zero setting
- 8 point measurement
- Segmental measurement
- Multi-frequent measurement
- Patient data input
- Acoustic signals can be activated
- Ethernet
- Wireless
- Backlighting
- Date and time at printout
