Acquiring patient’s vitals is a routine task, performed on almost every patient. The seca mVSA 535 was designed to make this task as easy and efficient as possible. Staff at any level can operate the spot-check monitor due to its intuitive touch screen and self-explanatory user interface. The vitals capture is simple and fully validated for HL7 and many EMR systems. Connectivity to seca scales and measuring stations due to seca 360° proximity is also a plus as well as the unique seca EQ BP® technology. The seca mVSA fits perfectly into your existing workflows and frees up time and resources to improve patient care.
Key Technical Data
Temperature module: Option 1: Filac™ temperature oral/axillary
Option 2: Genius™ temperature module
SpO₂ module: seca SpO2 module
Power supply: Built-in power adapter, internal rechargeable lithium-ion battery
Net weight: 0.4 sts / 2.7 kg
Ports: Ethernet, USB 2.0, Wi-Fi
Product width: 254 mm
Product height: 262 mm
Product depth: 278 mm
Display: 7" Touchscreen-Display
Blood pressure measurement method: Oscillometric, deflation or inflation measurement switchable between single measurement (seca EQ BP®) and configurable multiple measurements (BP 30)
Measurement accuracy at ambient temperature 16 °C – 33 °C (60.8 °F – 91.4 °F): Option 2: Target temperature: 36.7 °C 38.9 °C (98.1 °F 102 °F) ± 0.1 °C ( ± 0.2 °F)
Measurement accuracy at target temperature 25 °C (77 °F): Option 2: Target temperature: 33 °C 42 °C (91.4 °F 107.6 °F) ± 0.2 °C ( ± 0.4 °F)
Blood pressure measurement certainty: Excess pressure limit 300 mmHg; automatic pressure release at > 300 mmHg
Blood pressure measurement time: Normal: 15 - 20 sec / max. 90 sec (adults)
Blood pressure measurement range – deflation: pSYS: 25 - 280 mmHg pDIA: 10 - 220 mmHg pMAP: 15 - 260 mmHg
Blood pressure measurement range – inflation: pSYS: 77 - 200 mmHg pDIA: 45 - 190 mmHg pMAP: 56 - 193 mmHg
Blood pressure measurement accuracy – inflation (clinically validated according to ISO 81060): Mean deviation systole 0.94 mmHg; Standard deviation systole 3.84 mmHg; Mean deviation diastole 0.57 mmHg; Standard deviation diastole 3.17 mmHg
Blood pressure measurement accuracy – deflation (clinically validated according to ISO 81060): Mean deviation systole 0.39 mmHg; Standard deviation systole 2.57 mmHg; Mean deviation diastole 0.43 mmHg; Standard deviation diastole 1.73 mmHg
Blood pressure pulse rate range – deflation: 30 - 240 bpm
Blood pressure pulse rate range – inflation: 45 - 200 bpm
Blood pressure pulse rate accuracy: max. +/- 3 bpm
SpO₂ measurement method: Pulse oximetry
SpO₂ measurement range: 0 - 100 %
SpO₂ measurement accuracySpO2 - resting (60 % - 100 %) ± 2 Arms;
SpO2 - in motion (70 % - 100 %) ± 3 Arms
SpO₂ pulse rate measurement range: Pulse rate PR (Standard) 30 bpm to 240 bpm;
Pulse rate PR (Enhanced) 20 bpm to 300 bpm
SpO₂ pulse rate measurement accuracy: ± 2 bpm
Temperature measuring method: Option 1: Oral/axillary (direct or predictive)
Option 2: in Ear
Temperature measuring range: Option 1: Direct 30 °C - 43 °C (86 °F - 109.4 °F); predictiv 35.5 °C - 42 °C (95.9 °F - 107.6 °F)
Option 2: 33 - 42 °C / 91.4 - 107.6 °F
Temperature Measurement Accuracy: Option 1: Direct ± 0.1 °C (± 0.2 °F)Predictive (for 95 % of measurements) ± 0.1 °C (± 0.2 °F)
Temperature measurement response time: Option 1: Predictive (oral) 3 - 10 sec.; Predictive (axillary/rectal) 8 - 14 sec.; Direct 60 - 120 sec
Option 2: < 2 sec.
Scope of Delivery

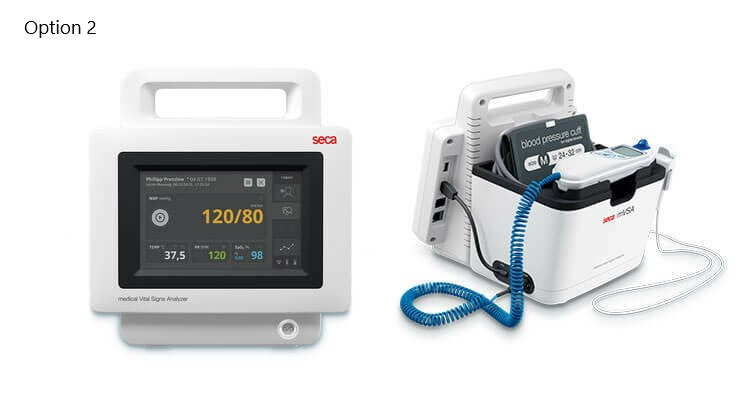

- Removable SmartBucket with integrated Vital Signs Moduls: for blood pressure/Temp/SpO2 measurement
- Monitor with power cable
- Blood pressure cuff (reusable), size M
- seca SpO2 cable extension
- seca SpO2 SoftFlap® sensor (clip for adults)
-
Option 1: 2x Filac™ probe cover (Box á 20 pcs)
-
Option 1: Filac™ temperature probes blue (oral)
-
Option 2: 1x Genuis™ 2 Covidien Genius™ probe covers (Box á 96 pcs)
-

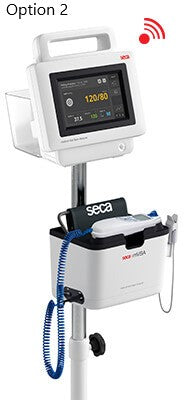

Option 2: Genius™ 2 Tympanic in-Ear thermometer

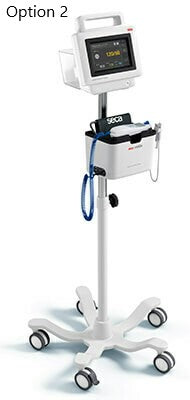

- Trolley sold seperately
