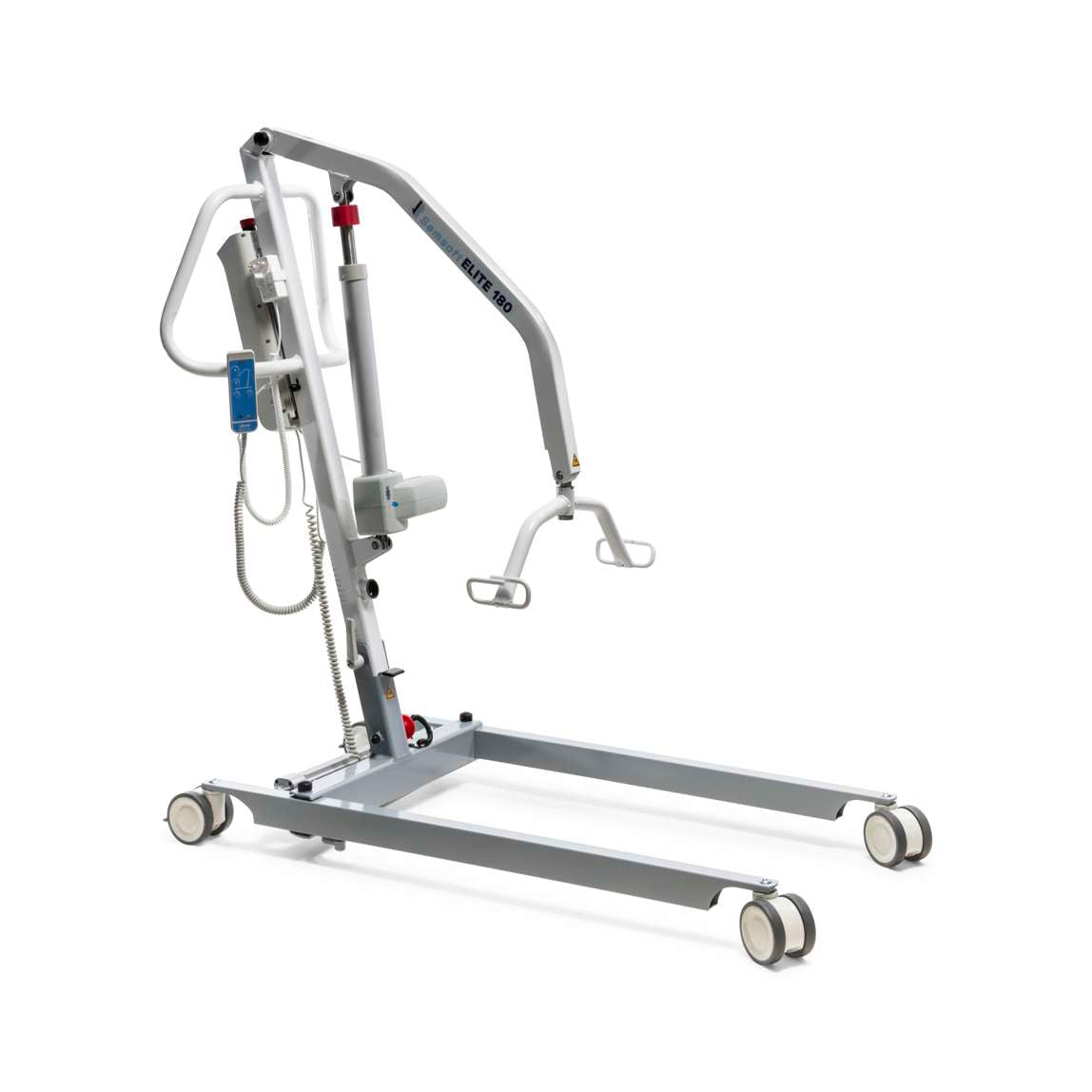

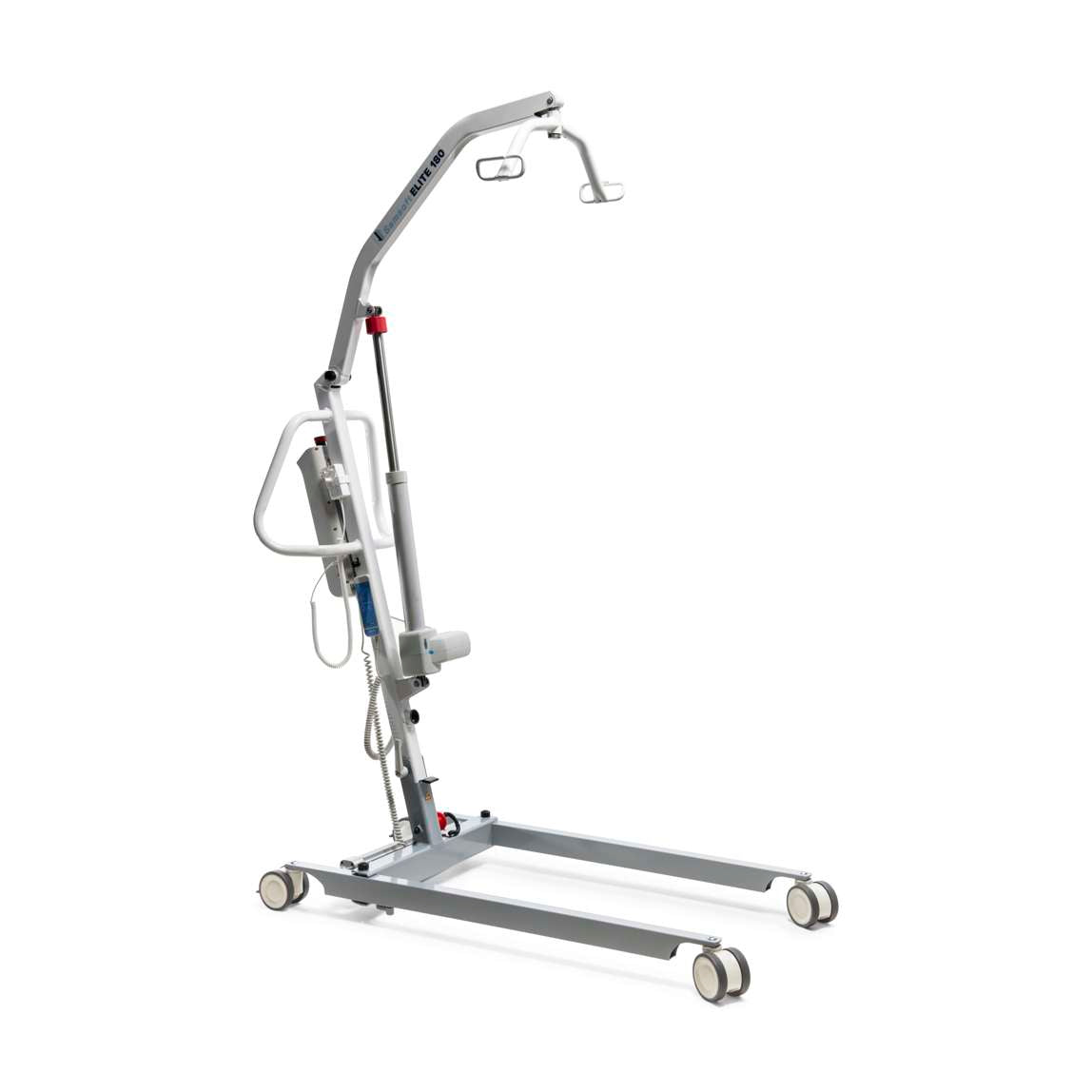

Samsoft Elite 180 Hoist

Its quick, tool-free, easy fold mechanism, and smart compact design, means that the Samsoft Elite 180 is the perfect solution to enhance patient care in home and care environments.

• The 180kg max capacity complies with NHS tender requirements

• Compact design for easy transportation and storage

• Robust design and construction

• Innovative, tool-free easy-use folding mechanism facilitates stress-free single-handed care

• Large multi-position, ergonomic push handle offering a variety of comfortable positions for users of different heights

• Innovative magnetic spreader bar lock is easy to use for safe transportation

• Electrically operated lifting and leg opening to reduce physical strain on caregivers

• Improved lifting range from 47-178cm provides effortless transfers from floor to higher level surfaces

• Large braked castors allows for easy manoeuvring around furniture and over uneven flooring and door thresholds

• Cleverly designed curved spreader bar allows carers to maintain eye-contact and reduces risk of contact with the patient’s head. This optimises patient comfort and security during transfers.

• User friendly magnetic handset for convenient and flexible use

• Emergency stop and manual lowering functions

• Maintenance monitoring to support LOLER compliance by months or lift cycles

• Lightweight Lithium-ion battery with a longer lifespan

• Separate charging dock available as an accessory

SPECIFICATION
• Weight Capacity (Patient & Sling): 180kg
• Wide Leg Opening: 99.1cm
• Lifting Height (Min-Max): 47-178cm
• Width of Base (Legs closed): 65cm
• Overall Length: 133cm
• Base Height (Frame): 12cm
• Turning Diameter: 143cm
• Ground Clearance: 2.6cm
• Inner Feet Spacing: 112cm
• Noise Level: <55dB(A)
• Device lifetime: 10 years
• Patient lift weight (without cross-bar) 40.2kg

WARRANTIES
• 5 years structure & actuator
• 2 years box and remote control
• 1 year battery

• SKU

  SR3110200

• Label

  Samsoft Elite 180 Hoist

• Width

  Internal Leg: 48.8-112cm

• Length

  133cm

• Ground Clearance

  2.6cm

• Product Weight

  41.8kg (inc. standard spreader bar)

• Turning Radius

  143cm

• User Weight Capacity

  180kg (Patient & Sling)
