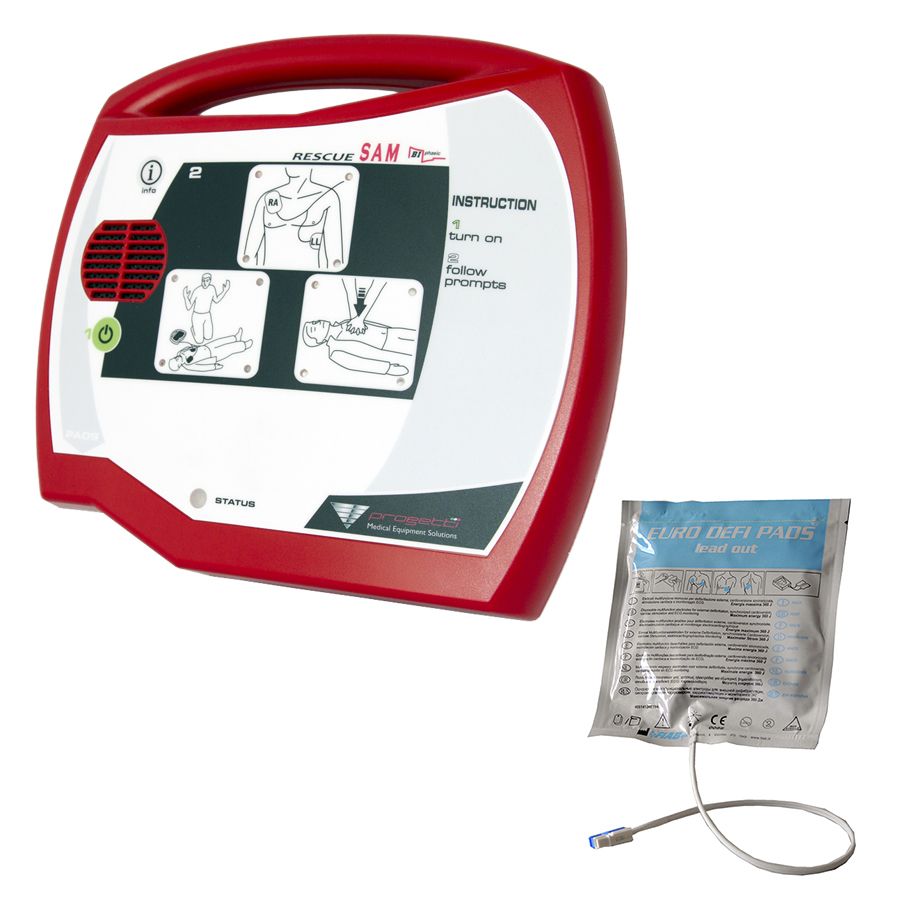

Rescue SAM Fully-Automatic AED Defibrillator with Adult Pads

The Rescue SAM is a high quality automated external defibrillator (AED) designed and made in Italy. Great battery life with 8-year warranty* on the main unit!

Detailed Technical Information -

• OPERATING MODE: Semi-automatic or Fully-automatic
• ENERGY: 200J fixed as new norms AHA 2010
  - adult: nominal 200 J into a 50 Ω load
  - infant/children: less than 50J using optional attenuated pediatric pads
• SHOCK ENERGY ACCURACY: According to IEC EN60601-2-4
• PROTOCOL: voice prompts and indicators guide user through protocol
• PACEMAKER: detection and rejection
• CHARGE CONTROL: automatic by software (arrhythmia detection system and charging control)
• CHARGE TIME FROM “SHOCK ADVISED”: <8 seconds, typical with new battery
• VOICE INSTRUCTIONS: detailed voice messages guide responder through use of the defibrillator
• CONTROLS: info-button, On/Off button
• INDICATORS: LEDs (different colors), info-button
• CHARGE COMPLETE INDICATOR: Voice prompts / Flashing red shock button
• DISARM: once charged, the RESCUE SAM disarms if:
  - Patient’s heart rhythm changes to non-shockable rhythm, or
  - The Power ON/OFF button is pressed to turn OFF, or
  - The defibrillator pads are removed from the patient or the pads connector is disconnected
• SHOCK DELIVERY VECTOR: via adult defibrillator pads in the anterior (Lead II) position or via reduced-energy pediatric pads in the anterior-posterior position
• PATIENT ISOLATION: type BF
• BATTERY: 12 Volt DC, 4.2 Ah, lithium manganese dioxide, disposable long-life
• BATTERY CAPACITY: min.200 shocks or 4 hours of operating time continuous
• AUTOMATED AND USER-ACTIVATED SELF-TESTS:
  - Daily Self-tests: tests internal circuitry, waveform delivery system, battery capacity, and software.
  - Battery Insertion Test: upon battery insertion, extensive automatic self-tests and user-interactive test check device readiness.
• (Optional) DATA RECORDING AND TRANSMISSION:
  - Dedicated interface to download data
  - Optional special battery pack for data transmission
  - Data stored: first 60 minutes of ECG and the entire incident’s events
  and analysis decision.
• SIZE: 80x300x270 mm
• WEIGHT: 2.2 kg with battery pack installed.
