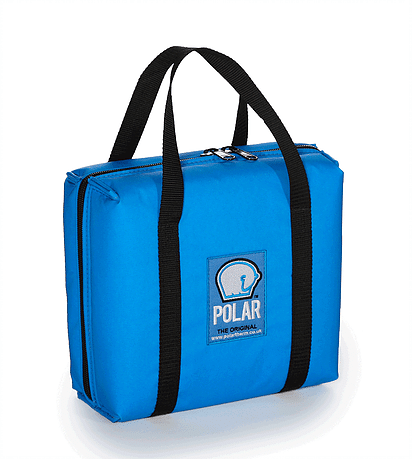

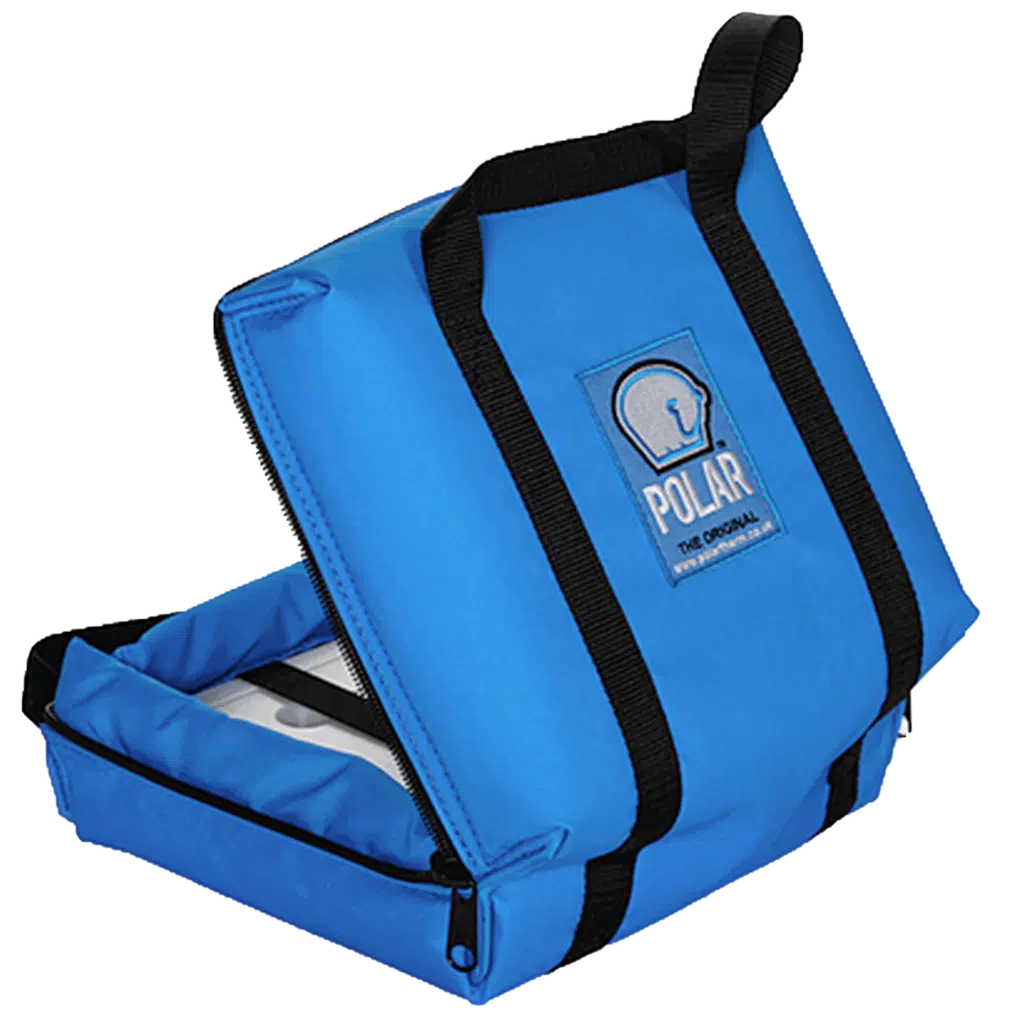

Polarthermal - Polartherm Clamshell Thermal Vaccine Bag (incl. 2 Cool Blocks)

Product Properties

This Polartherm™ Clamshell Thermal Vaccine Bag has been designed to maintain temperature of between 2 and 8°C for up to a maximum of 4 hours with the correct use of cooling blocks (2 included). The bag is made of our patented Polartherm™ material; independent trials have proven that product temperature change is Circa 0.73°Centigrade per hour.

Preconditioning

• Be sensitive where you keep the vaccine bag. Try to avoid warm areas and direct sunlight and preferably keep in a cool, shaded area
• Always precondition the vaccines by refrigerating them for a minimum of 48 hours at 2-4°C before transferring to the thermal bag
• Coolants should be kept for a minimum of 24 hours in a refrigerator at between 2-4°C before use

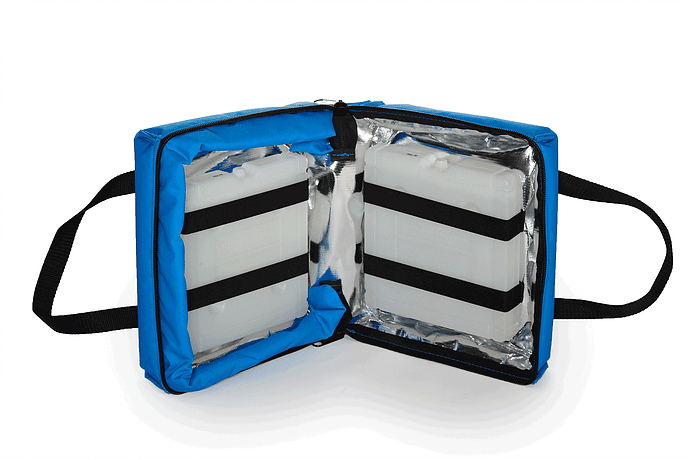

Loading the Bag

• Bring the bag close to the fridge
• Take out the two coolants from the fridge and the vaccines
• Place one coolant in the bottom of the bag beneath the straps
• Place the second coolant beneath the straps at the top of the bag
• Place the vaccines in the centre of the bag on top of the bottom coolant
• Close the bag and securely zip up the lid

Specifications

• Weight with coolants: 2 kgs
• External surface material: Cotton coated PVC
• Internal lining material: Cotton coated PVC
• Insulation material: Patented Polartherm™ material
• Insulation thickness: 45mm
• External dimensions: Width: 300mm height: 120mm depth: 270mm
• Internal dimensions: width: 250mm height: 70mm depth: 200mm
• Lid type and fixings: Zip
• Number of icepacks supplied: 2 x coolants take up 4cm of height space
• Cold life without opening: 17 hours if unopened.
• Thermal Conductance: (W/m².K) 1.01 ± 0.1
• Thermal Conductivity: (W/m.K) 0.05 ± 0.005

Images for illustration purposes only, actual product may differ.
