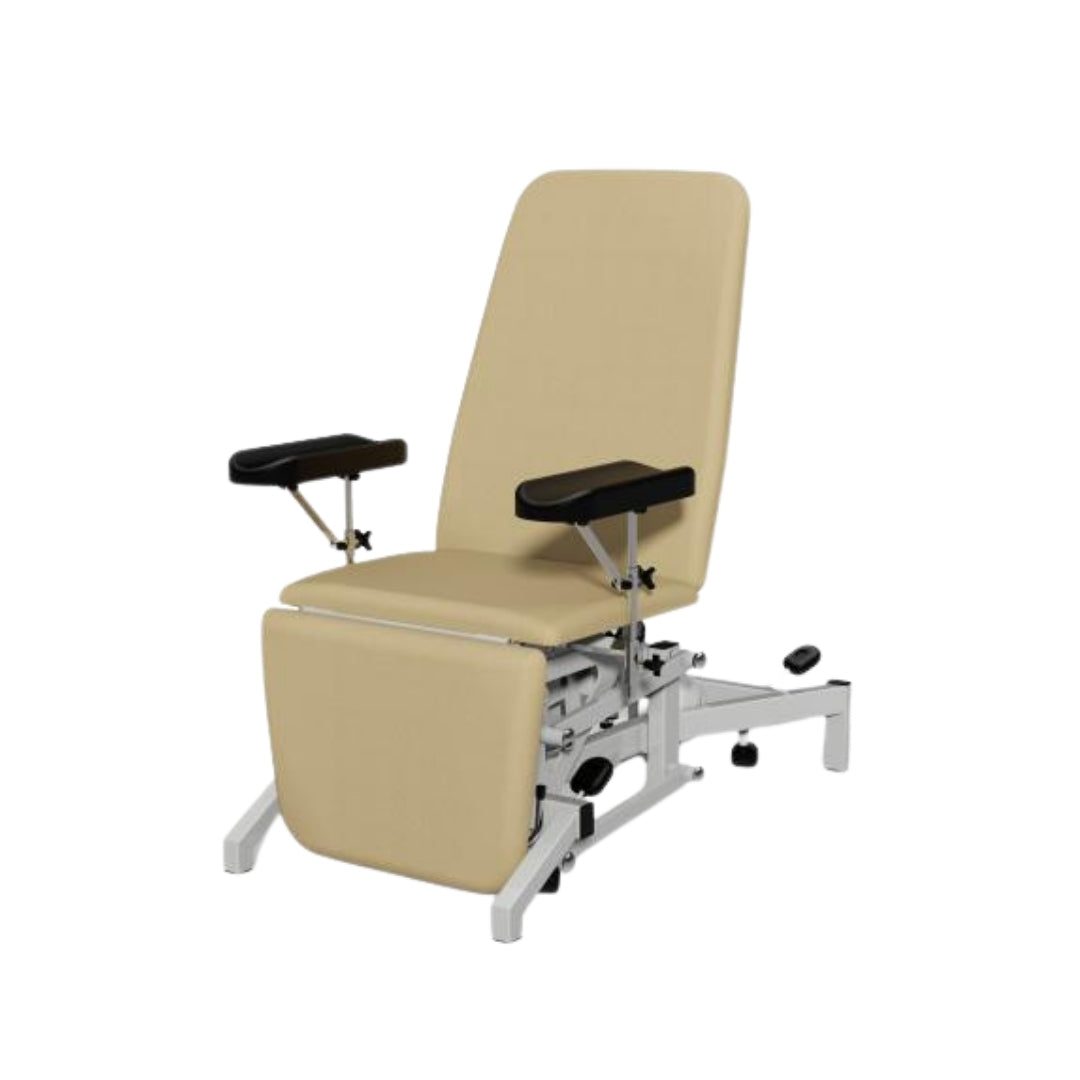

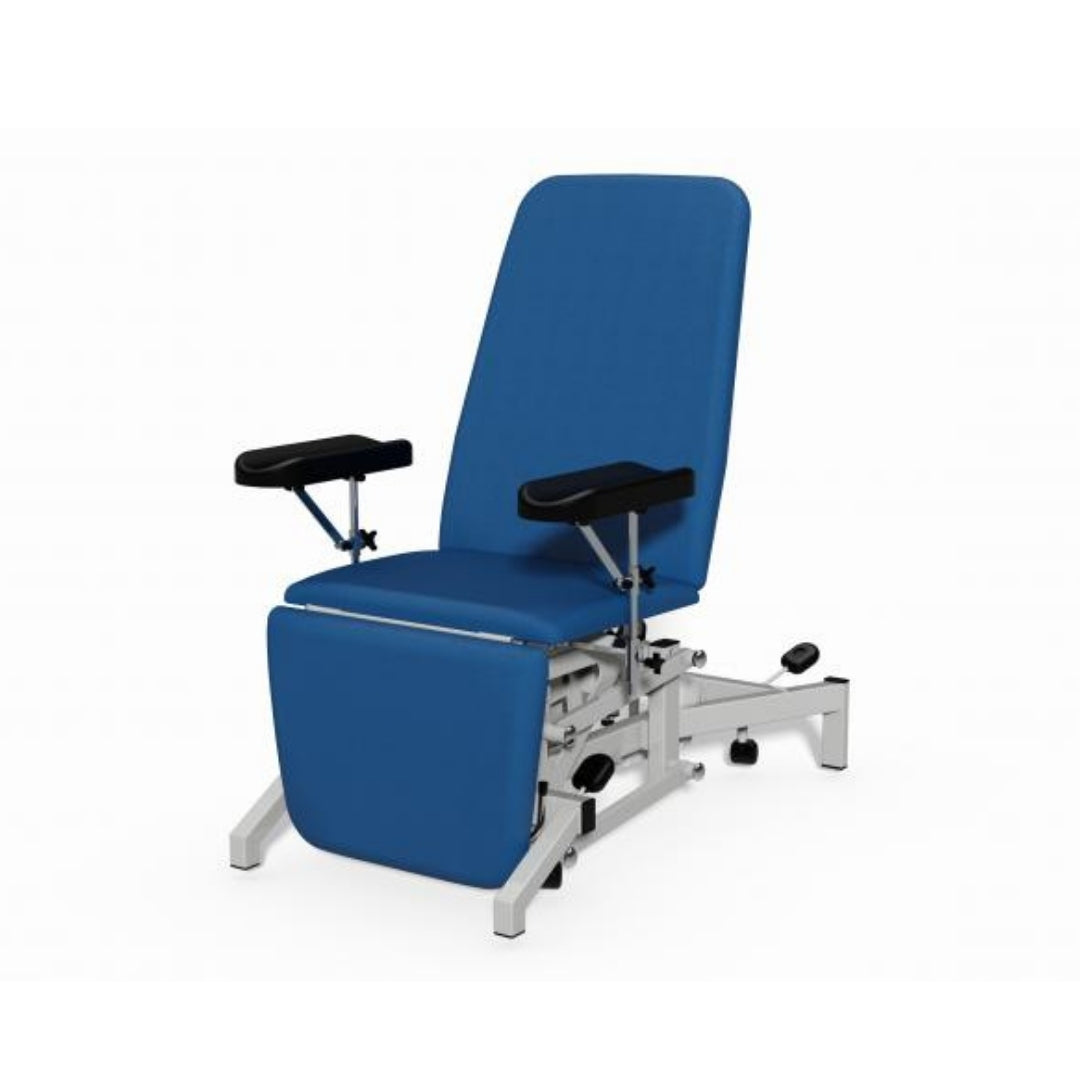

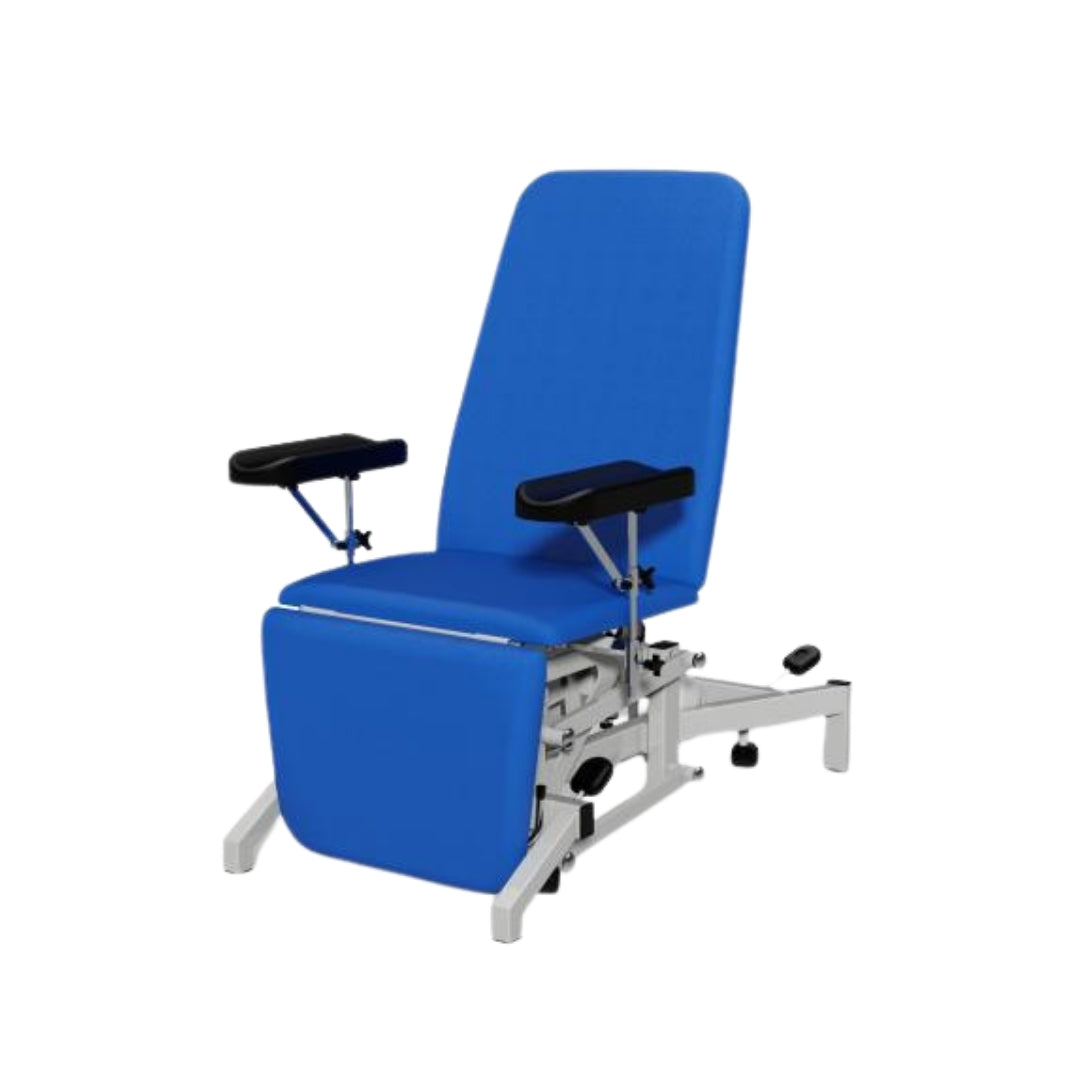

Plinth Medical 93BE 3-Section Phlebotomy Treatment Couch - Electric

The Plinth Medical Model 93B Electric Phlebotomy Chair is a UK-manufactured blood taking chair designed for hospitals, clinics and busy phlebotomy departments. Its electric height adjustment, multi-position backrest and adjustable phlebotomy arms provide flexibility for patient positioning and practitioner access.

With a 250kg safe working load (SWL), the chair can be converted from an upright seated position into a flat treatment surface with a head-down recovery position, making it suitable for a range of blood taking procedures and clinical requirements.

Electric Height Adjustment

The Model 93B features electric height adjustment, allowing healthcare professionals to raise or lower the chair using straightforward controls.

With an approximate height range of 47cm to 97cm, the chair provides a low entry position for patient access and a choice of working heights for different procedures.

Multi-Position Backrest

The chair incorporates a manually adjustable backrest with an adjustment range from -15° to +85°.

The upright position supports patients during blood taking procedures, while the backrest can be lowered to create a flat treatment surface.

The -15° head-down position provides an additional recovery positioning option when clinically appropriate.

Adjustable Phlebotomy Arms

The Model 93B is supplied with a pair of multi-position phlebotomy arms designed to support patients during blood sampling procedures.

Both arms offer height and angular adjustment, allowing practitioners to position the patient's arm appropriately for venepuncture.

This flexibility accommodates different patient positions and practitioner working preferences.

Adjustable Foot Section for Patient Access

The manually adjustable foot section can be positioned between -90° and +10°.

Lowering the foot section to -90° allows patients to approach and access the chair from the front or side.

The foot section can also be raised to provide support when patients are seated or reclined.

Flat Treatment Surface and Head-Down Recovery Position

The Model 93B can be converted from a seated phlebotomy chair into a flat treatment surface.

Its manually adjustable backrest and foot section allow healthcare professionals to reposition patients according to the requirements of the procedure.

The head-down recovery position provides additional flexibility when patients require repositioning following blood taking.

Antimicrobial Vinyl Upholstery

The chair features hardwearing antimicrobial vinyl upholstery with comfortable foam padding.

The vinyl has been independently tested for effectiveness in reducing the spread of MRSA, E. coli and similar bacteria and fungi.

It is phthalate-free, flame retardant to CRIB 5 and has achieved a rating of 1,000,000 Martindale rubs without damage or marking to the top layer.

These properties make the upholstery suitable for busy healthcare environments where regular cleaning and durability are important.

Retractable Wheel Base and Hoist Clearance

A retractable wheel base allows the chair to be repositioned around the treatment room when required.

An adjustable foot helps provide stability on uneven floor surfaces.

With 13cm clearance beneath the frame, the Model 93B also provides space for compatible mobile patient hoists.

Designed for Busy Phlebotomy Departments

The Plinth Medical Model 93B Electric Phlebotomy Chair is designed for regular use in hospitals, blood taking clinics and professional healthcare environments.

Its 250kg safe working load, adjustable phlebotomy arms and flexible patient positioning make it suitable for a broad range of patients and clinical requirements.

The chair is designed and manufactured in the UK, with an average lifespan of 16 years stated by the manufacturer.

Medical Device Standards and Compliance

The Plinth Medical Model 93B is classified as a Class I medical device under the applicable UK and EU medical device regulations.

The manufacturer specifies IEC 60601-1 as the electrical standard, with an IP rating of IPX6 or IPX4 depending on the selected options.

The vinyl and foam meet the manufacturer's stated CRIB 5 flame-retardancy requirements.

The chair is UKCA and CE marked, and Plinth Medical Ltd is externally audited to ISO 9001:2015.
