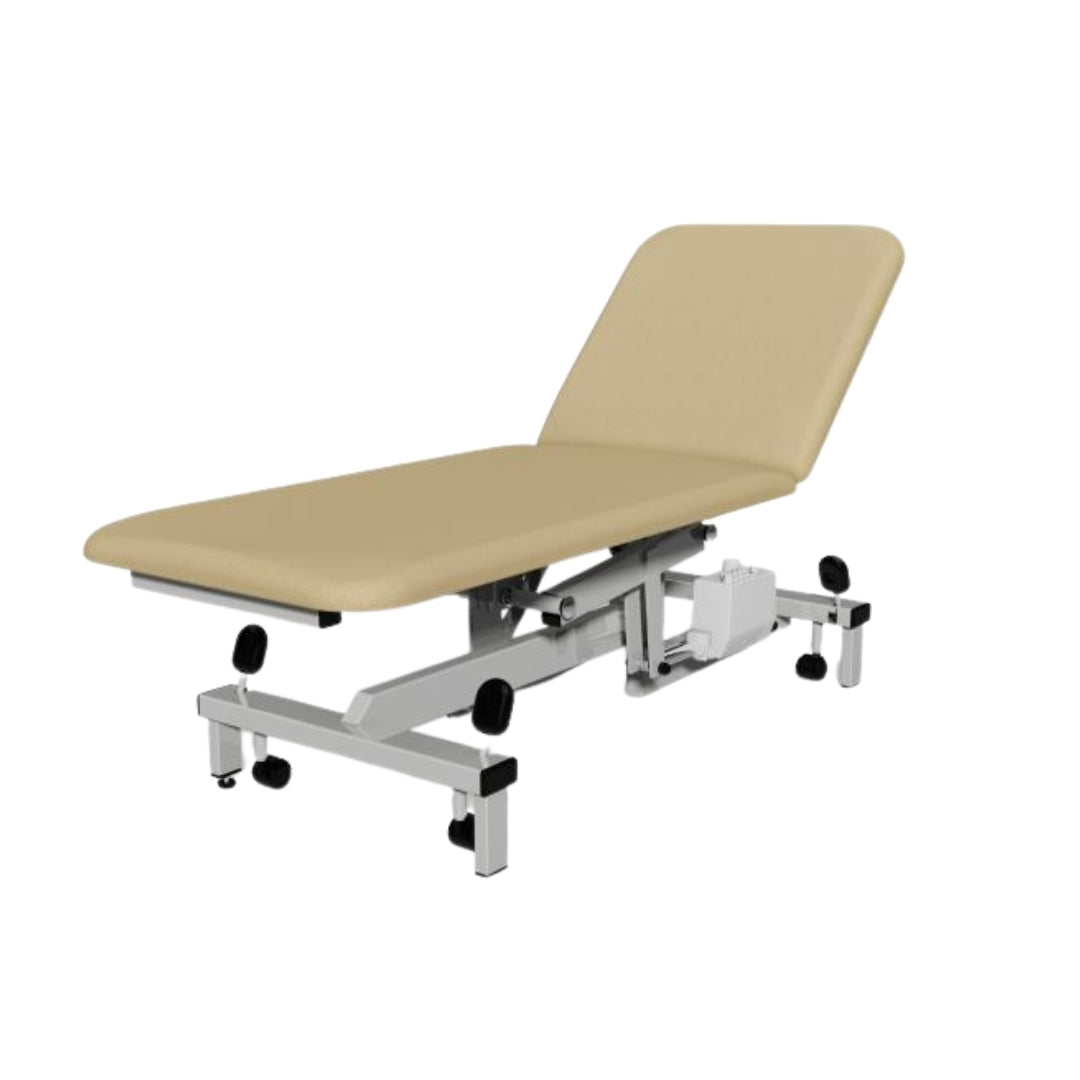

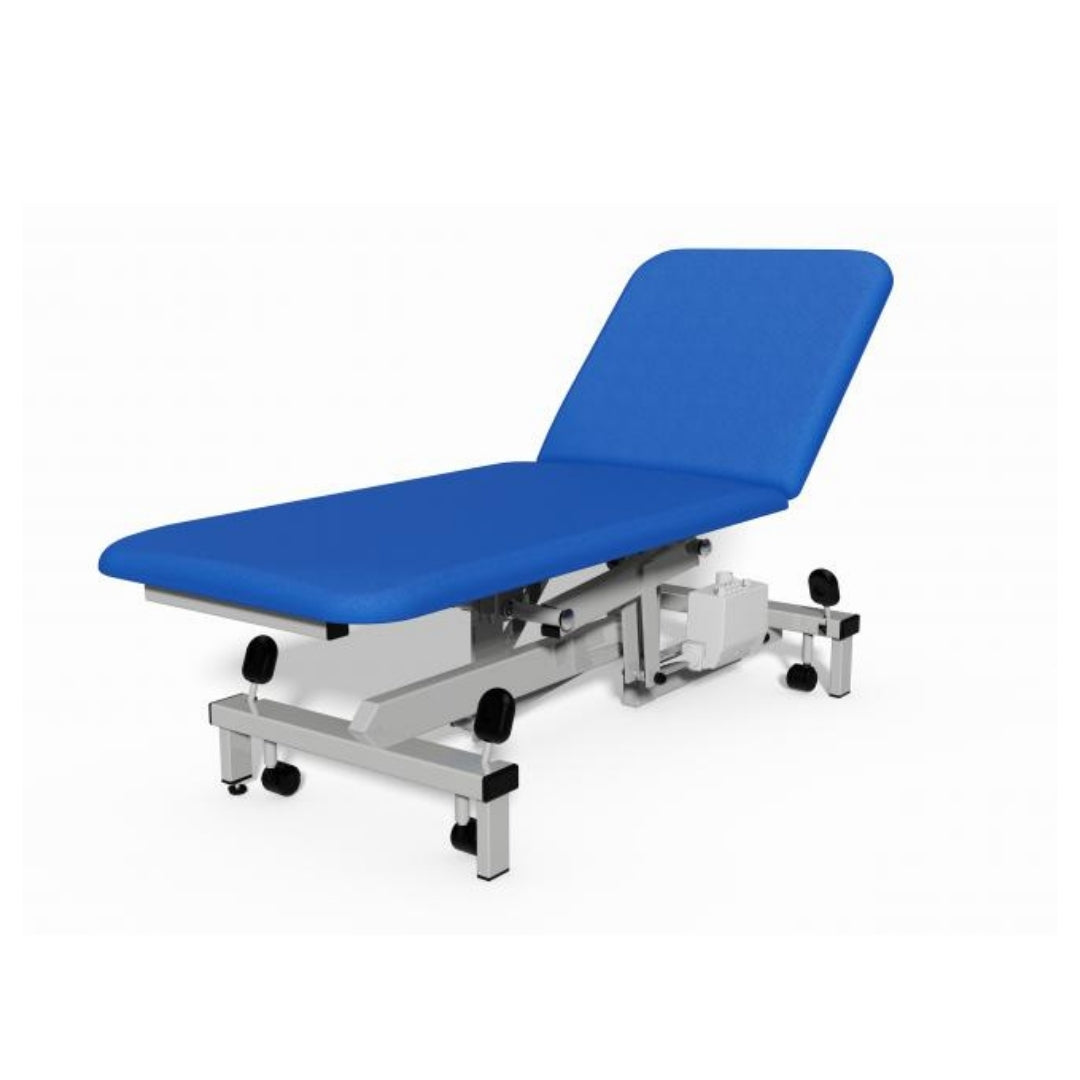

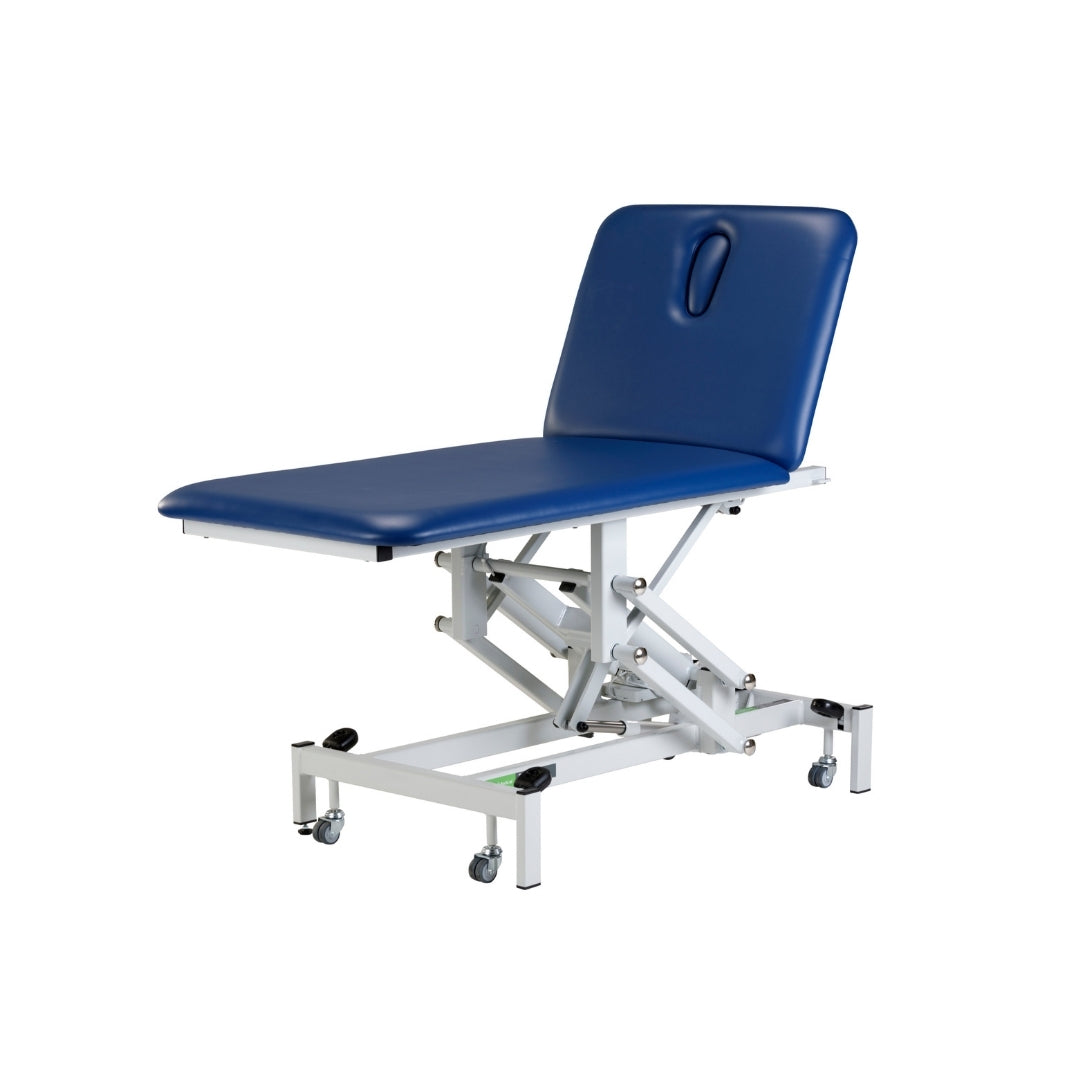

Plinth Medical Model 502H 2-Section Treatment couch - Hydraulic

The Plinth Medical Model 502H Hydraulic 2-Section Examination Couch is a UK-manufactured examination couch designed for busy healthcare environments requiring reliable, non-electric height adjustment. Its hydraulic lifting mechanism and manually adjustable backrest provide a practical examination surface for routine patient assessments and treatments.

With a 250kg safe working load (SWL), robust frame construction and antimicrobial vinyl upholstery, this hydraulic examination couch is designed to withstand frequent clinical use with minimal maintenance.

Hydraulic Height Adjustment

The Model 502H features hydraulic height adjustment, allowing healthcare professionals to raise or lower the couch without an electric lifting motor.

This makes it a practical choice for examination rooms where non-electric height operation is preferred.

The manufacturer's Model 502 datasheet specifies an approximate height range of 47cm to 97cm for the range, although it does not separately identify the hydraulic configuration's measurements.

Manually Adjustable Backrest

The two-section examination couch features a manually adjustable backrest with an adjustment range from -20° to +85°.

The raised backrest supports patients in sitting or semi-sitting positions, while the negative adjustment provides additional flexibility for appropriate prone examinations.

An anti-entrapment gas strut supports the backrest adjustment mechanism.

Robust Construction and 250kg Safe Working Load

The Plinth Medical Model 502H is designed to provide strength and stability during regular clinical use.

Its 250kg safe working load and lifting capacity accommodate a broad range of patients, while the rigid frame construction supports routine examinations and treatment procedures.

The manufacturer states an average product lifespan of 16 years, reflecting its intended use in demanding healthcare environments.

Antimicrobial Vinyl Upholstery

The Model 502H features hardwearing antimicrobial vinyl upholstery with comfortable foam padding.

The vinyl has been independently tested for effectiveness in reducing the spread of MRSA, E. coli and similar bacteria and fungi.

It is phthalate-free, flame retardant to CRIB 5 and has achieved a rating of 1,000,000 Martindale rubs without damage or marking to the top layer.

These properties make the upholstery suitable for healthcare environments where regular cleaning and long-term durability are important.

Retractable Wheel Base and Hoist Clearance

A retractable wheel base allows the examination couch to be repositioned within the treatment room when required.

An adjustable foot helps maintain stability on uneven floor surfaces.

With 13cm clearance beneath the frame, the Model 502H also provides access for compatible mobile patient hoists.

Designed for Professional Healthcare Environments

The Plinth Medical Model 502H Hydraulic Examination Couch is suitable for outpatient departments, GP surgeries, health centres, rehabilitation facilities, colleges, universities and private clinics.

Its hydraulic height adjustment, manually adjustable backrest and durable upholstered surface make it a practical choice for healthcare professionals carrying out frequent examinations and treatments.

Designed and manufactured in the UK, the couch combines robust construction with practical features for daily clinical use.

Medical Device Standards and Compliance

The Plinth Medical Model 502H is classified as a Class I medical device under the applicable UK and EU medical device regulations.

The manufacturer specifies flame-retardant vinyl and foam upholstery materials meeting CRIB 5 requirements.

The couch is UKCA and CE marked, and Plinth Medical Ltd is externally audited to ISO 9001:2015.

The IEC 60601-1 electrical standard and IP ratings stated in the shared datasheet have not been attributed specifically to this hydraulic configuration.
