Plinth Medical Model 502E 2-Section Treatment couch - Electric

The Plinth Medical Model 502E Electric 2-Section Examination Couch is a UK-manufactured examination couch designed for busy hospital departments, GP surgeries, health centres and private clinics. Its electric height adjustment and manually adjustable backrest provide a flexible examination surface for routine clinical procedures.

With a 250kg safe working load (SWL), robust construction and antimicrobial vinyl upholstery, this electric examination couch is designed for frequent professional use with minimal maintenance.

Electric Height Adjustment

The Model 502E features electric height adjustment, allowing healthcare professionals to raise or lower the examination surface to suit patient access and different working positions.

The manufacturer's Model 502 datasheet specifies an approximate height range of 47cm to 97cm, providing a low transfer height and flexibility for practitioners during examinations and treatments.

A footswitch is available as an optional accessory for hands-free height adjustment.

Adjustable Backrest for Patient Positioning

The two-section design incorporates a manually adjustable backrest with an adjustment range from -20° to +85°.

The raised backrest supports patients in sitting or semi-sitting positions, while the negative adjustment provides additional flexibility for appropriate prone examinations.

This makes the couch suitable for a variety of clinical procedures requiring different patient positions.

Strong and Stable Construction

The Plinth Medical Model 502E is designed for regular, demanding use in professional healthcare environments.

Its 250kg safe working load and lifting capacity provide support for a broad range of patients, while the robust frame offers strength and stability during examinations.

An anti-entrapment gas strut supports the manually adjustable backrest mechanism.

Antimicrobial Vinyl Upholstery

The Model 502E features hardwearing antimicrobial vinyl upholstery with comfortable foam padding.

The vinyl has been independently tested for effectiveness in reducing the spread of MRSA, E. coli and similar bacteria and fungi.

It is phthalate-free, flame retardant to CRIB 5 and has achieved a rating of 1,000,000 Martindale rubs without damage or marking to the top layer.

These properties make the upholstery suitable for high-traffic healthcare environments where regular cleaning and durability are important.

Retractable Wheel Base and Hoist Clearance

The retractable wheel base allows the examination couch to be repositioned around the treatment room when required.

An adjustable foot helps maintain stability on uneven floor surfaces, while 13cm clearance beneath the frame provides access for compatible mobile patient hoists.

These features support practical patient handling and room positioning.

Designed for Professional Healthcare Environments

The Plinth Medical Model 502E Electric Examination Couch is suitable for outpatient departments, GP surgeries, health centres, rehabilitation facilities, colleges, universities and private clinics.

Its electric height adjustment, manually adjustable backrest and durable upholstery make it a practical choice for facilities carrying out frequent patient examinations and treatments.

The couch is designed and manufactured in the UK, with a manufacturer-stated average lifespan of 16 years.

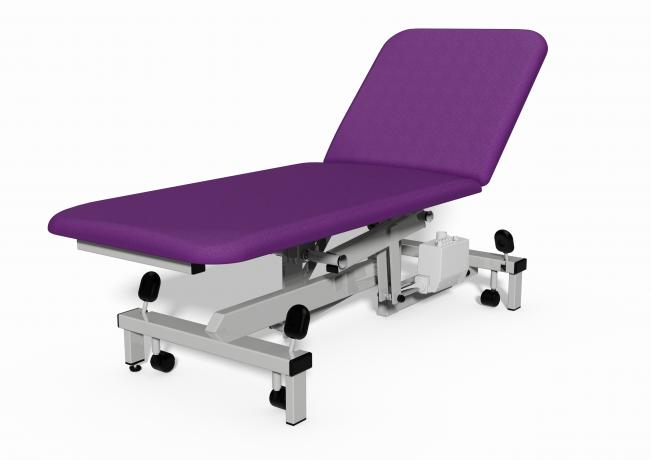

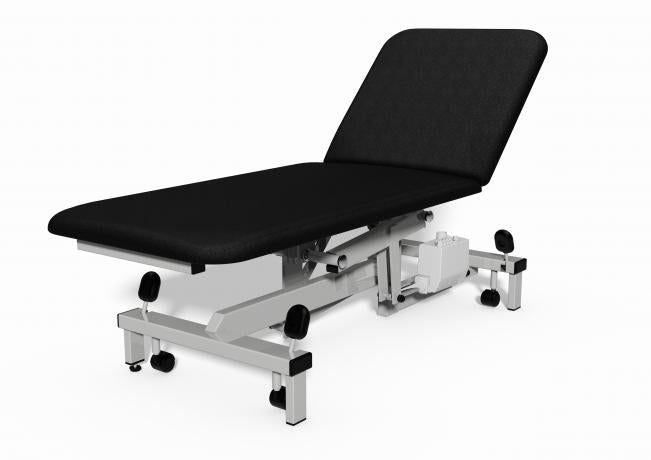

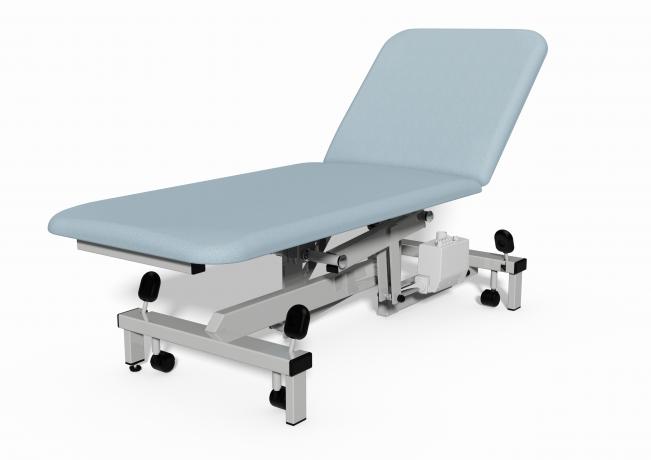

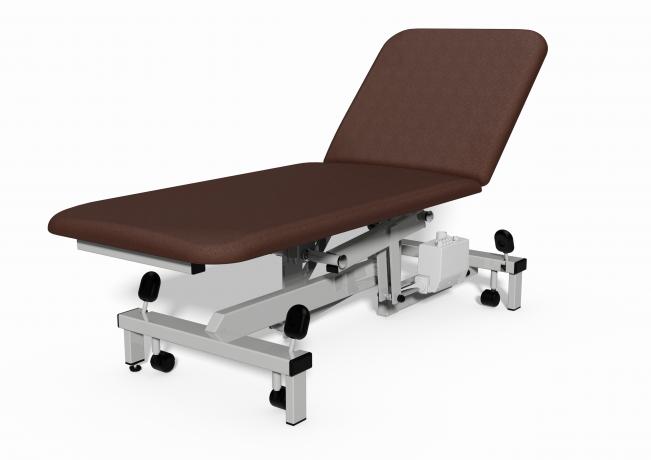

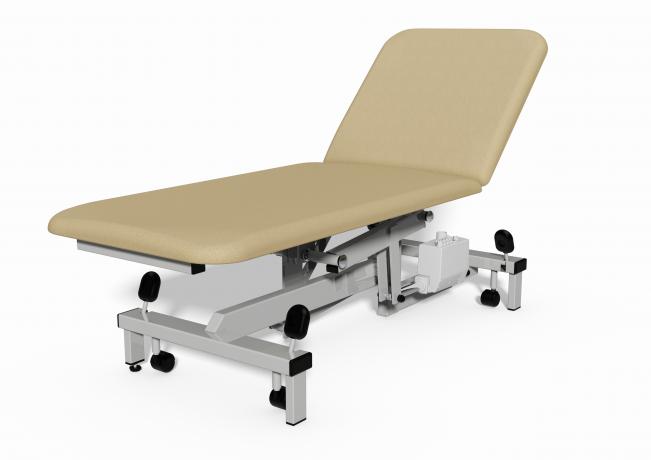

Upholstery Colour Options

The Model 502E is available in a wide selection of upholstery colours to complement different healthcare environments.

Medical Device Standards and Compliance

The Plinth Medical Model 502E is classified as a Class I medical device under the applicable UK and EU medical device regulations.

The manufacturer specifies IEC 60601-1 as the electrical standard, with an IP rating of IPX6 or IPX4 depending on the selected options.

The upholstery materials meet the manufacturer's stated CRIB 5 flame-retardancy requirements.

The couch is UKCA and CE marked, and Plinth Medical Ltd is externally audited to ISO 9001:2015.
