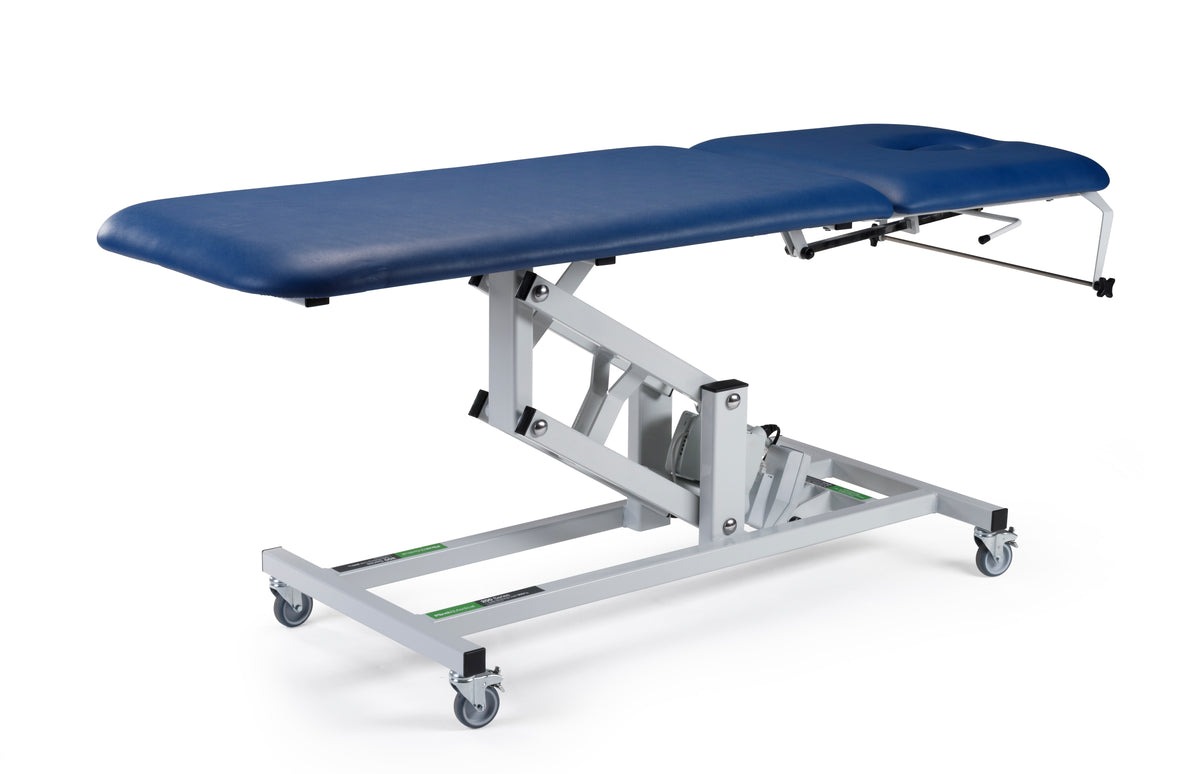

Plinth Medical 2-Section Treatment Couch - Electric

The Plinth Medical Model 202 Electric 2-Section Examination Couch is a UK-manufactured examination couch designed for GP surgeries, health centres and other professional healthcare environments. Its electric height adjustment, manually adjustable backrest and comfortable upholstered surface make it suitable for routine patient examinations and minor treatment procedures.

With a 200kg safe working load (SWL), low patient transfer height and practical clinical features, this examination couch provides a versatile and dependable solution for everyday healthcare use.

Electric Height Adjustment

The Model 202 features simple push-button electric height adjustment, allowing practitioners to select a suitable working height between 51cm and 94cm.

The low minimum height of 51cm supports patient access and transfers, while the adjustable working height helps healthcare professionals position the couch appropriately for different examinations and procedures.

Adjustable Backrest for Patient Positioning

The two-section design includes a manually adjustable backrest with a friction-locking mechanism.

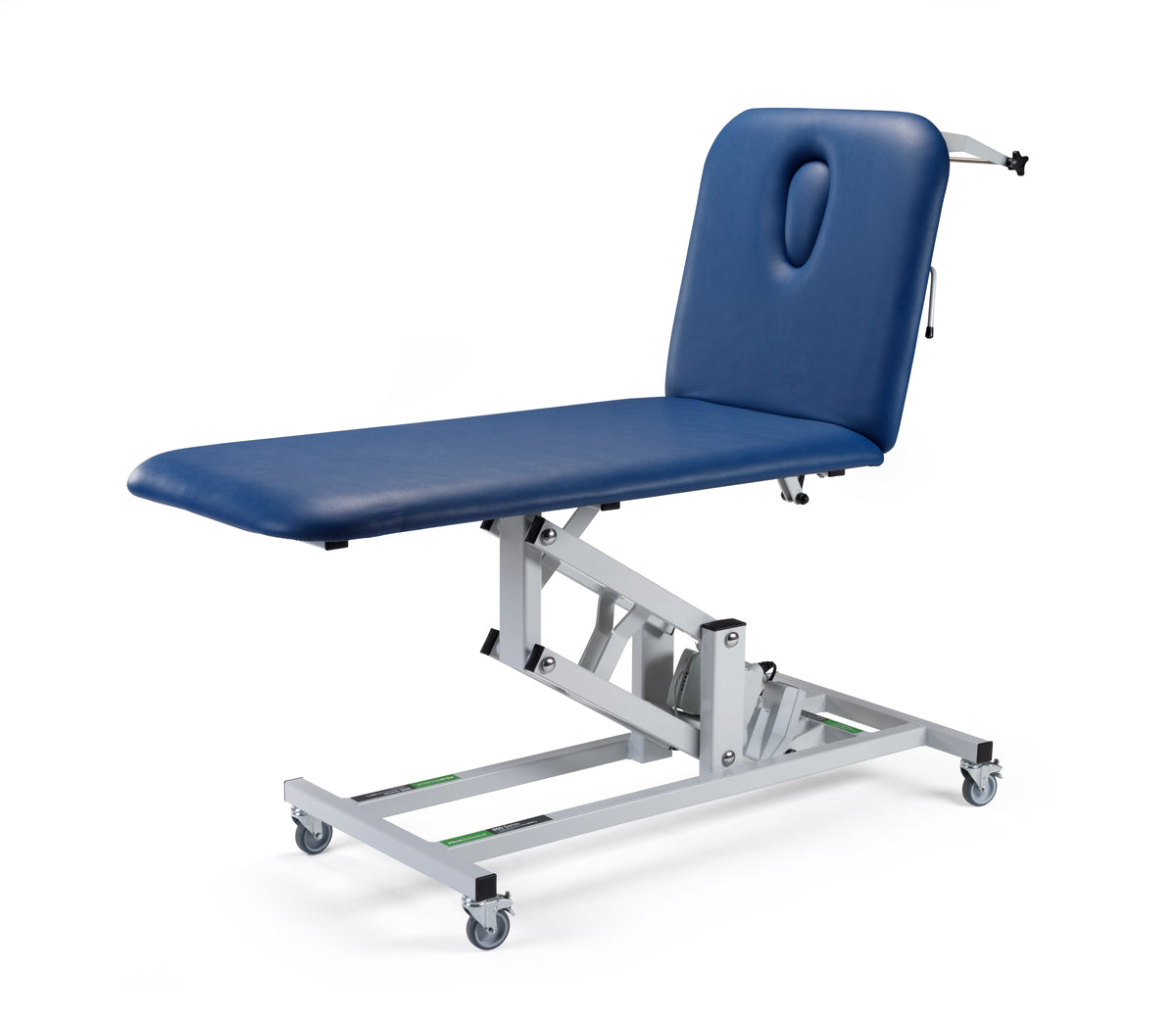

The backrest can be raised to +70° to support patients in sitting or semi-sitting positions, making it suitable for a variety of clinical examinations.

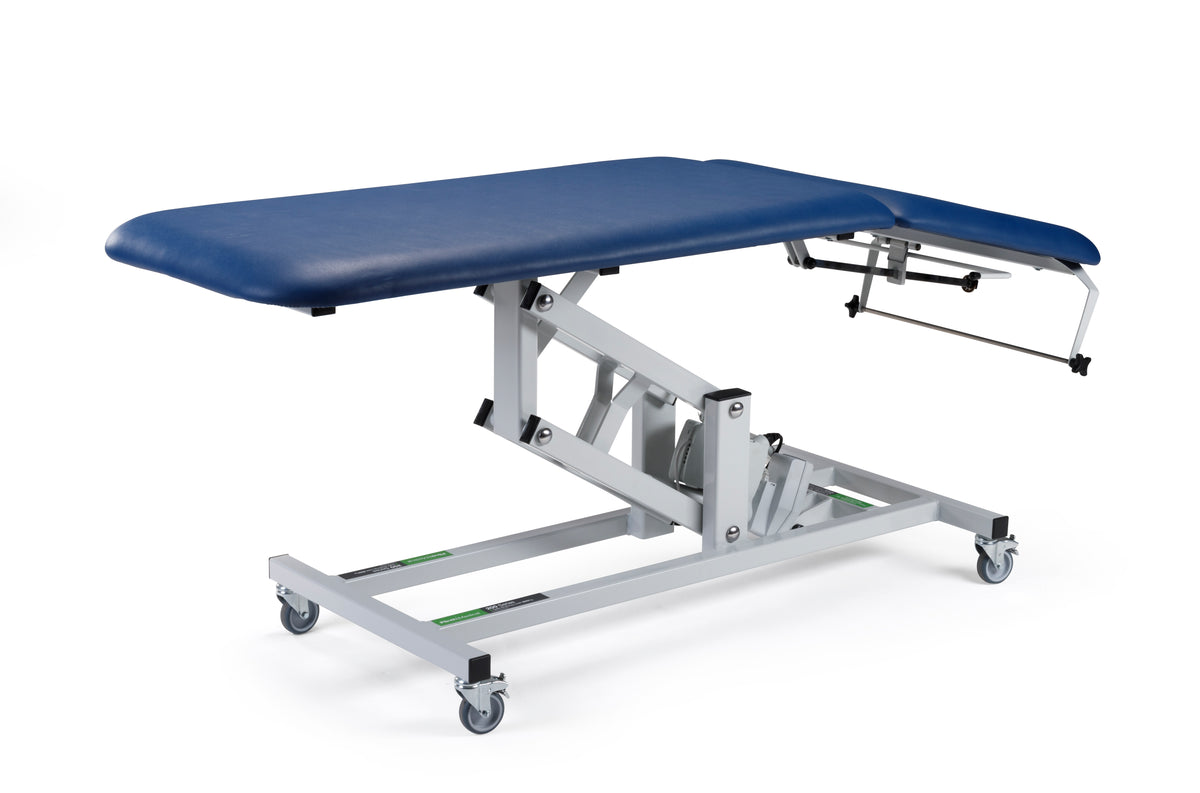

It can also be lowered to -15° for prone treatments, providing additional positioning flexibility.

Breathing Hole and Plug

An integrated breathing hole and removable plug are included as standard.

The breathing hole provides a practical feature for patients positioned face down during appropriate examinations or treatments.

When not required, the plug can be fitted to provide a continuous upholstered surface.

Antimicrobial Vinyl Upholstery

The Plinth Medical Model 202 features easy-clean antimicrobial vinyl upholstery with comfortable foam padding.

The vinyl has been independently tested for its effectiveness in reducing the spread of MRSA, E. coli and other similar bacteria and fungi.

It is also phthalate-free and flame retardant to CRIB 5, making it suitable for professional healthcare environments.

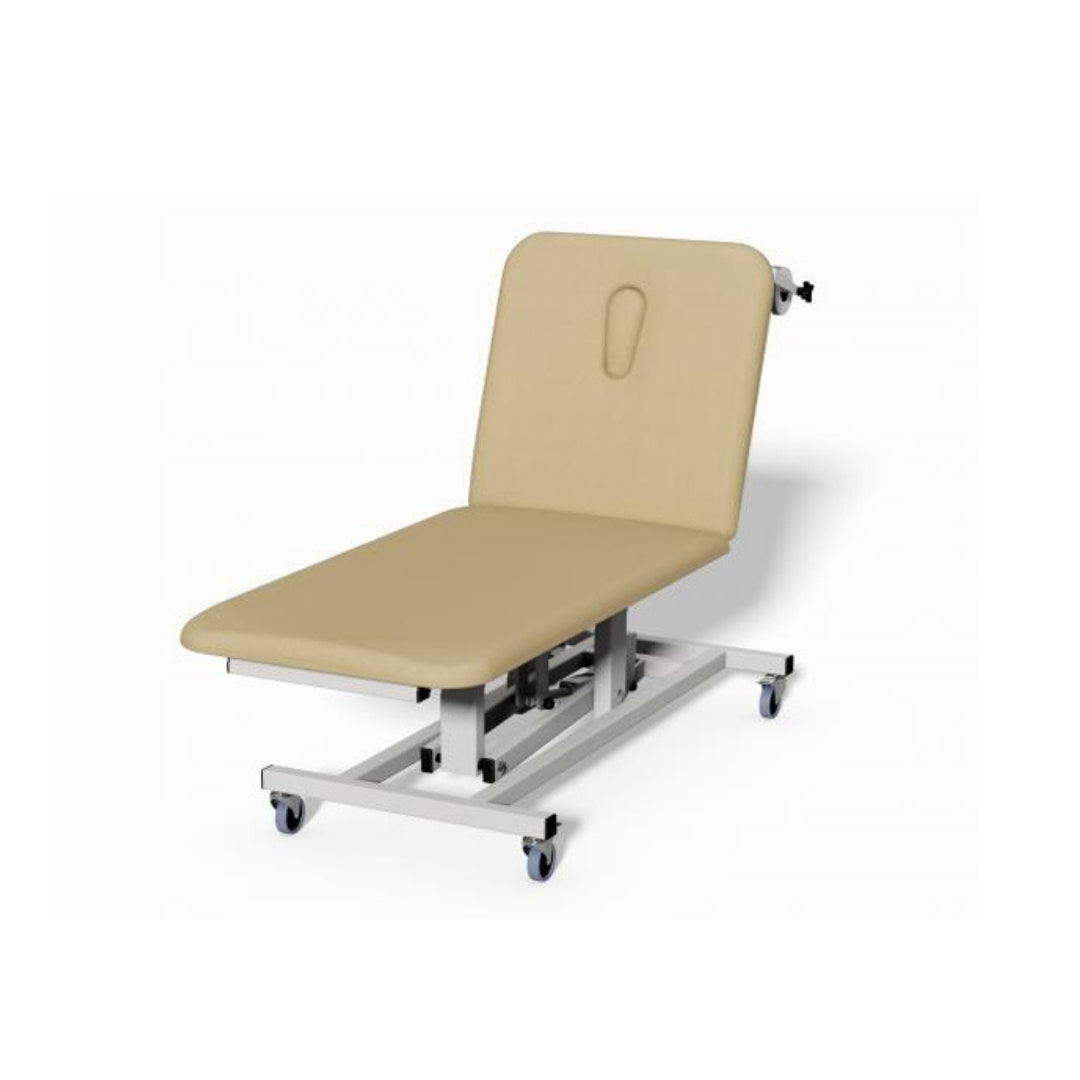

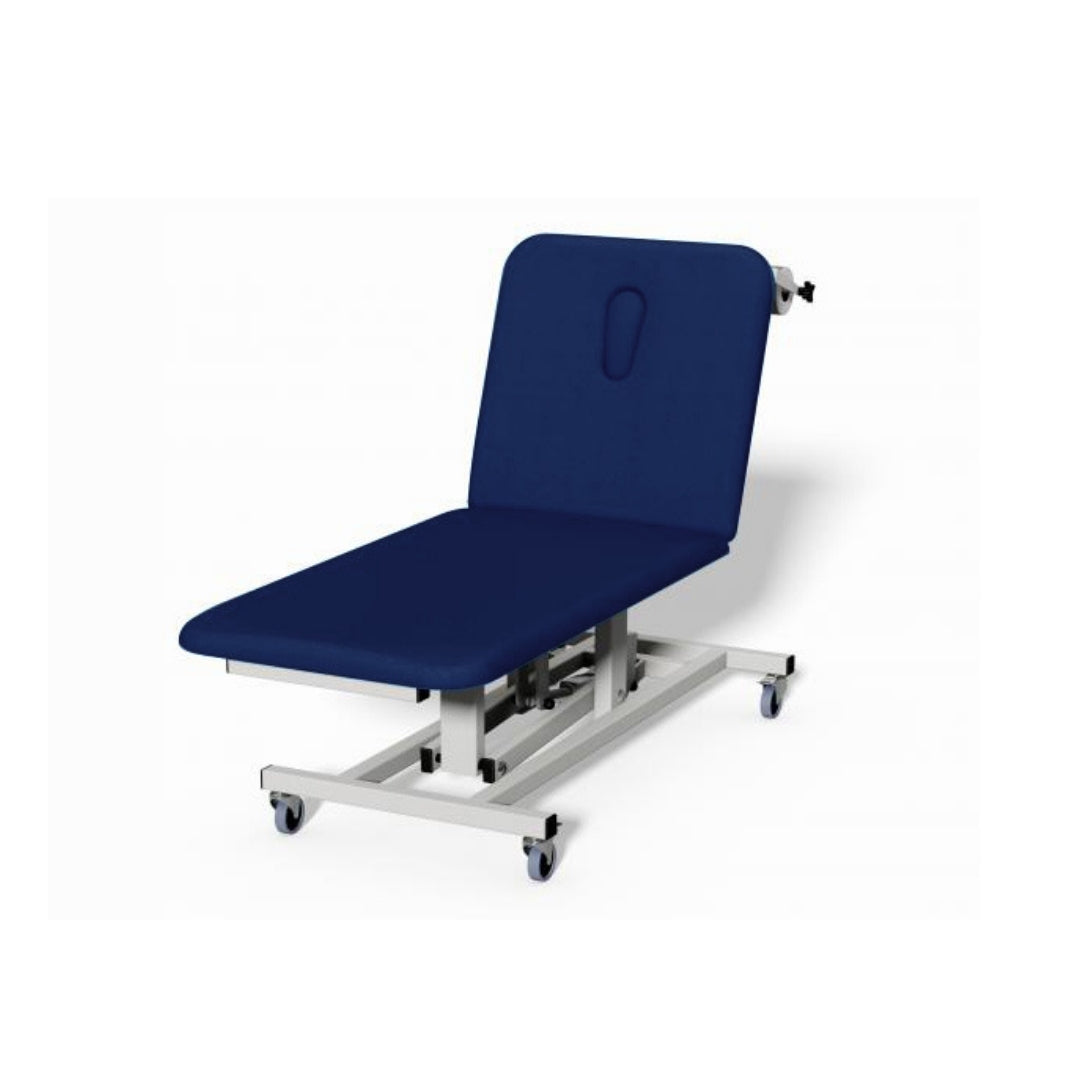

The couch is available in three upholstery colours: dark blue, mid blue and beige.

Toe-Braked Castors and Mobile Hoist Access

The examination couch features a manually operated toe-braked wheel base, allowing staff to reposition the couch when required and secure it during use.

With 13cm of clearance beneath the frame, the Model 202 also provides space for compatible mobile patient hoists.

This combination supports practical room positioning and patient handling within suitable clinical environments.

Integrated Paper Roll Holder

A paper roll holder is fitted as standard, allowing disposable couch roll to be positioned conveniently for patient examinations.

Using disposable couch roll helps protect the upholstered surface and supports routine hygiene procedures between patients.

Designed for GP Surgeries and Health Centres

The Plinth Medical Model 202 is designed for regular use in GP surgeries, health centres and other clinical treatment environments.

Its combination of electric height adjustment, a two-section treatment surface, manually adjustable backrest and easy-clean upholstery makes it suitable for routine examinations and minor procedures.

The couch is designed and manufactured in the UK, providing access to manufacturer support and replacement parts.

Medical Device Standards and Compliance

The Model 202 is classified as a Class I medical device under the applicable UK and EU medical device regulations.

The electric model is designed to the IEC 60601-1 electrical safety standard, with an IP rating of IPX6 or IPX4 depending on the options selected.

The upholstery and foam meet the manufacturer's stated CRIB 5 flame-retardancy requirements.

The couch is UKCA and CE marked, and Plinth Medical Ltd is externally audited to ISO 9001:2015.
