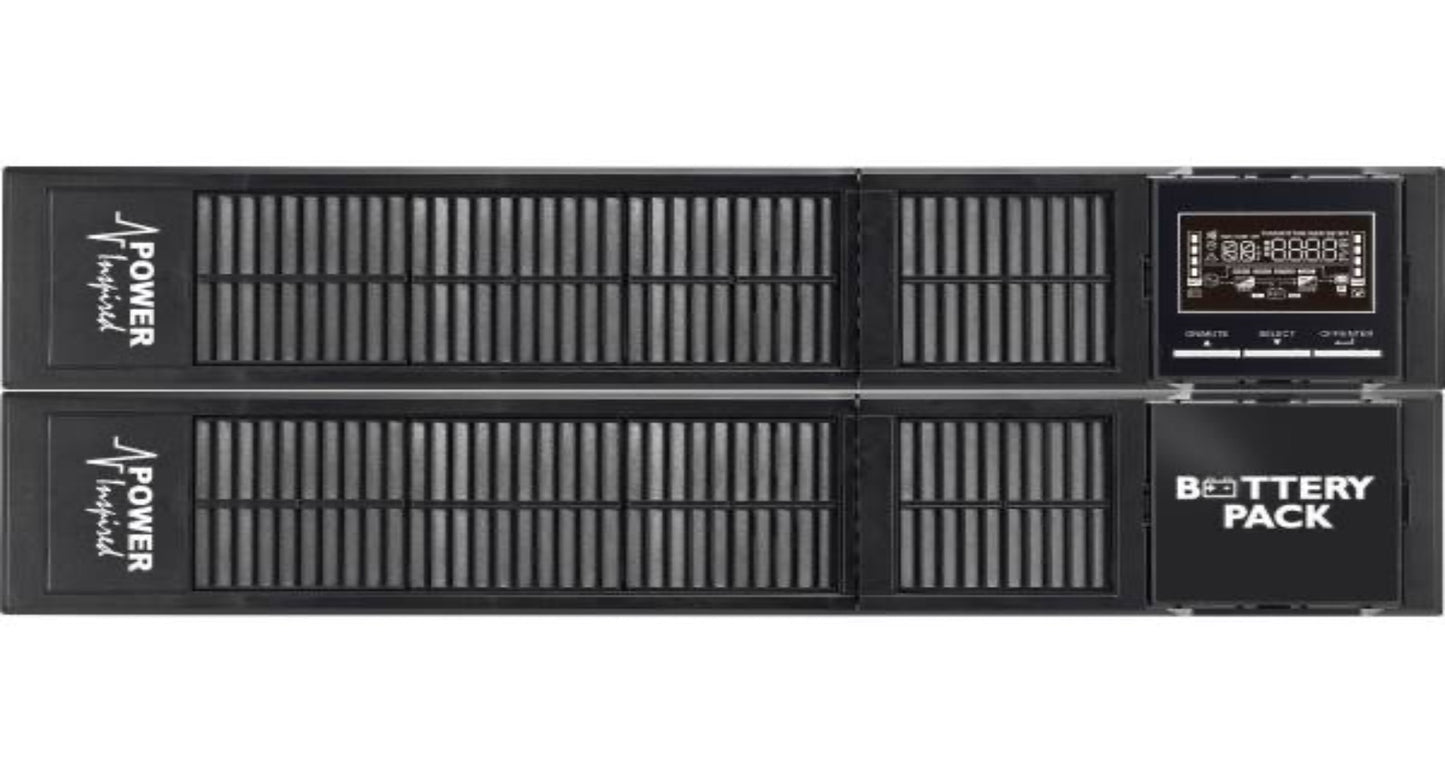

Vaccine Fridge UPS (Back up Battery in event of power cut) 1350W, 972Wh battery. Rack/Tower
Vaccine Fridge UPS (Back up Battery in event of power cut) 1350W, 972Wh battery. Rack/Tower
SKU:PF1350-972
Couldn't load pickup availability
Pharma Fridge UPS with 1350W rating to deal with high inrush fridges. Conformally coated PCB for higher reliability and environment suitability. Matching battery pack. High capacity charger. User changeable batteries.
Pharma Fridge UPS with 1350W rating to deal with high inrush fridges. Conformally coated PCB for higher reliability and environment suitability. Matching battery pack. High capacity charger. User changeable batteries.
- VFI (Online Double Conversion) Technology
- Matching Battery Cabs
- High Capacity Charger
- Adjustable Charge Current
- Adjustable Output Voltage
- Frequency Conversion Mode
- Intelligent Port for SNMP / Relay Options
- Rack/Tower Format
- Programmable Outlets
- Hot Swap Battery
- HID USB Interface
- Conformally Coated PCB
| Input | 162-290V 50/60Hz |
|---|---|
| Max Power (Watts) | 1350 |
| Technology | Online (VFI) |
| Inverter Waveform | Sinewave |
| Battery Capacity | 972 Watt-hours |
| Input Connector | IEC C14 |
| Output Connectors | 8xIEC C13 |
| Physical WxDxH mm | 410x438x176 |
| Weight (kg) | 44.0 |
Quick Power Reference Guide, this unit will power the below fridges for below estimated time in event of power cut*:
CMS125 Solid Door Undercounter fridge - 11 Hours
CMG125 Glass Door Undercounter fridge - 11 Hours
CMS300 Solid Door Free standing fridge - 11 Hours
CMG300 Solid Door Free standing fridge - 11 Hours
CMS400 Solid Door Free standing fridge - 9 Hours
CMG400 Glass Door Free standing fridge - 6 Hours
These units contain internal batteries. Refer to datasheet for type and quantity.
High Capacity Internal Charger for the quick and effective recharge of attached battery packs.
Has an Emergency Power Off port to allow rapid shutdown of UPS in the event of an emergency.
Human Interface Device USB Port. Attached computer can recognise UPS is attached and use operating system internal functions to act on UPS events without the need to install additional software.
Input and Output receptacles are IEC. UPS rated at 3KVA will have IEC320 C19 outlets and C20 inlet. Below this is C13/C14. Refer to datasheet for type and quantity for each model.
The unit contains an ″Intelligent Slot″ for the connection of either a relay card or a network SNMP card, but not both. The relay card allows the UPS to transmit status to a remote alarm panel or Building Management System, whereas the SNMP card allows monitoring of the UPS over a LAN or WAN network.
A comprehensive LCD not only displays UPS parameters but allows for UPS configuration and adjusting settings.
Has the ability to Load Shed by switching off a bank of output sockets after a set time, allowing runtime to be extended for critical devices.
The unit can be fitted into a standard server 19inch rack, but also can be mounted vertically. Support brackets are provided to do this. Additional battery cabs are provided with support extenders.
The unit inverter is sine wave for maximum application compatibility.
The unit batteries are contained within a removable battery tray allowing the batteries to be exchanged simply and quickly and in many cases without having to power down the load.
Online Double Conversion VFI (Voltage Frequency Independent) technology. Provides a fixed output voltage and frequency that can be adjusted and has no-break when changing between mains and battery operation.
PCBs are conformally coated providing moisture resistance, improving unit reliability, and suitability for more harsh environments.
- Mains Lead
- IEC C13/14 Loop Cable
- ViewPower Software CD
- USB Lead
- Rack Ears
- Vertical Support Brackets
- Battery Interconnect Cable
- Vertical Support Extenders
