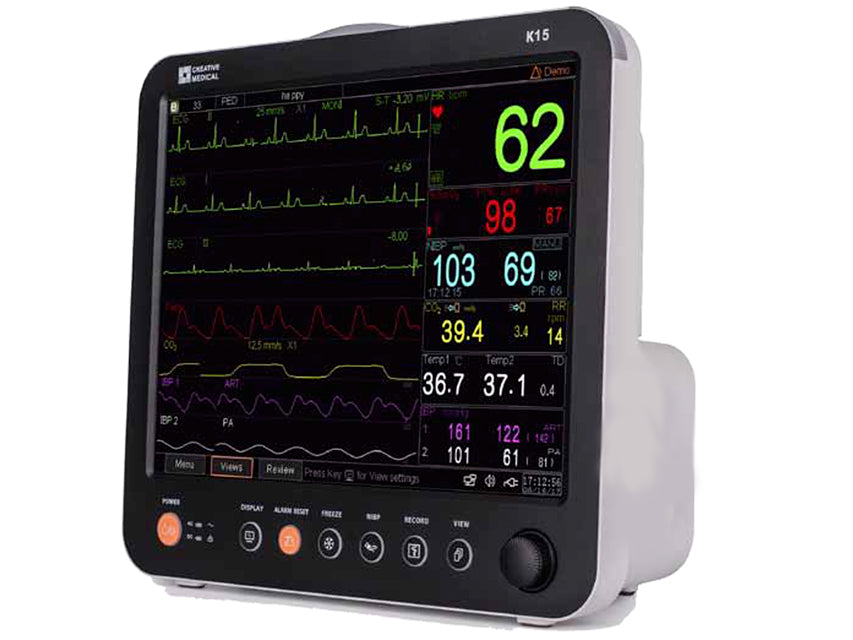

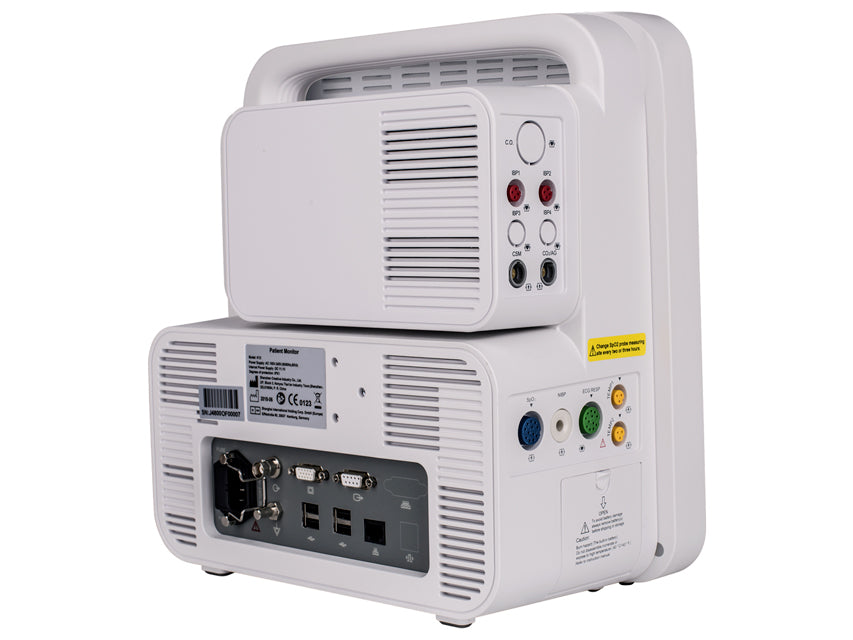

GIMA K15 TOUCHSCREEN 2 IBP + EtCO2 config. MULTIPARAMETER MONITOR
GIMA K15 TOUCHSCREEN 2 IBP + EtCO2 config. MULTIPARAMETER MONITOR
SKU:
Couldn't load pickup availability
Lead times may apply with international shipping
K15 TOUCHSCREEN 2 IBP* MULTIPARAMETER MONITOR 15"
*Invasive Blood Pressure (IBP) is a direct measurement of the patient's arterial or venous blood pressure. A catheter is used and inserted directly into a vein, artery or other pressure access areas, and is connected to a pressure transducer for measuring systolic, diastolic and mean blood pressures. The device can display the systolic, diastolic and mean blood pressures and a waveform for each pressure channel.
Multi-functional patient monitors, designed for monitoring the vital physiological signs of adult, pediatric and neonate patients.
With the functions of real-time recording and displaying parameters, such as ECG, heart rate (HR), non-invasive blood pressure (NIBP), oxygen saturation (SpO2), respiration (RESP), temperature (TEMP), it allows comprehensive analysis of patient's physiological conditions.
- ergonomic design with intuitive user interface
- USB socket for data transfer and software upgrade
- 9 traces on-screen waveforms
- Windows style display view, easy to operate
- visual and audible alarm for physiological and technical alarms
- large capacity storage
- suitable for use with original Nellcor sensors
- protection against defibrillator discharge, resistance against the interference from electro-surgical unit; cardiac pacemaker pulse detection and inhibition.
Internal software: GB, DE, FR, PT, ES, IT, PL, TR, RU.
PC software only GB.
360° degree visible indicator with 3 level alarm.
Lithium battery up to 2.5 hours continuous monitoring.
| Standard accessories |
| - Adult SpO2 probe - NIBP adult cuff - SpO2 extension cable - ECG cable - Skin temperature probe - Power supply cable - Re-chargeable lithium battery - Dust-protective cover - Disposable electrode - Manual: GB, FR, IT, ES, PL, RU - 2 IBP module, cable, sensor |
| Technical Specifications |
| ECG • Input dynamic range: ±(0.5~5 mVp) • Differential input impedance: =10 mO • Bandwidth: - 0.05~150 Hz (diagnostic) - 0.5~40 Hz (monitoring) - 1~20 Hz (operation) • CMRR: - =90 db (diagnostic) - =105 db (monitoring & operation) • Sensitivity selection: ×1/4, ×1/2, ×1, ×2, ×4 and Auto • Sweeping speed: 6.25 mm/s, 12.5 mm/s, 25 mm/s, 50 mm/s • HR measuring range: 15~350 bpm ±1% or ±2 bpm, whichever is greater • Pacemaker pulse detection and rejection function RESP • Measuring range: 0~120 rpm ±5% or ±2 rpm, whichever is greater TEMP • Measuring range: 21.0~50.0 °C ±0.2 °C from 25~45 °C NIBP • Technique: oscillometric method • Typical measurement time: <30 seconds (adult cuff) • NIBP measuring range SYS: - 40~275 mmHg (Adult) - 40~200 mmHg (Pediatric) - 40~135 mmHg (Neonate) • NIBP measuring range DIA: - 10~210 mmHg (Adult) - 10~150 mmHg (Pediatric) - 10~95 mmHg (Neonate) • NIBP measuring range MAP: - 20~230 mmHg (Adult) - 20~165 mmHg (Pediatric) - 20~110 mmHg (Neonate) • NIBP measuring accuracy: - Mean difference: ±5 mmHg - Standard deviation: 8 mmHg • NIBP measurement mode: Manual, Auto, Stat, Multi-cycle mode • Auto measuring intervals: 1-480 min SpO2 • Technique: Dual-wavelength optical method • Measuring range: 0%~100% ±2% for Spo2 range 70~100% • PR measuring range: 30~250bpm ±2bpm or ±2%, whichever is greater • Low perfusion performance: as low as 0.3%. CO2 • Technique: infrared optical method • Sampling mode: Sidestream or mainstream • Measuring range: 0~150 mmHg • Measuring accuracy: - 0~40 mmHg ±2 mmHg - 41~70 mmHg ±5% of reading - 71~100 mmHg ±8% of reading - 101~150 mmHg ±10% of reading • Flow rate: 50 ml/min ±10 ml/min (Sidestream) IBP • Technique: Strain gauge transducer • Input sensitivity: 5 µV/V/mmHg • Measuring range: -50~300 mmHg ±2% or ±4 mmHg, whichever is greater • Measuring positions: ART, RAP, PA, LAP, CVP, ICP, AUXP1, AUXP2 • Calibration: zero calibrating Other specifications • Power supply: AC 100-240 V, 50/60 Hz, 60 VA • Built-in lithium battery: 11.1V/4400 mah • Display: 15 inch TFT display • Alarming method: 3 levels audible-visible alarm • Networking: Ethernet • Safety standard: IEC 60601-1 |
