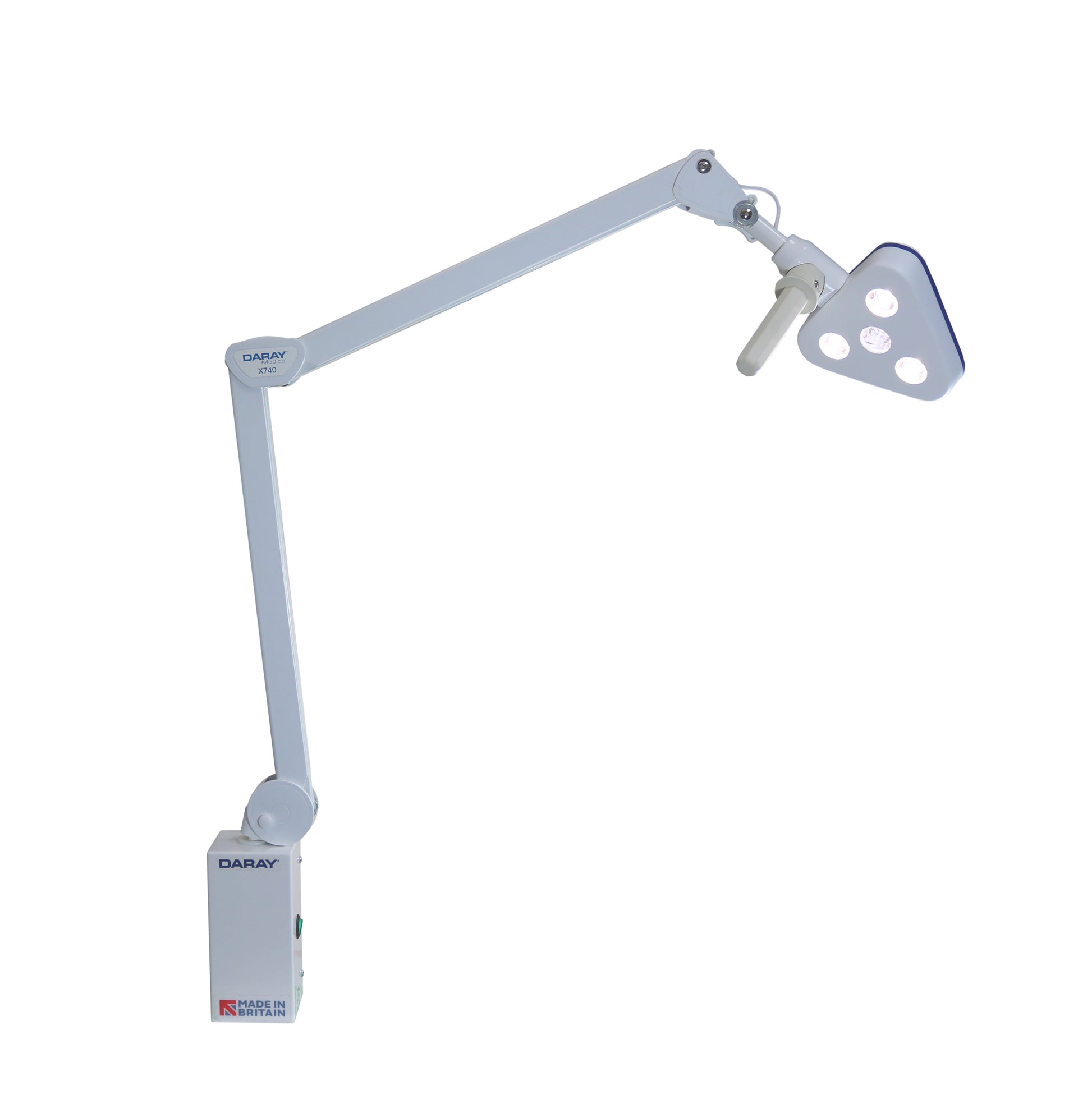

Daray - X740 Examination light - hardwired

Hardwired specifications are special order products

Product Properties

• A strong beam of light with an even intensity across the entire light field diameter for clearer viewing and reduced eye strain
• Variable intensity and colour temperature controlled directly from the light-head
• Telescopic ceiling tube - extremely versatile
• Spring-balanced arm with excellent range of movement
• 1000mm reach - ideal for gynaecological examinations
• No more bulbs to change - reduces waste by 95% over the light's lifetime
• All metal chassis and light-head is hardwearing and can be fully recycled
• No halogen, mercury, cadmium, lead, CFCs or chemicals harmful to the environment
• DARAY's LED technology has an intense clear white light running at just 16W (equivalent to 75W halogen)
• Costs up to 75% less to run than halogen
• 50,000 hours of life from the LED light engine (based on 5½ hours use per day)

The DARAY X740 examination light is both powerful and incredibly flexible, featuring variable colour adjustment.

Utilising LED technology, the general examination light has been developed to provide an intense beam with excellent colour rendering properties.
Daray X7 Series is available with a wide array of mounting options to ensure your light is exactly where you need it. Available in two arm options (flexible gooseneck or spring-balanced arm) and a large range of plug-top and hardwired mounting options to suit all clinical needs.
This model features a low total cost of ownership, costing up to 75% less to run than halogen lights. This light has around 40,000 hours of life from the LED light engine equating to around 20 years of clinical use. The X740 requires minimal maintenance and is an ideal light for GP surgeries and clinics where flexibility and performance are crucial.

Key Technical Data

Light Source: LED
Light intensity (lux) @ 0.5m: 80,000 ±5%
Light intensity (lux) @ 0.75m: 40,000 ±5%
Light intensity (lux) @ 1.0m: 20,000 ±5%
Light intensity adjustment range: 25 - 100%
Colour temperature: 3,600-5,000K (±500K)
Colour rendering index (CRI): 95
Colour rendering (R9): 95
Light field diameter (D50): @0.5m: 60mm
                                           @0.75m: 90mm
                                           @1m: 175mm
Light field diameter (D10): @0.5m: 110mm
                                           @0.75m: 150mm
                                           @1m:200mm
Number of LED's: 4
Power consumption: 16W 0.14A
Average working life: > 40,000 Hours
Input voltage: 100-240V AC 50/60 Hz
Output voltage: 12V DC 1A
Temperature rise on patient: ≤2°C
Warranty period: 5 Years
NHS e-class code: FBU, FKR
Commodity code: 9018 908400
GMDN code: 12276
