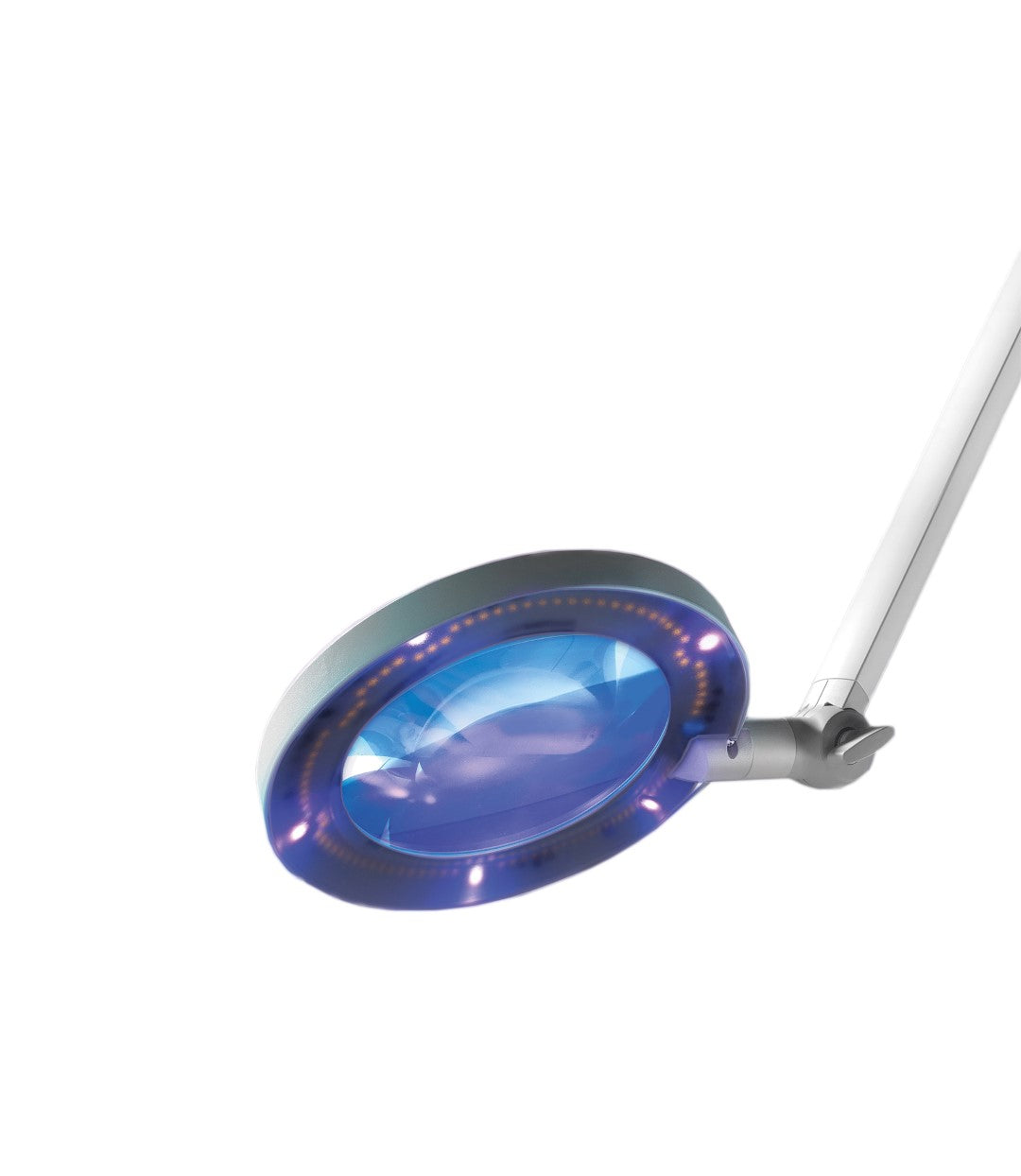

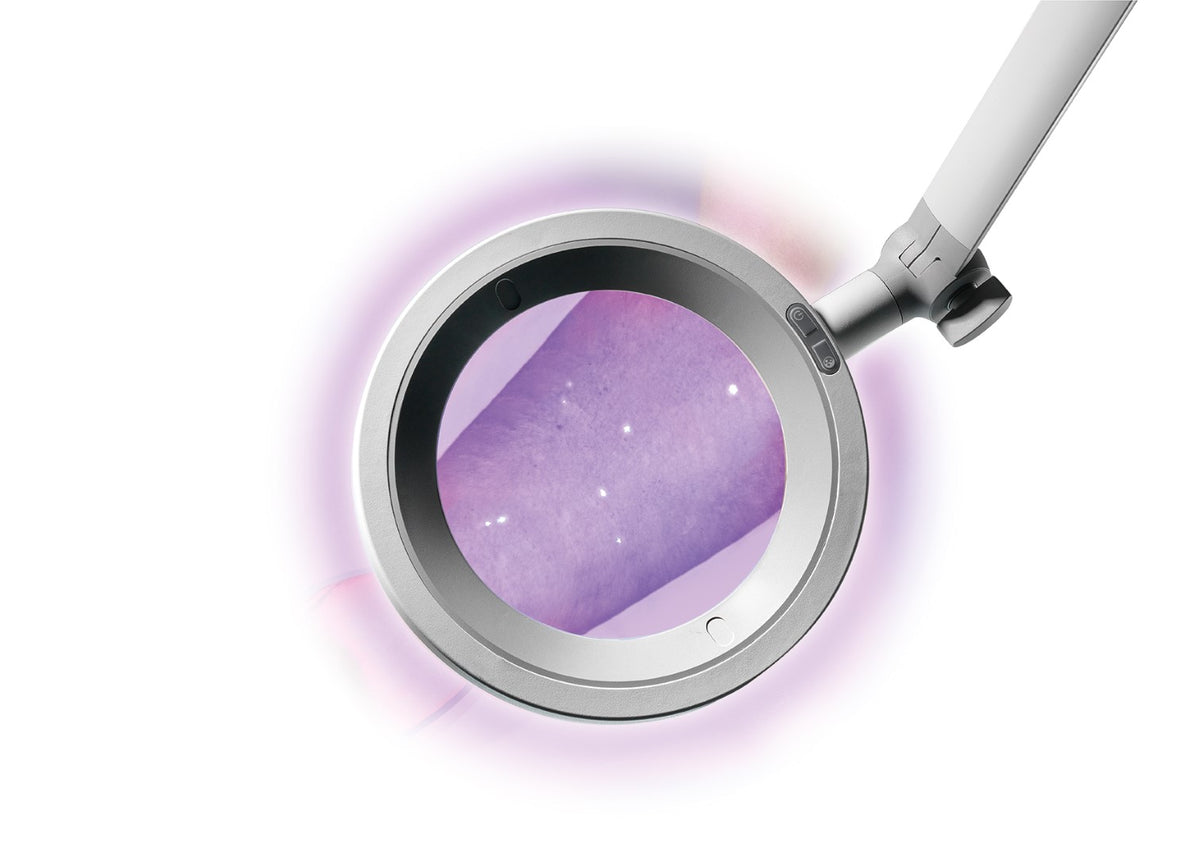

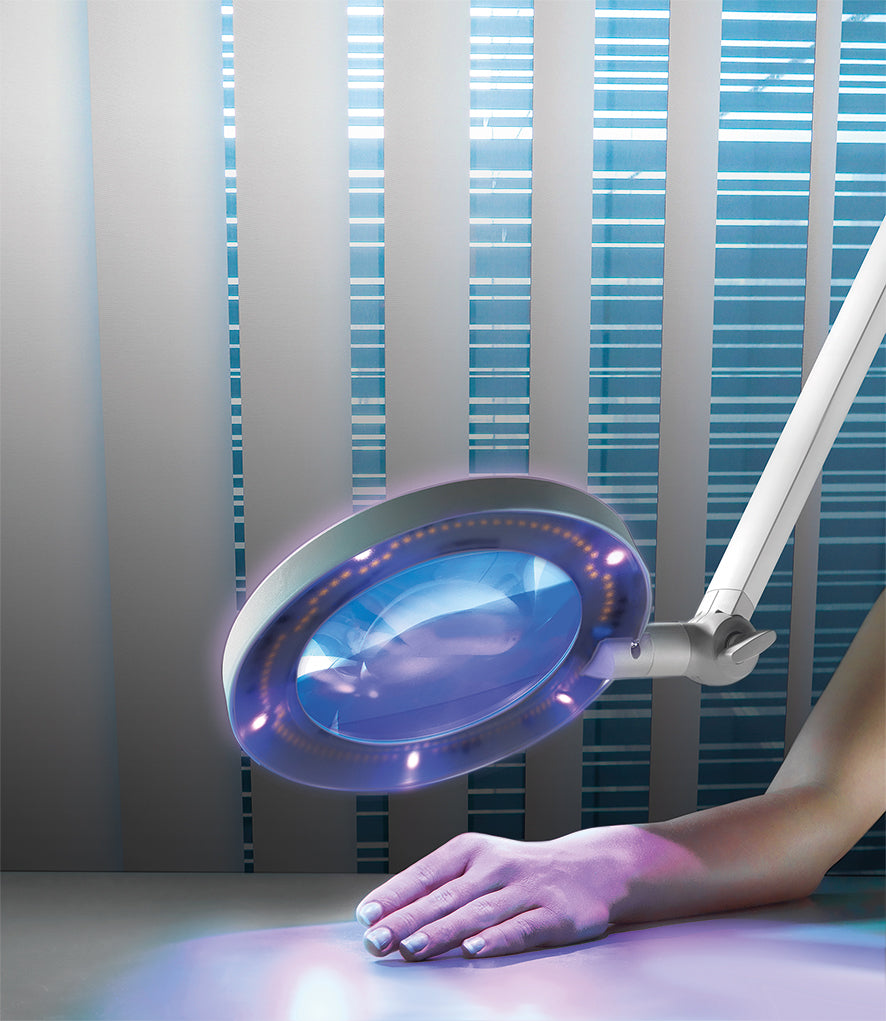

Brandon Medical - Optica LED Woods medical magnifier, dimmable with 160mm 3.5 diopter lens - multiple mount options

Brandon Medical - Optica LED Woods medical magnifier, dimmable with 160mm 3.5 diopter lens - multiple mount options

Regular price $1,269.00 USD
Regular price Sale price $1,269.00 USD
Sale Sold out
Shipping calculated at checkout.
Mount

SKU:OPTICAWDSD

Product Properties

Optica WDS Flexible Woods Light Magnifier with Optimal Colour for d

Large Magnification
The large magnifier diameter of 157mm combined with 1.9x (3.5dpt) magnification allows the user to focus on fine details through a large scale view.

Optimal Colour Rendering Properties
6,500°K LEDs ensure less shadow formation and optimal colour rendering.

Optional Woods Light
Optica comes with a medical device approved magnifier as standard, and there is an optional UV Woods light. The Woods light is ideal for dermatology and veterinary use.

Precise Colour Display
The exceptional Ra of >93 accurately displays the high quality of white light and the R9 value >90 describes how accurately the user can differentiate between red tissues.

CRI  Ra >93 R9 >90   R13 >95


Flexible Positioning
Reinforced friction joints and an aluminium spring balanced arm allows a broad reach of up to 142cm without the lamp head drifting. This allows smooth handling for users to examine typically harder to reach places with ease.

Optica Lens Cover
Durable lens cover protects the magnifier lens from any dust or potential scratches. Magnifiers can be a potential fi re risk if left in direct sunlight, the Optica lens cover aims to reduce this risk.

Key Features

General System Information OPTICAMDVT1C OPTICAMDVD OPTICAMDVM
OPTICAMDVW
Lamphead/Arm Type OpticaMDVT1
Mount Type Ceiling Mount Desk Mount Mobile Mount Wall Mount
System Weight (kg 8.2 2.5 10.1 2.2
Conformity CE (EU MDR 2017/745)
Type of luminaire Examination (Luminaire for diagnosis)
Medical Device Classification I
Electrical Classification I
Electrical conformity EN/IEC 60601-1; EN/IEC 60601-2-41; EN/IEC 60601-1-2
Additional Information Permanent Electrical
Connection Required
Power Lead supplied loose with UK plug
