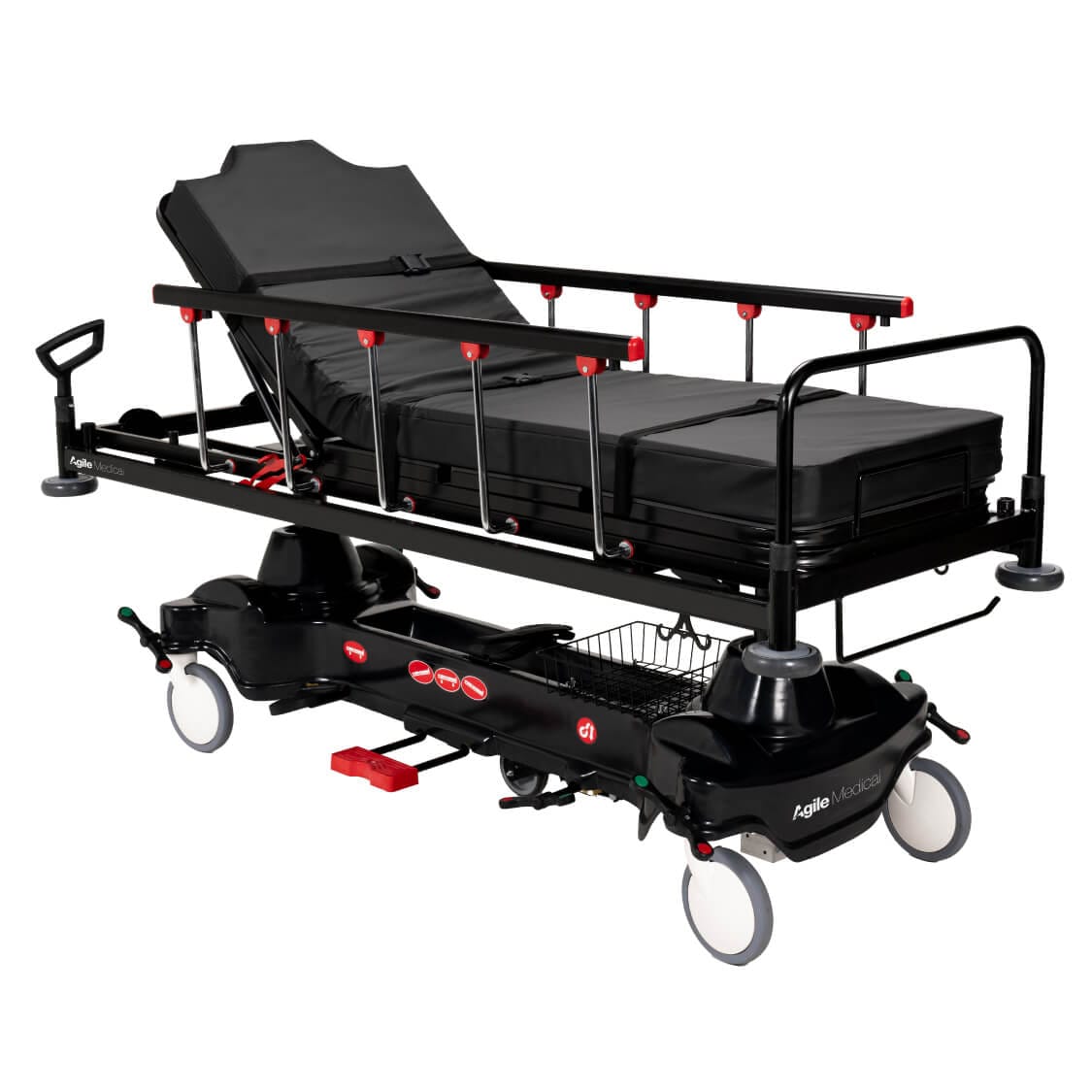

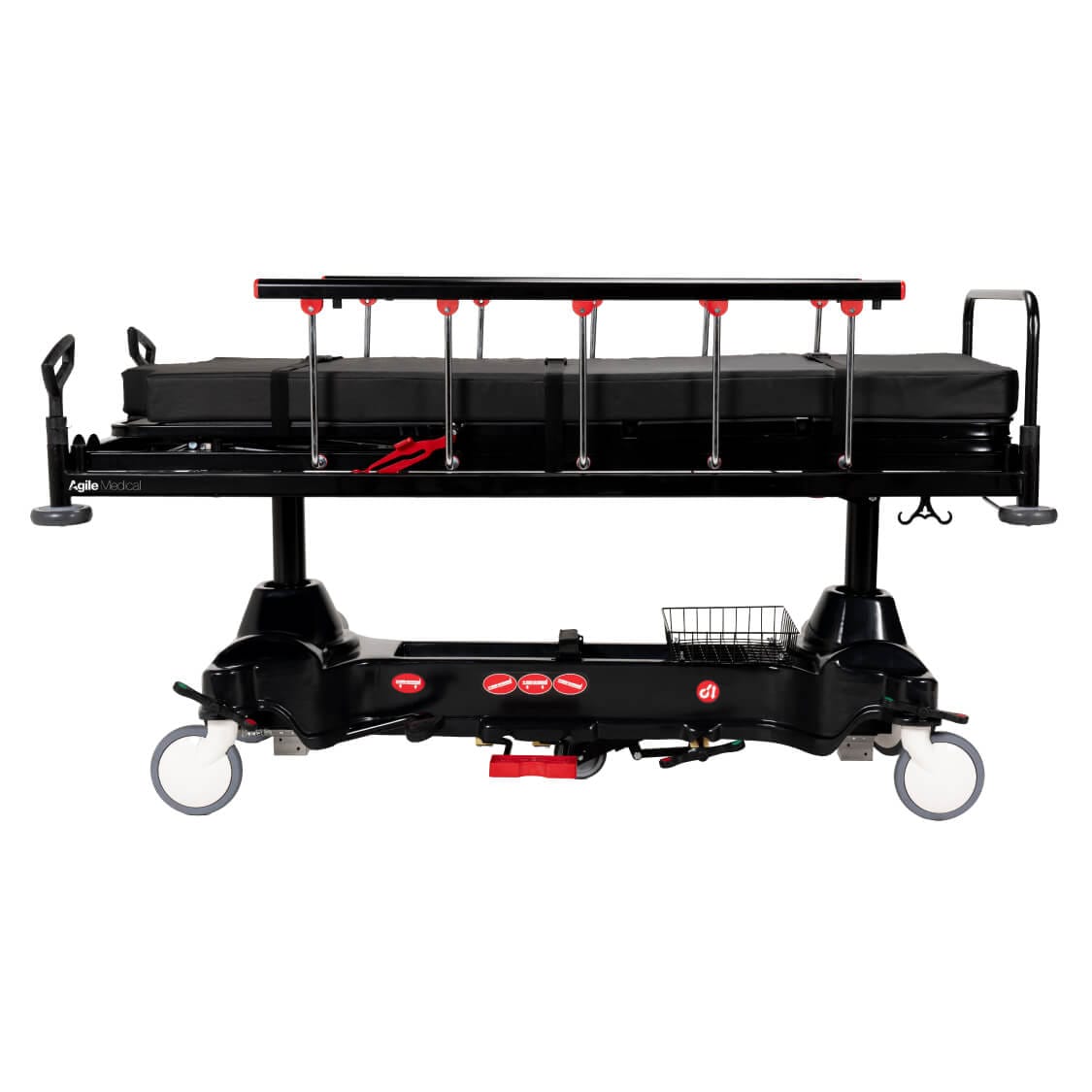

Burgess Emergency Stretcher Trolley

upporting efficient patient examination, diagnosis and treatment.

Providing reliability in emergency environments. Highly flexible patient positioning combined with X-ray capabilities, the Burgess stretcher trolley improves all aspects of patient management

Key features:

• Hydraulic height adjustment via dual-sided foot pedals
• Trendelenburg (-12°) and Reverse Trendelenburg (+12°) positions
• Backrest adjustment assisted by gas spring (0° – 70°)
• 5th Wheel for easy maneuverability
• X-Ray translucent, compact laminate mattress platform
• X-Ray cassette holder sliding under whole mattress platform
• Oxygen tank holder (12 liters)
• Retractable and foldable chrome plated side rails with locking mechanism
• Foldable pushing bars at both ends
• Shockproof, protective bumpers on each corner
• Electrostatic powder (epoxy) coated main frame
• Central brake pedals on each corner
• Height adjustable IV pole stand
• Paper roll holder
• Urine bag hanger hooks
• Anti-static and anti-tracing, 360° swivel castors
• 200mm castors with central braking mechanism and steer control
• 10cm thick mattress: removable, anti-static, fire-retardant and waterproof

Dimensions:
Length (mm) 2170, Width (mm) 840
Height (mm): 580-880
Mattress Surface: 620 x 1950 (mm)

Safe Working Load:
250kg
