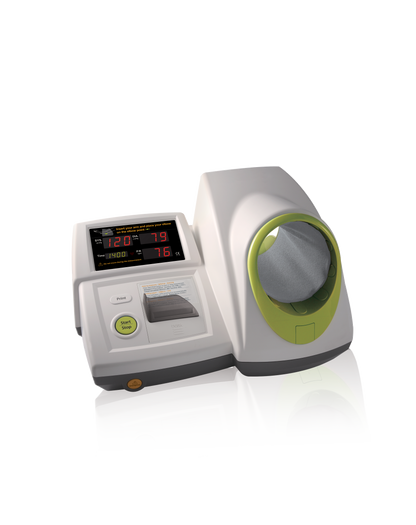

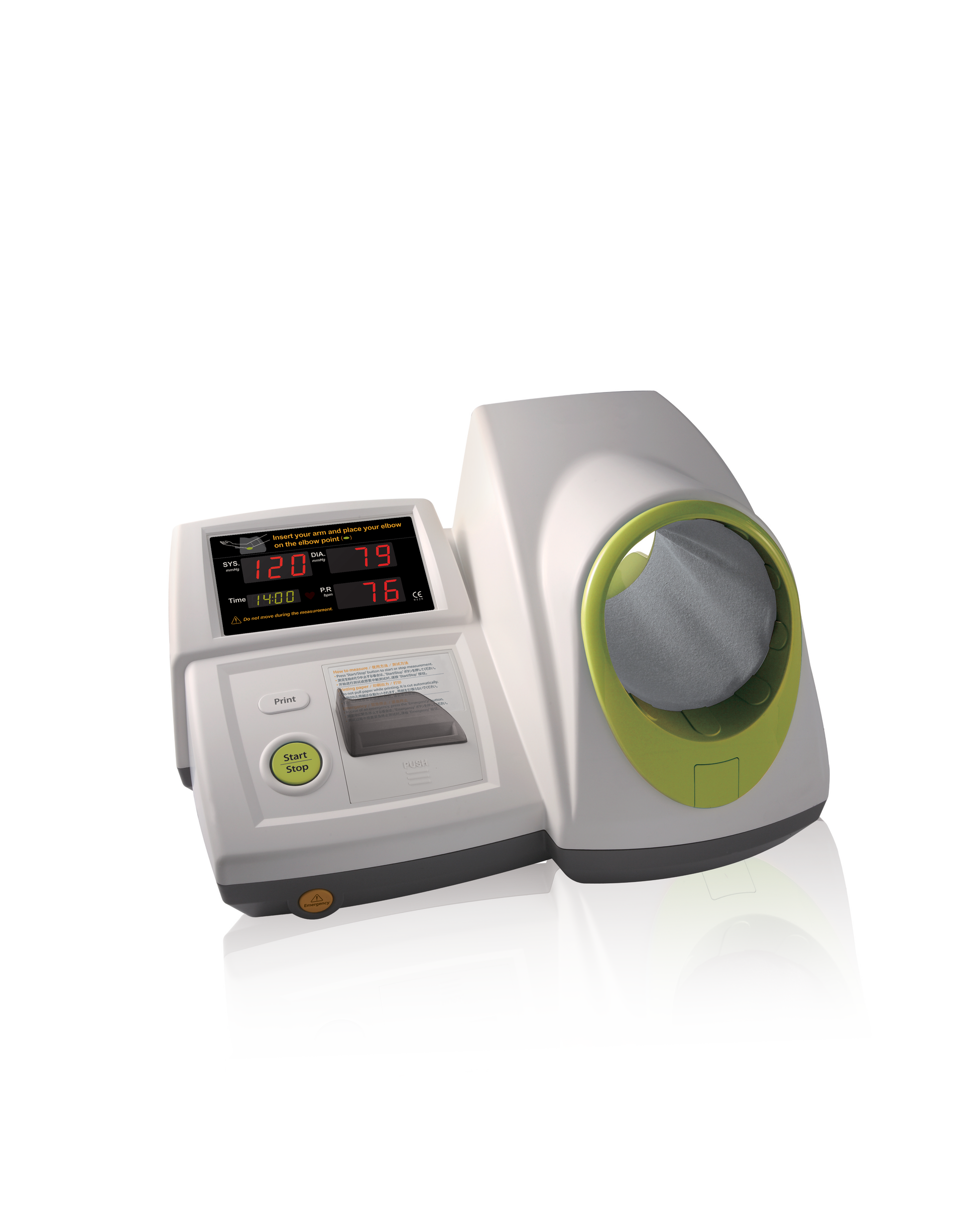

BPBIO 320 Blood Pressure Monitor

Automatic, Non-Invasive Blood Pressure Measurement

The BPBIO 320 is an accurate, fully automated and easy-to-use blood pressure monitor. The monitor features a voice-guided, single-step measurement process and an elbow sensor that allows you to be in the ideal position for testing.

These technologies ensure that you follow proper testing protocols each time for accurate readings.

Measures blood pressure by detecting oscillations during inflation. Systolic blood pressure can be recorded without overinflating the cuff higher than the true systolic pressure. This reduces unnecessary pressure the user may feel less pain while measuring.

The BPBIO 320 is auto-calibrated, space-efficient, and portable for convenient measurement with minimal effort. To enhance sanitary testing conditions, the BPBIO 320 is available with a disposable cuff barrier and contact-free testing guidelines.

With an intuitive design and voice guidance, users can measure their blood pressure in 45 seconds with the touch of a button. Choose from two result receipts with up to four outputs and a test history Result Sheet for easy tracking.

Product Dimensions
450 x 490 x 284 ( L x W x H ) : mm

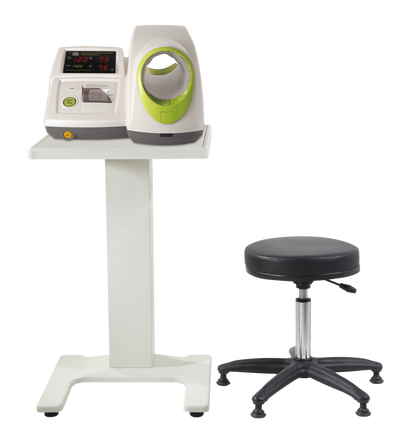

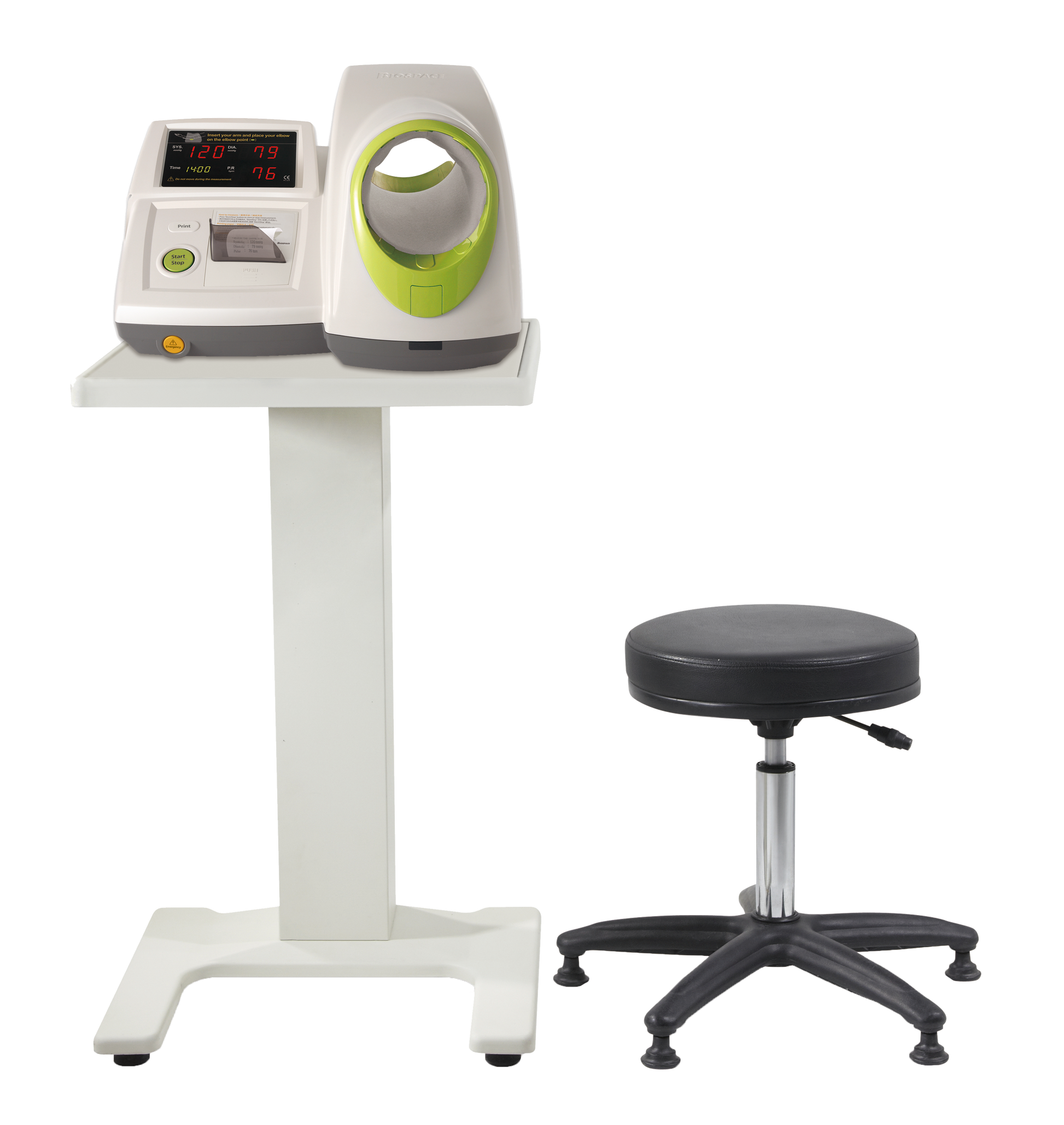

Stand Dimensions
381 x 460 x 820 ( L x W x H ) : mm

Measurement Method
Oscillometric

Display Unit
1mmHg

Test Duration
45 seconds

Measurement Range
0 – 300mmHg (Pressure)
30 – 240bpm (Pulse)

Product Weight
9 kg

Warranty
2 Year Manufacturer’s Warranty

Power Source
AC 100 – 240V, 50/60Hz

Display Type
7-Segment LED (Systolic, Diastolic, Time, Pulse)

Printer
High-speed thermal printer

Accuracy
± 2mmHG (Pressure), ± 1.5% (Pulse)

Cuff Size
Arm circumference: 18 – 42 cm

Outputs
Systolic Blood Pressure, Diastolic Blood Pressure, Pulse

Dual Safety System
[START/STOP] button: If the air pressure exceeds 300mmHg, the cuff will automatically deflate.
[EMERGENCY] button: The cuff will quickly deflate regardless of the pressure.

Type of Result Sheets
3-line high-speed printing or graph printing
