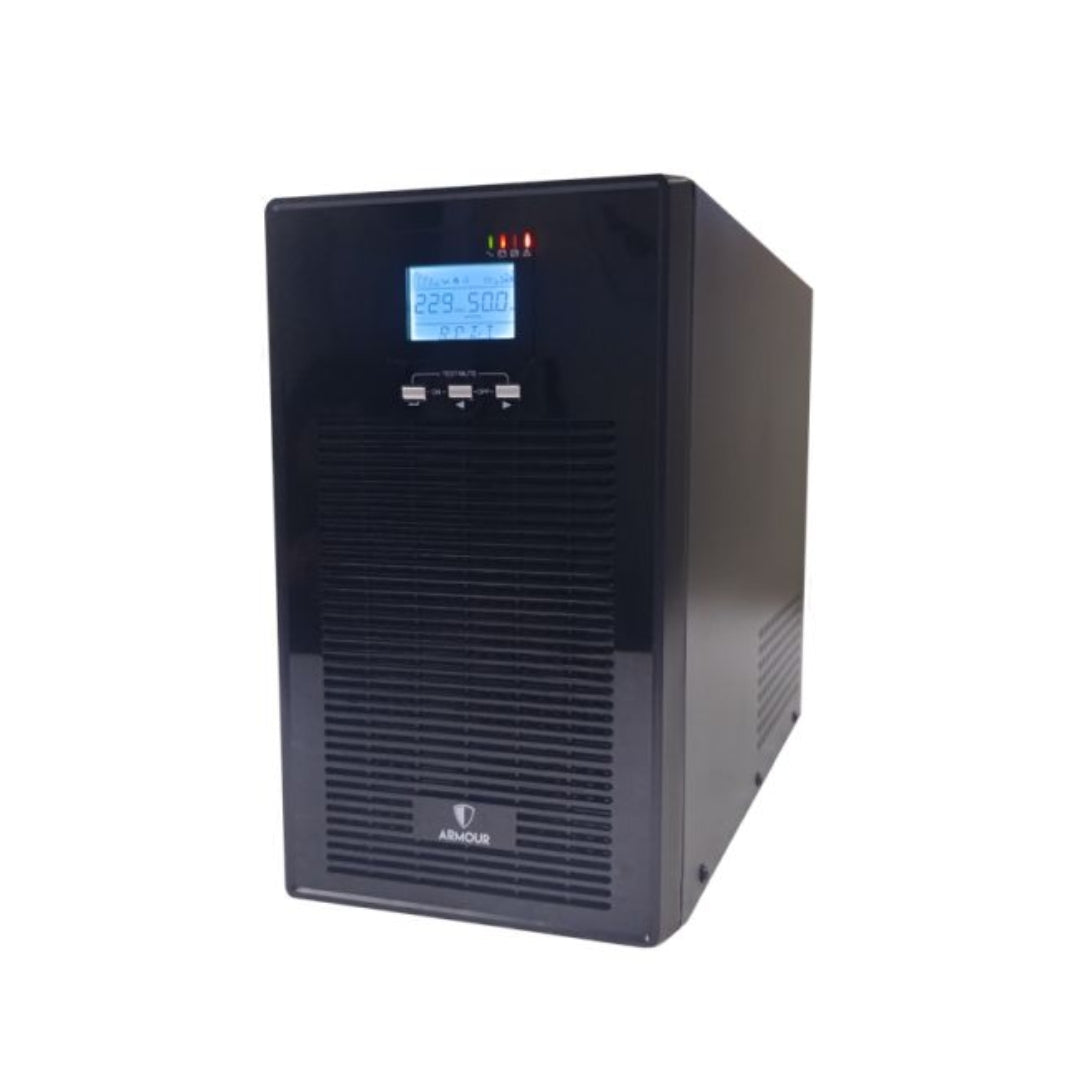

Armour 3000VA UPS -2400W - LCD Display - Uninterrupted Power Supply

The Armour 3000VA UPS provides 2400W of backup power with pure sine wave output for computers, network equipment, telecommunications systems and other compatible electrical devices. Its line-interactive design combines Automatic Voltage Regulation (AVR), intelligent battery management and an LCD display to support reliable day-to-day power protection.

With USB monitoring, RJ45 connectivity, IEC outputs and cold-start capability, this UPS provides practical power management and backup functionality for professional environments.

Pure sine wave backup power

The Armour 3000VA UPS provides a maximum capacity of 3000VA / 2400W with pure sine wave output.

Four 12V 9Ah sealed lead-acid, maintenance-free batteries provide a typical backup runtime of approximately 10–30 minutes, depending on the connected load. The batteries can reach approximately 90% charge capacity after 8 hours.

A cold-start function also allows the UPS to start from battery power when mains electricity is unavailable.

Automatic voltage regulation

Boost and buck Automatic Voltage Regulation (AVR) helps stabilise fluctuating mains voltage before it reaches connected equipment.

The UPS accepts a 220 / 240VAC input and delivers a 220 / 240VAC output, while automatic frequency sensing supports straightforward operation. A transfer time of 8ms allows the system to switch rapidly to battery backup when required.

The unit also automatically restarts when mains power is restored.

Intelligent battery and power management

Intelligent battery management helps control charging and battery operation, with adjustable charging current and battery shutdown settings available.

Automatic charging continues while the UPS is switched off, while a power-on self-test helps confirm system status during startup.

A configurable ECO mode and no-load shutdown function can also be used to manage operation according to the connected equipment and application.

Protection for connected equipment

Built-in protection includes surge protection, over-voltage and under-voltage protection, short-circuit protection and overload protection.

A relay-controlled automatic circuit cut-off switch provides additional electrical protection. The UPS also offers strong electromagnetic interference (EMI) compatibility to help prevent interference being passed to connected equipment.

Monitoring and connectivity

An integrated LCD display and LED indicators provide clear visual information about UPS operation, while an audible alarm system alerts users to relevant operating conditions.

Universal Serial Bus (USB) connectivity supports software monitoring from a compatible computer. The unit also includes two RJ45 connections and three IEC sockets, with AS400 and Simple Network Management Protocol (SNMP) communication available as optional functionality.

Designed for professional installations

The UPS operates within temperatures of 0–40°C and relative humidity levels of 10–90% non-condensing. Its operating noise level is rated at up to 50dB at a distance of 1 metre.

The unit measures 158mm wide, 222mm high and 460mm deep, with a stated product weight of 28.1kg.

Product Specifications

• Product code: UPS3000VAVIDARM
• Type: External UPS
• Maximum capacity: 3000VA / 2400W
• Output waveform: Pure sine wave
• Battery configuration: 4 x 12V 9Ah
• Battery type: Sealed lead-acid, maintenance-free
• Typical runtime: 10–30 minutes, dependent on load
• Transfer time: 8ms
• Input voltage: 220 / 240VAC with relay
• Output voltage: 220 / 240VAC
• Recharge time: 90% capacity after 8 hours
• Automatic Voltage Regulation: Boost and buck AVR
• USB connection: 1 x USB for monitoring
• RJ45 connections: 2
• IEC sockets: 3
• Visual indicators: LCD display and LED indicators
• Audible indicator: Alarm system
• Operating temperature: 0–40°C
• Operating humidity: 10–90% non-condensing
• Noise level: Up to 50dB at 1 metre
• Dimensions (W x H x D): 158 x 222 x 460mm
• Weight: 28.1kg
• Warranty: 1 year
