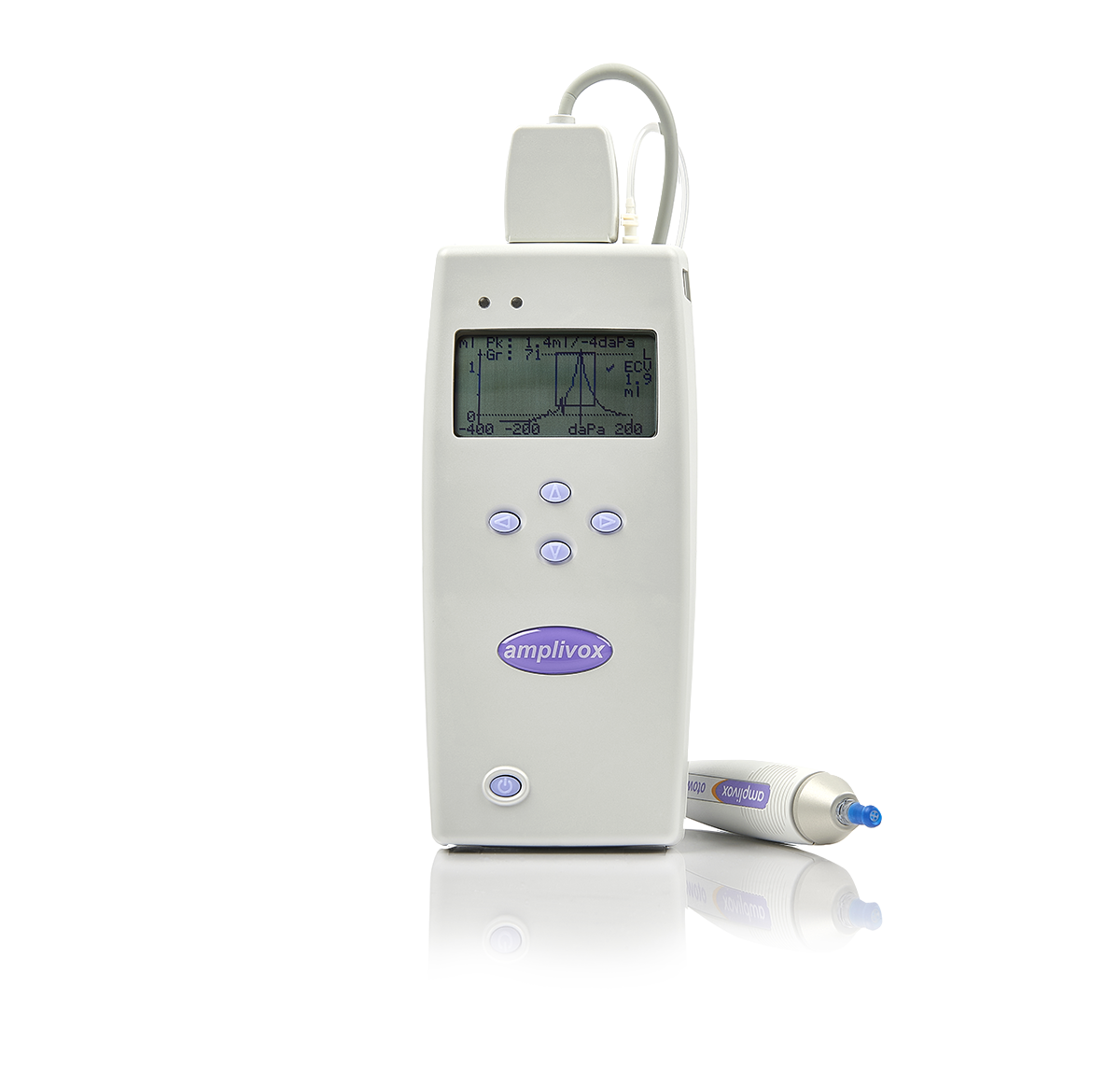

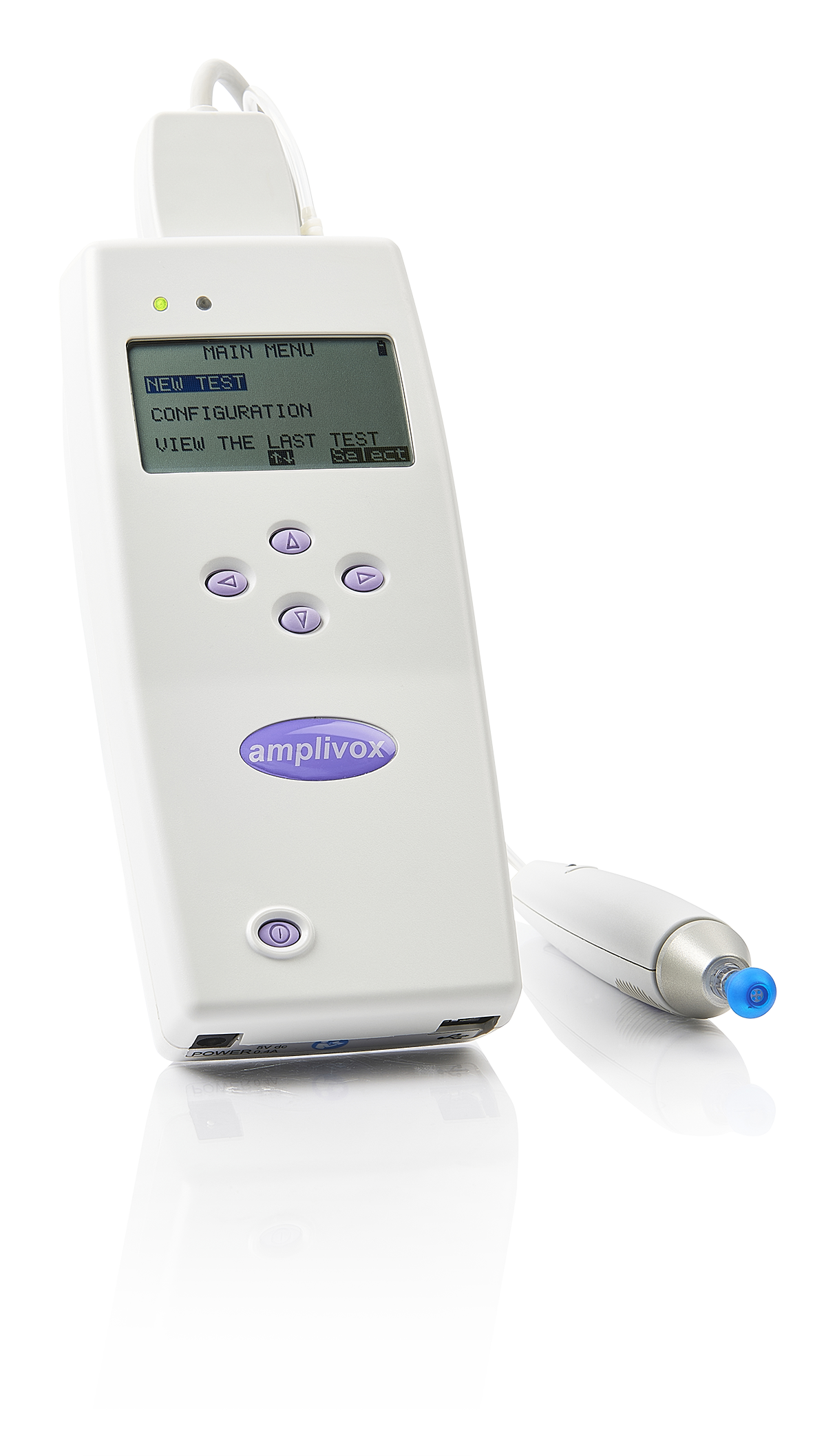

Amplivox - 202, 202H Handheld diagnostic tympanometers

Amplivox - 202, 202H Handheld diagnostic tympanometers

Regular price £2,985.00 GBP
Regular price Sale price £2,985.00 GBP
Sale Sold out
Shipping calculated at checkout.


Product Properties

Handheld diagnostic tympanometers that provide fast and accurate middle ear measurements in all age groups including neonates. The ideal choice for audiology, ENT and hearing care professionals who require a portable tympanometer for both mobile and clinical test settings.
Comprehensive testing
The Otowave 202 and 202-H offer a wide range of test functionality to ensure testing requirements can not only be met, but exceeded. The Otowave 202 provides 226Hz probe tone impedance measurements. The 202-H features a more comprehensive range of diagnostic test functions including user defined 226Hz and 1000Hz probe tone impedance measurements. The high frequency testing option of 1000Hz tympanometry makes this device ideal for assessing new-borns. Both devices offer a user programmable range of both ipsi and contralateral reflex test measurements at 500Hz, 1kHz, 2kHz and 4kHz.

Designed for small ears
With a probe specifically designed for small ear canals, middle ear measurements for neonates and children can be conducted with speed and accuracy. Diagnostic information is displayed via the display during and after the user defined measurement routine.

Data management
With the added benefit of an internal memory function, test results can be printed immediately or saved for future processing using the supplied Amplisuite software. The tympanometer also offers single-click integration to third-party Electronic Medical Record (EMR) systems such as Auditbase, Noah and OtoAccess®. This enables the seamless transfer of results and data for exceptional workflow efficiency.

Weighing only 430g (with batteries), the simple design allows for complete portability. Powered by AA batteries or via mains power, the Otowave 202 is ideal for mobile use or in a static clinical setting where space is at a premium.

Key features

  • Designed for handheld and desktop use
  • Mains and battery power functionality
  • 226Hz probe tone
  • 1kHz probe tone (202-H option)
  • Enhanced Ipsilateral and contralateral reflex frequencies (0.5, 1, 2 and 4kHz)
  • Auto pass/refer evaluation
  • User selectable measurement speeds
  • Internal memory, connection to portable printer and/or PC

Eartip selection box
Contralateral transducer
Test cavities (4)
Spare probe tips and gaskets
AA batteries (4)
Carry case
Power supply with country adaptors
USB cable (PC connection)
USB stick (manuals, audiometry module for Noah and Amplisuite software)
