Pharmacy Medical HECCMC250A Medicine Cabinet – Internal Controlled Drugs Cabinet – 600 x 500 x 300mm

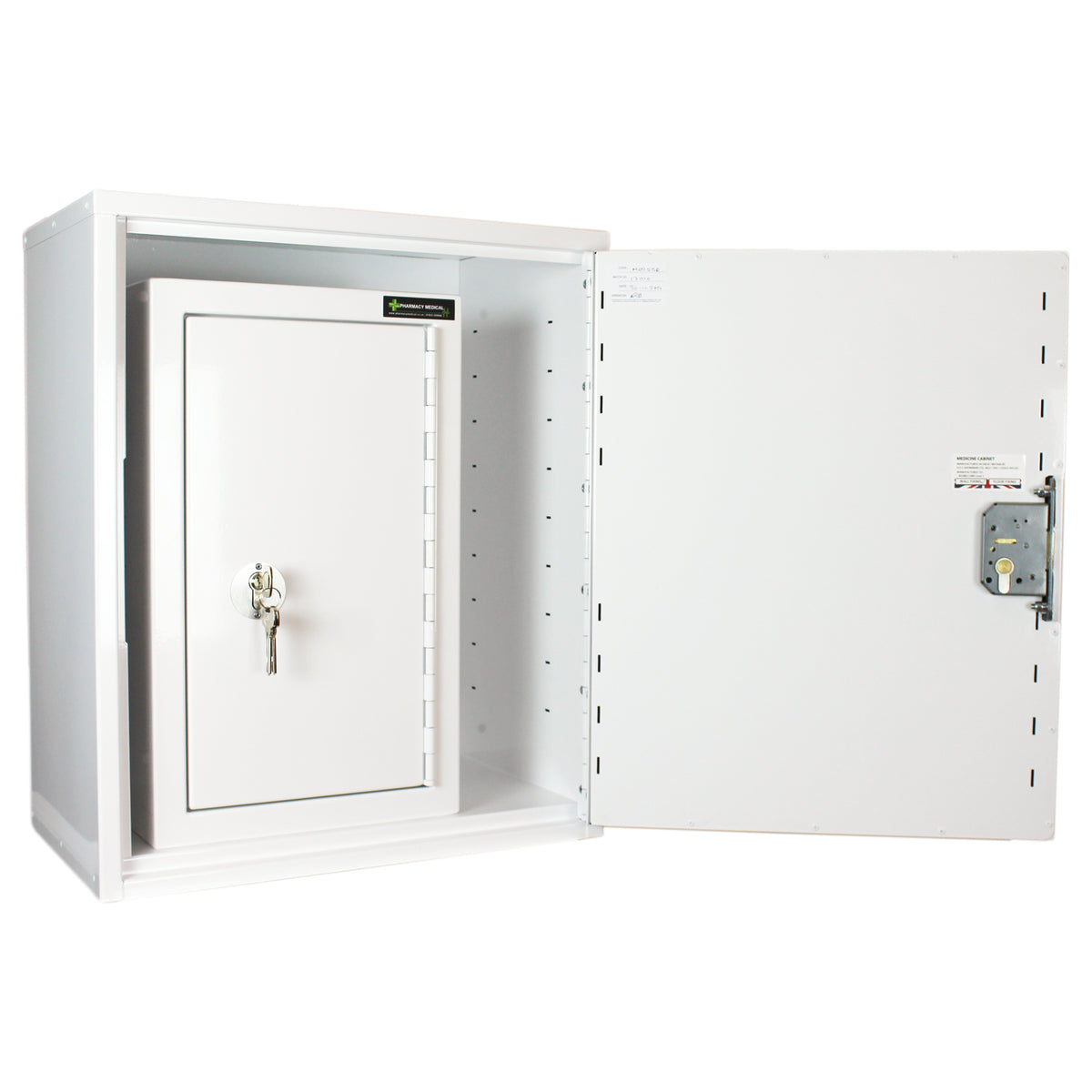

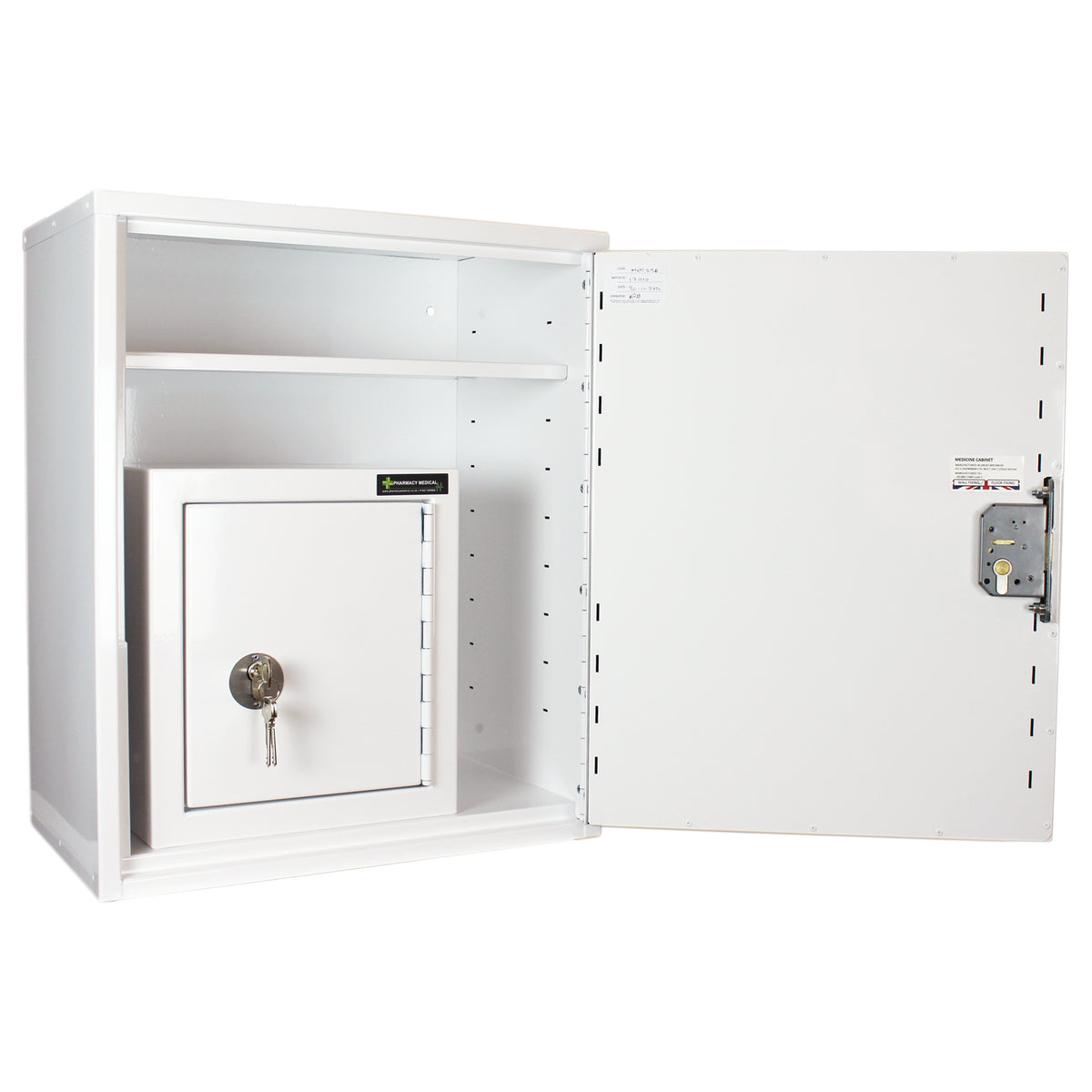

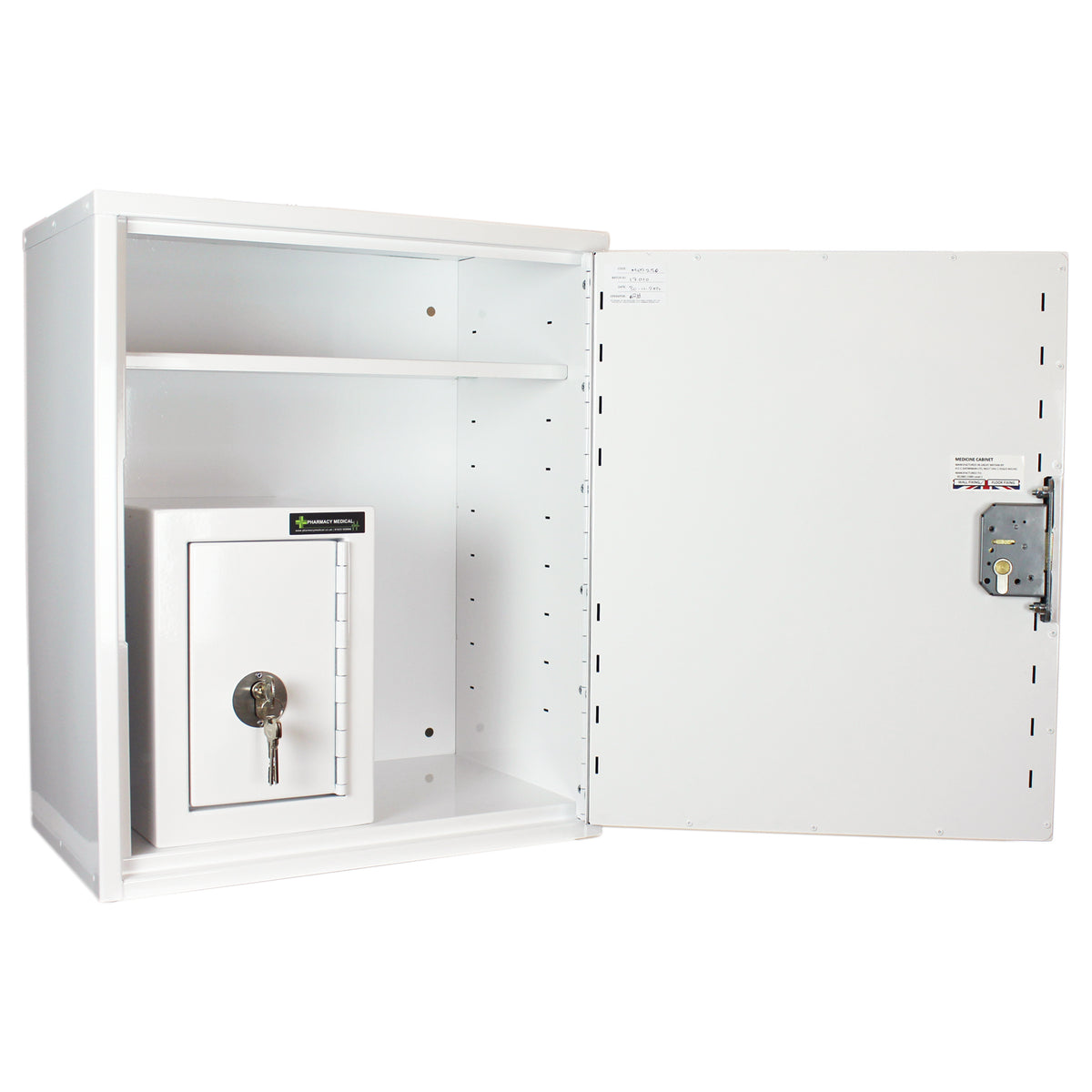

This HECCMC250A Medicine Cabinet features an Internal Controlled Drugs Cabinet, giving you secure storage for both general medicines and controlled drugs in one unit. Manufactured in-house at Pharmacy Medical, it's available in three sizes with removable or height-adjustable internal shelving to suit your requirements, and is supplied fully assembled with a wipe-clean powder-coated finish.

Dimensions

Manufactured in-house at Pharmacy Medical, this HECCMC250A Medicine Cabinet is 600mm x 500mm x 300mm, whilst the Internal Controlled Drugs Cabinet is available in small, medium, or large sizes (height x width x depth) to suit your requirements:

• 300mm x 210mm x 270mm (HECDC001) – 1 removable internal shelf
• 335mm x 300mm x 270mm (HECDC002) – 1 removable internal shelf
• 500mm x 300mm x 270mm (HECDC905) – 2 height adjustable internal shelves

HECCMC250 Medicine Cabinet with Internal Controlled Drugs Cabinet standards

The British Standards and legislations that the outer drugs & medicine cabinet conforms to include:

• BS2881:1989 (Security Level One) specification for cupboards for the storage of medicines in health care premises
• BS3621 anti-pick & drill, key retaining six pin cylinder lock (supplied with 3 keys)

The British Standards and legislations that the inner controlled drugs cabinet conforms to include:

• The Misuse of Drugs (Safe Custody) Act 1973
• BS2881:1989 (Security Level One) specification for cupboards for the storage of medicines in health care premises
• BS3621 anti-pick & drill, key retaining five pin cylinder lock (supplied with 3 keys)

HECCM250 Medicine Cabinet specifications

• 0.9mm thick cold-reduced mild steel sheet used throughout manufacture
• Welded cabinet construction
• Full-length anti-jimmy folded return down the full length of the hinge side of door, ensuring the cabinet door cannot be removed even if the hinge is forced, for added security
• Wipe clean powder-coated finish
• Fully adjustable shelving
• BS3621:1998 compliant lock
• Supplied fully assembled
• Door reinforcing pressing to lock fixing

HECCM250 Controlled Drugs Cabinet specifications

• Constructed from 1.5mm thick cold-reduced mild steel sheet
• 3mm thick anchor plates at all fixing points
• Fully welded construction
• Anti-jimmy folded return down full length of hinge side of door
• 2mm thick mild steel continuous hinge complete with 25mm joints & 4.5mm diameter hinge pin
• Welded hinge pin to prevent removal of door

Medicine & drugs cabinet lock cylinder specifications

This specification is valid for both the internal controlled drugs cabinet and the external medicine cabinet:

• 1 x 6-pin Euro-profile cylinder lock incorporating anti-pick, anti-drill, anti-bump & fire-resistant features
• Independently tested cylinder to meet BS: EN1303:2005 – the latest security standard testing against all methods of attack
• Kitemark KM532920 lock
• Key security grade 5
• Torque resistance of plug/cylinder relevant to attack resistance – 30 Nm
• Meets the Master Locksmiths Association (MLA) vulnerability test for cylinders
• Key Retention – The Key cannot be removed when the door is open
• 1-Star cylinder holds Secured by Design accreditation (TS007) – the police-preferred specification
• 10-year lock cylinder guarantee from manufacturer

HECCM250 Medicine Cabinet & Internal Controlled Drugs Cabinet mortice deadlock specifications

This specification is valid for both the internal controlled drugs cabinet and the external medicine cabinet:

• Hardened steel mortise bolt with anti-saw facility incorporated in cabinet design
• 14mm deadbolt throw
• Polyester powder-coated in RAL 9003 (White) Gloss finish
