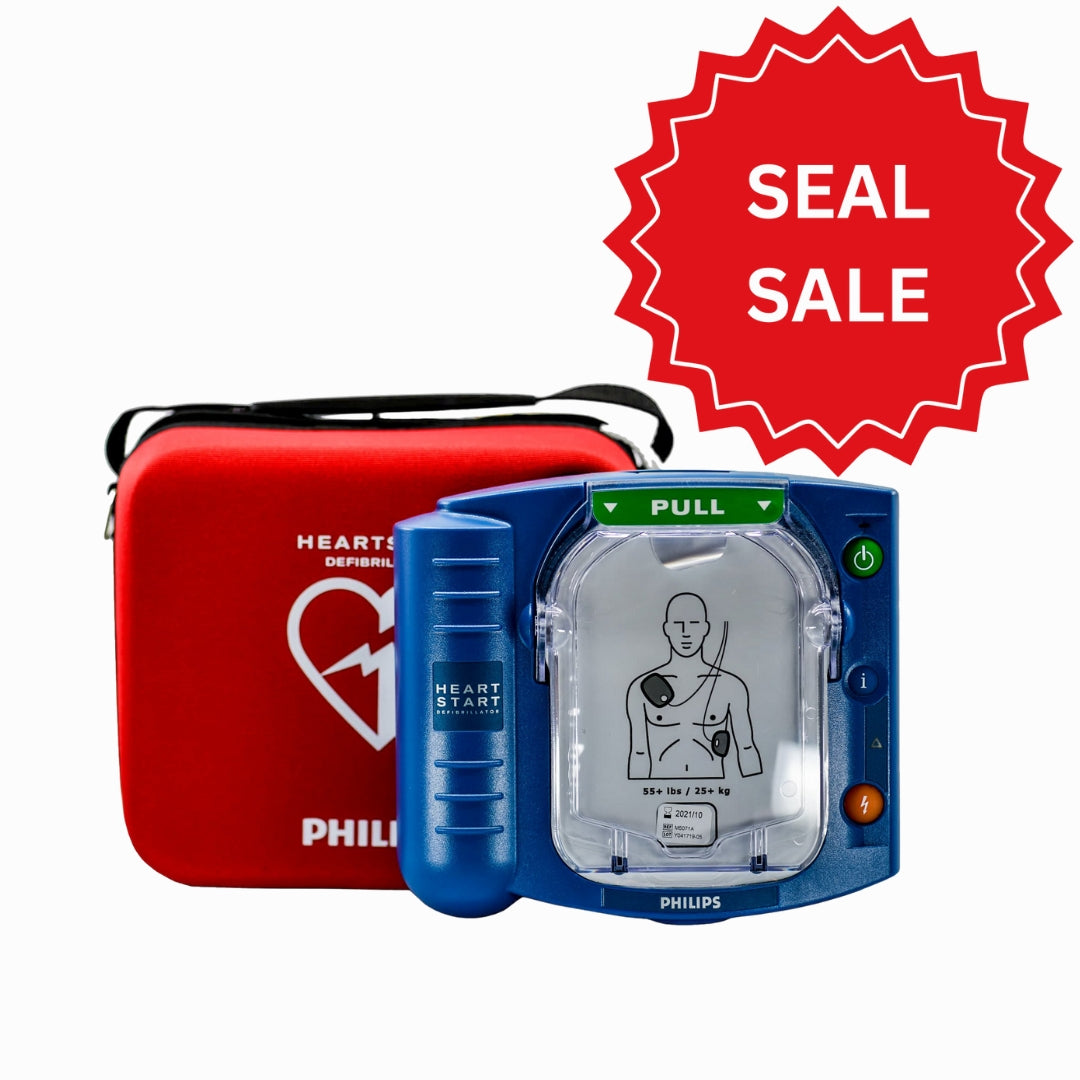

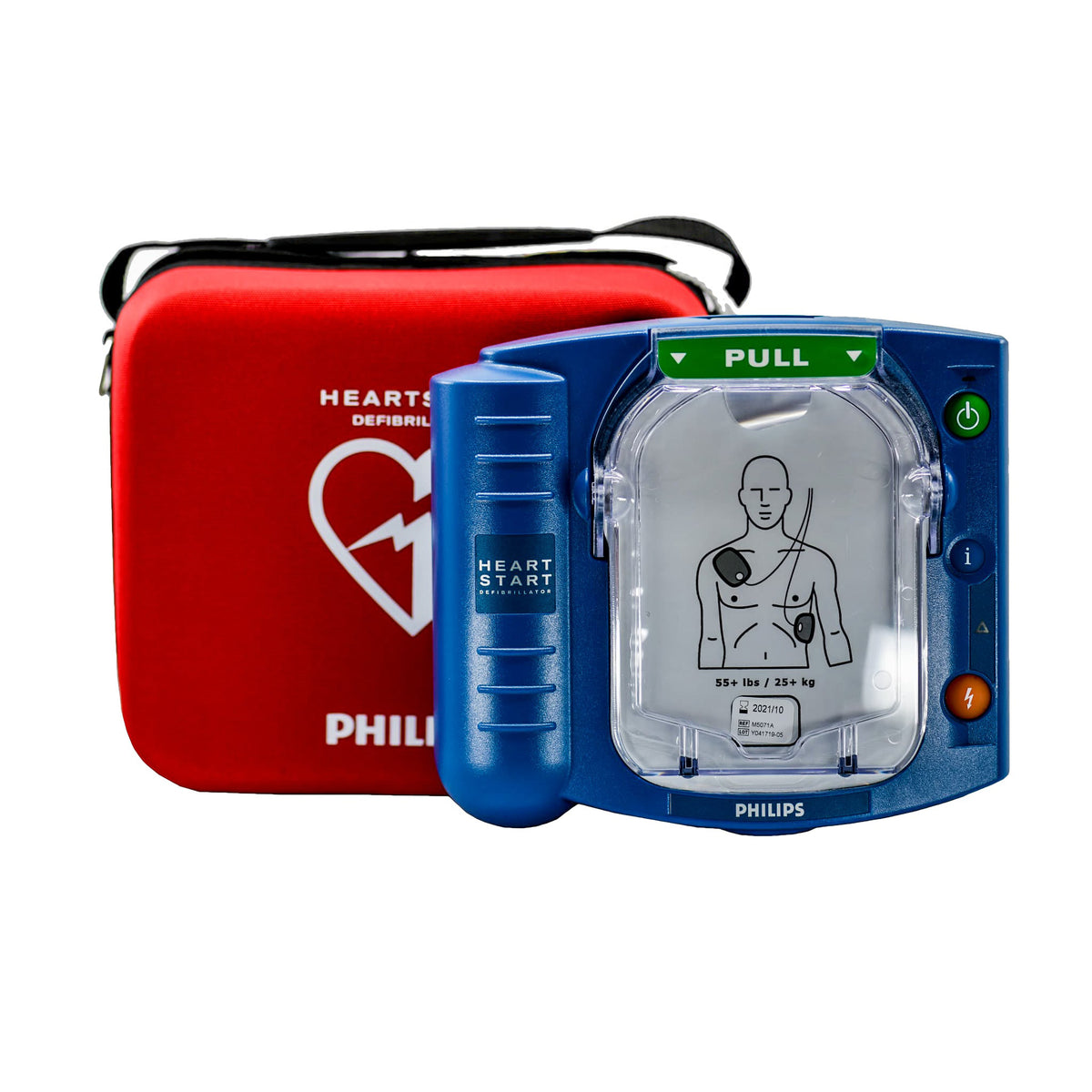

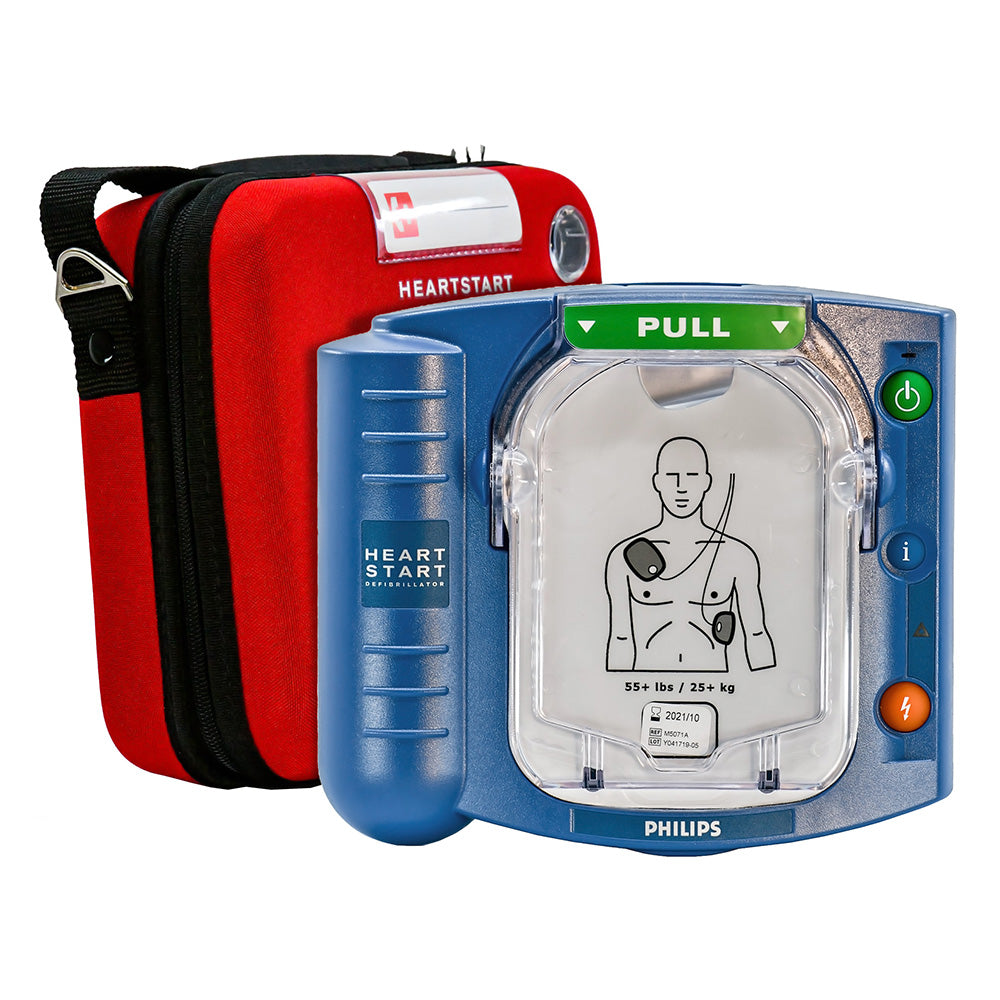

Philips HeartStart HS1 AED Defibrillator

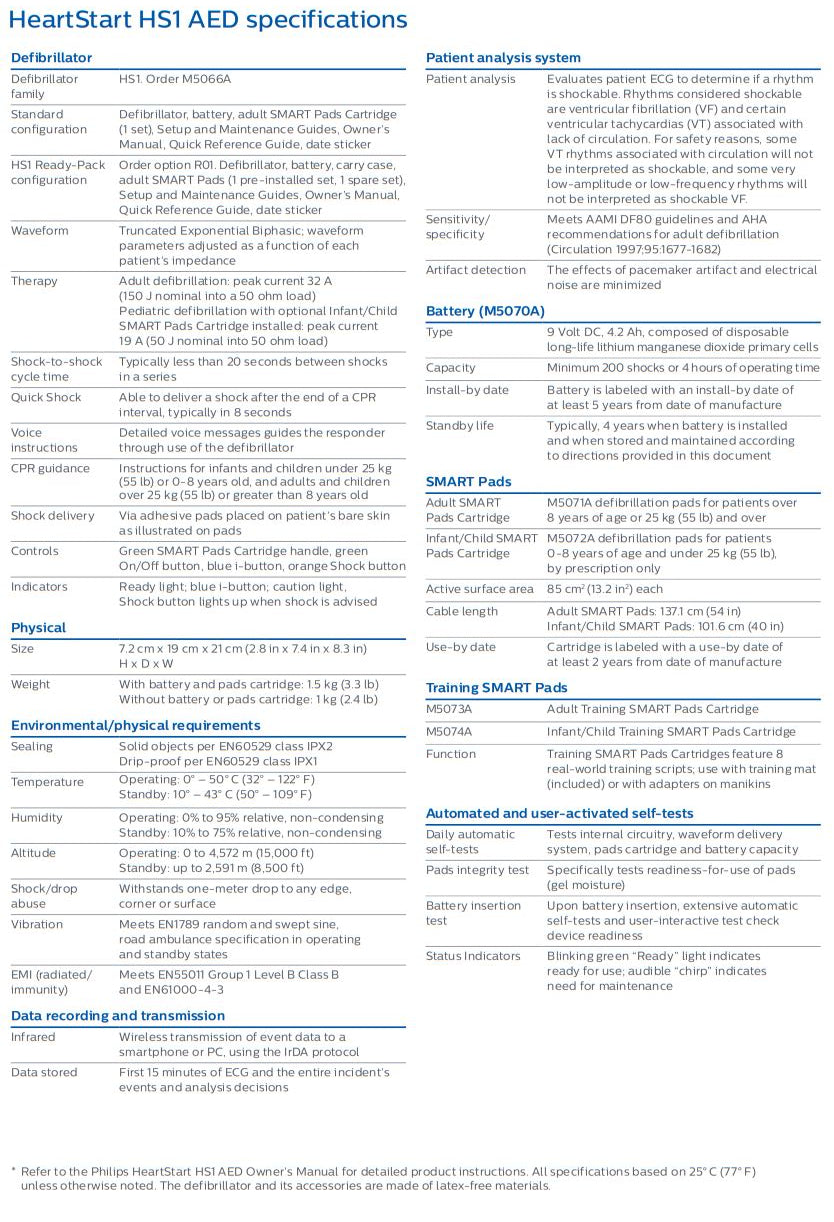

Defibrillator family: HS1. Order M5066A
Standard Configuration: Defibrillator, battery, adult SMART Pads Cartridge (1 set), Setup and Maintenance Guides, Owner's Manual, Quick Reference Guide, date sticker
HS1 Ready-Pack Configuration: Order option R01. Defibrillator, battery, carry case, adult SMART Pads (1 pre-installed set, 1 spare set), Setup and Maintenance Guides, Owner's Manual, Quick Reference Guide, date sticker
Waveform: Truncated Exponential Biphasic; waveform parameters adjusted as a function of each patient's impedance
Therapy: Adult Defibrillation: peak current 32 A (150 J nominal into a 50 ohm load)
Therapy: Pediatric Defibrillation with Optional Infant/Child SMART Pads Cartridge Installed: peak current 19 A (50 J nominal into 50 ohm load)
Shock-to-Shock Cycle Time: Typically less than 20 seconds between shocks in a series
Quick Shock: Able to deliver a shock after the end of a CPR interval, typically in 8 seconds
Voice Instructions: Detailed voice messages guides the responder through use of the defibrillator
CPR Guidance: Instructions for infants and children under 25 kg (55 lb) or 0–8 years old, and adults and children over 25 kg (55 lb) or greater than 8 years old
Shock Delivery: Via adhesive pads placed on patient's bare skin as illustrated on pads
Controls: Green SMART Pads Cartridge handle, green On/Off button, blue i-button, orange Shock button
Indicators: Ready light; blue i-button; caution light; Shock button lights up when shock is advised
Size: 7.2 cm x 19 cm x 21 cm (2.8 in x 7.4 in x 8.3 in) H x D x W
Weight with Battery & Pads Cartridge: 1.5 kg (3.3 lb)
Weight without Battery or Pads Cartridge: 1 kg (2.4 lb)
Environmental/Physical Requirements:
Sealing: Solid objects per EN60529 class IPX2. Drip-proof per EN60529 class IPX1
Operating Temperature: 0° – 50° C (32° – 122° F)
Standby Temperature: 10° – 43° C (50° – 109° F)
Operating Humidity: 0% to 95% relative, non-condensing
Standby Humidity: 10% to 75% relative, non-condensing
Operating Altitude: 0 to 4,572 m (15,000 ft)
Standby Altitude: up to 2,591 m (8,500 ft)
Shock/Drop Abuse: Withstands one-metre drop to any edge, corner or surface
Vibration: Meets EN1789 random and swept sine, road ambulance specification in operating and standby states
EMI (Radiated/Immunity): Meets EN55011 Group 1 Class B and EN61000-4-3
Data Recording & Transmission:
Infrared: Wireless transmission of event data to a smartphone or PC, using the IrDA protocol
Data Stored: First 15 minutes of ECG and the entire incident's events and analysis decisions
Patient Analysis System:
Patient Analysis: Evaluates patient ECG to determine if a rhythm is shockable. Rhythms considered shockable are ventricular fibrillation (VF) and certain ventricular tachycardias (VT) associated with lack of circulation. For safety reasons, some VT rhythms associated with circulation will not be interpreted as shockable, and some very low-amplitude or low-frequency rhythms will not be interpreted as shockable VF.
Sensitivity/Specificity: Meets AAMI DF80 guidelines and AHA recommendations for adult defibrillation (Circulation 1997;95:1677-1682)
Artifact Detection: The effects of pacemaker artifact and electrical noise are minimised
Battery (M5070A):
Type: 9 Volt DC, 4.2 Ah, composed of disposable long-life lithium manganese dioxide primary cells
Capacity: Minimum 200 shocks or 4 hours of operating time
Install-by Date: Battery is labelled with an install-by date of at least 5 years from date of manufacture
Standby Life: Typically, 4 years when battery is installed and when stored and maintained according to directions provided in this document
SMART Pads:
Adult SMART Pads Cartridge: M5071A defibrillation pads for patients over 8 years of age or 25 kg (55 lb) and over
Infant/Child SMART Pads Cartridge: M5072A defibrillation pads for patients 0–8 years of age and under 25 kg (55 lb), by prescription only
Active Surface Area: 85 cm² (13.2 in²) each
Cable Length: Adult SMART Pads: 137.1 cm (54 in)
Cable Length: Infant/Child SMART Pads: 101.6 cm (40 in)
Use-by Date: Cartridge is labelled with a use-by date of at least 2 years from date of manufacture
Training SMART Pads:
M5073A: Adult Training SMART Pads Cartridge
M5074A: Infant/Child Training SMART Pads Cartridge
Function: Training SMART Pads Cartridges feature 8 real-world training scripts; use with training mat (included) or with adapters on manikins
Automated & User-Activated Self-Tests:
Daily Automatic Self-Tests: Tests internal circuitry, waveform delivery system, pads cartridge and battery capacity
Pads Integrity Test: Specifically tests readiness-for-use of pads (gel moisture)
Battery Insertion Test: Upon battery insertion, extensive automatic self-tests and user-interactive test check device readiness
Status Indicators: Blinking green "Ready" light indicates ready for use; audible "chirp" indicates need for maintenance

Refer to the Philips HeartStart HS1 AED Owner's Manual for detailed product instructions.

All specifications based on 25° C (77° F) unless otherwise noted.

The defibrillator and its accessories are made of latex-free materials.
