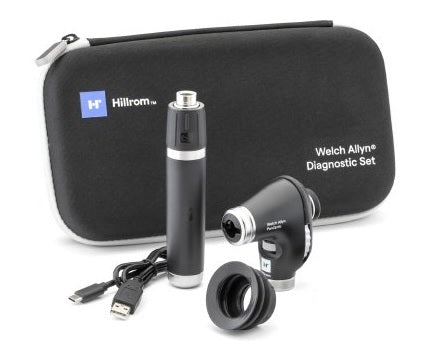

Welch Allyn 3.5V Diagnostic Set with PanOptic Plus Ophthalmoscope

PanOptic Plus Ophthalmoscope, Premium Lithium Ion Plus USB Rechargeable Power Handle & Hard Case

The Welch Allyn PanOptic Plus Ophthalmoscope offers a brighter, wider view. Enhance eye exams with the PanOptic Plus, featuring QuickEye™ alignment technology and the option to save and share eye images. Both devices work on existing Welch Allyn 3.5 V
power sources

Features

• Long, lasting LED illumination
• 20X larger view vs. standard ophthalmoscopes
• Familiar focus wheels and standard aperatures included
• Designed with Durashock
• Eye alignment technology helps guide the patient’s gaze for easier entry into the eye
• Digitally capable

PanOptic Plus Ophthalmoscopes include quick eye alignment technology & metal eyepiece connecter for iExaminer bracket

Height x Width x Dept: 8 cm x 4.5 cm x 7.5 cm
Weight: 130g
Aperatures; Small, Large, Red Free, Slit, Fixation target, Cobalt Blue

Diopter Range: 20 to +25 D

Diopter Steps: -20, -15, -12, -10, -9, -8, -7, -6, -5, -4, -3, -2, -1, 0, 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 12, 15, 20, 25

Crossed-linear Polarizers: Yes

Colour: Colour rendering index (CRI): 95 typical; R9: 85 typical; Colour temperature: 2700K - 3500K

Lamp Life: 80+ years (typical)
71-PX3LXE
Field of view: 20°
