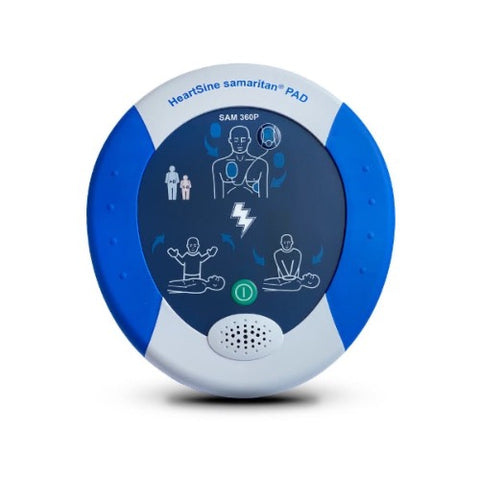

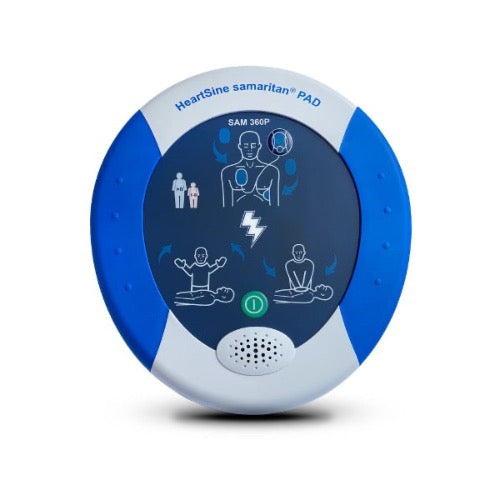

HeartSine Samaritan PAD 360P Fully Automatic Defibrillator

The HeartSine Samaritan PAD 360P Fully Automatic Defibrillator is a compact AED designed for straightforward use in public access environments. Clear visual and voice prompts guide the responder through Cardiopulmonary Resuscitation (CPR) and defibrillation.

Fully automatic operation allows the AED to analyse the patient's heart rhythm and deliver a shock automatically when required, while its lightweight construction and IP56 rating provide portability and protection for everyday environments.

Fully automatic shock delivery

The Samaritan PAD 360P analyses the patient's heart rhythm to determine whether defibrillation is required.

When a shockable rhythm is detected, the fully automatic defibrillator delivers the shock without requiring the responder to press a shock button.

Visual and voice guidance

Clear visual indicators and voice prompts guide the responder through each stage of the rescue process.

Simple operation helps make the AED suitable for public access locations where responders may have varying levels of experience.

CPR metronome

An integrated metronome provides prompts to help the responder maintain the appropriate chest compression rate during CPR.

This works alongside the AED's visual and voice instructions to provide guidance throughout the rescue process.

Adult and paediatric use

The HeartSine Samaritan PAD 360P can be used for both adult and paediatric patients.

For children younger than 8 years old or weighing less than 25kg, the compatible Pediatric-Pak™ is available separately and delivers a reduced energy sequence of 50J.

Pad-Pak system

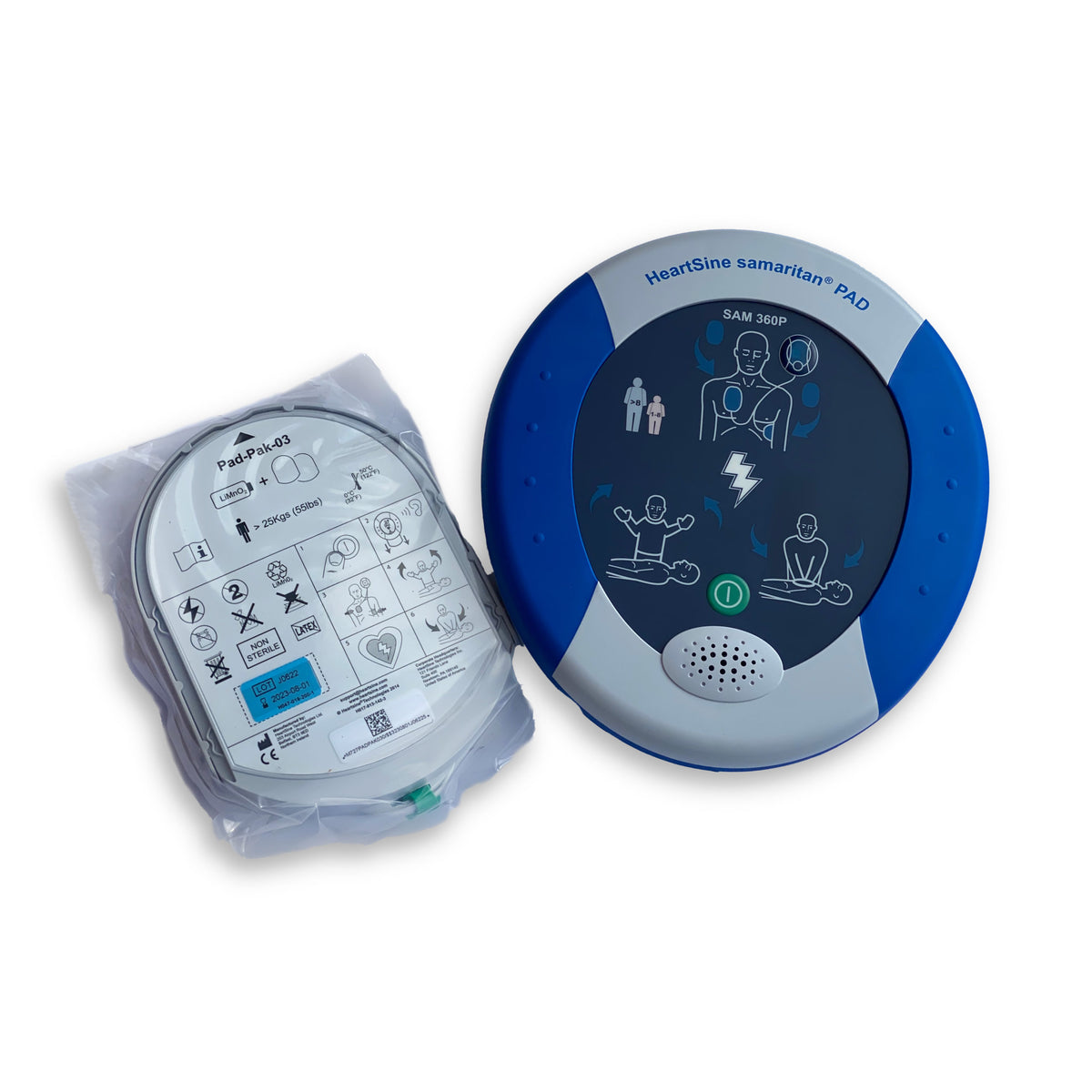

The HeartSine Pad-Pak™ combines the battery and adult electrode pads into a single replaceable cartridge.

This design means there is only one expiration date to monitor and one consumable cartridge to replace following use.

SCOPE biphasic technology

The Samaritan PAD 360P uses Self-Compensating Output Pulse Envelope (SCOPE™) biphasic waveform technology.

The technology adjusts according to patient impedance to support appropriate shock delivery, with an adult energy sequence of 150J, 150J and 200J.

Automatic self-testing

The HeartSine 360P performs an automatic self-test every week to monitor its operational readiness.

A flashing green LED indicates that the defibrillator is ready for use. If the AED fails a self-test, the indicator flashes red and the device provides an audible alert.

Lightweight IP56-rated design

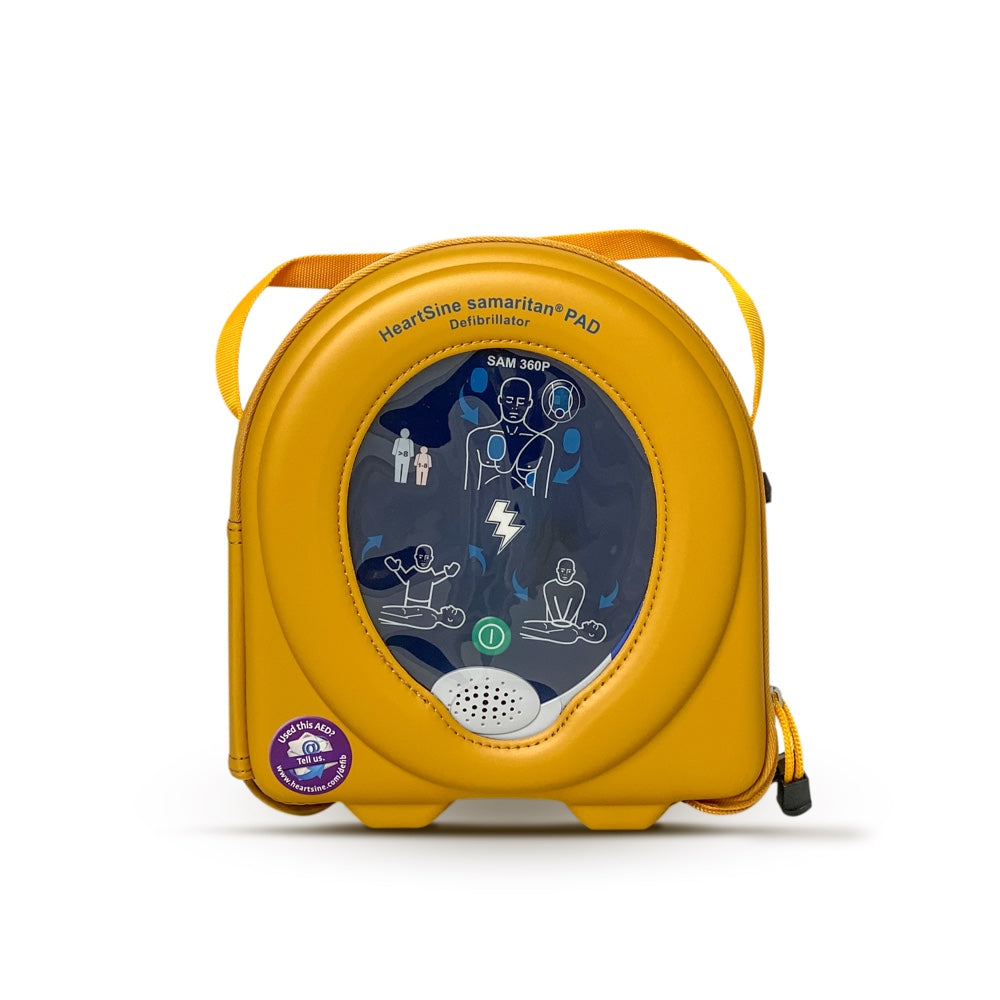

The Samaritan PAD 360P weighs under 1.5kg with its carry case, providing a compact and portable option for public access defibrillation.

An Ingress Protection (IP) rating of IP56 provides a high level of protection against dust and water, while the unit has been drop tested from a height of 1 metre.

Event recording and data access

Internal memory records rescue information including the time, date, Electrocardiogram (ECG) trace, event duration, shock delivery information and CPR intervals.

A Universal Serial Bus (USB) data port allows recorded information to be accessed following an event.

Warranty

The HeartSine Samaritan PAD 360P Fully Automatic Defibrillator comes with an 8-year warranty.
