Daray - X400 Examination light

Product Properties

• Infection controlling design
• Variable intensity from 0% - 100%
• LED technology provides energy and cost saving over the lifetime of the product
• BioProtect® antimicrobial coating on all painted surfaces to assist with infection control management
• Long lamp life – 50,000 hours
• Colour temperature of 4,300k
• Emits no infrared radiation – no increase in temperature in the light-field
• A strong beam of light with an even intensity across the entire area for a clearer viewing and reduced eye strain
• No life-risk voltage at the light-head
• DARAY LED lights are more robust than conventional equivalent halogen lights
• Battery back-up options available



The DARAY X4 Series is a premium quality LED examination light for use in all general medical diagnosis and procedures.

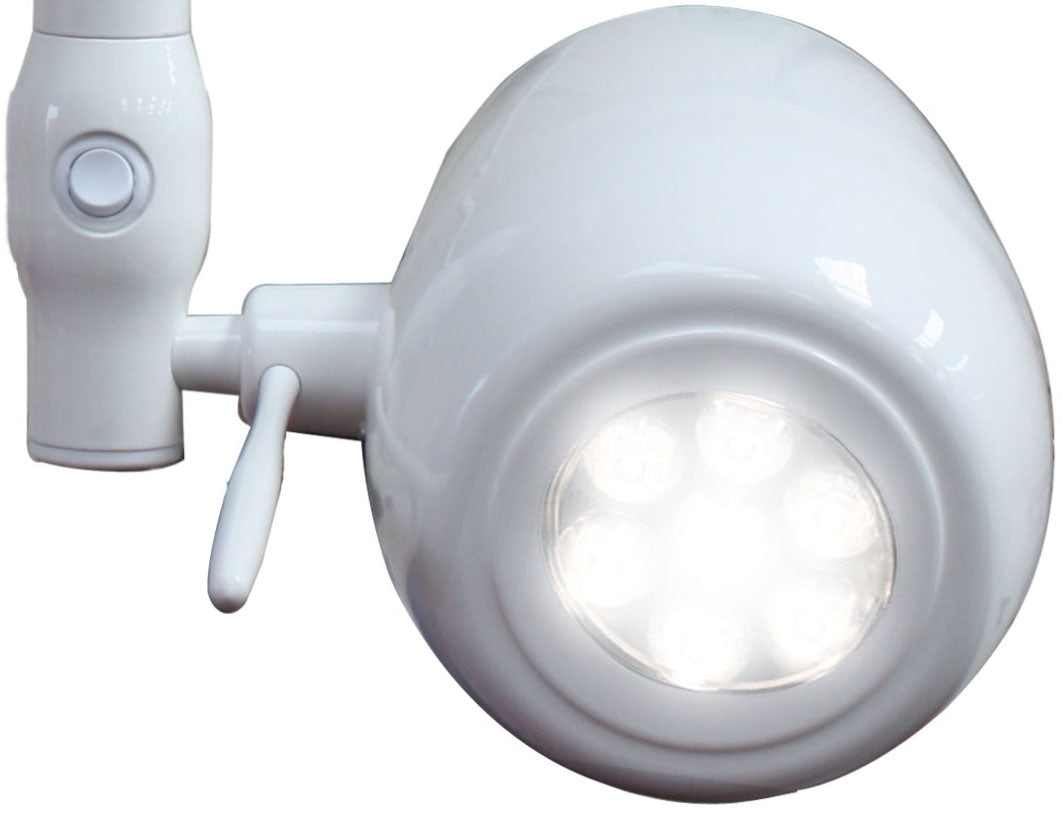

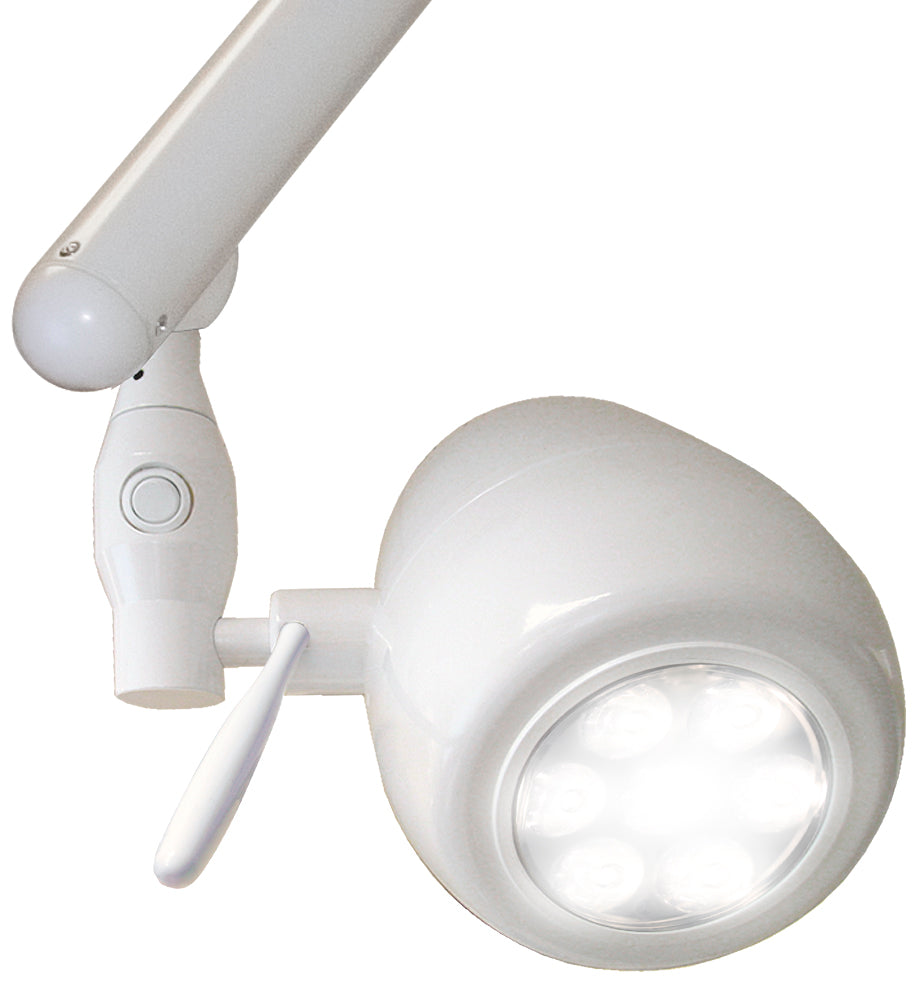

The X4 Series has a large diameter light-patch providing excellent illumination. This model boasts single-handed lighting control, on/off and variable intensity, from a single switch located next to the light head. A smooth, fully-enclosed light head and arm system assists with the management of infection control.

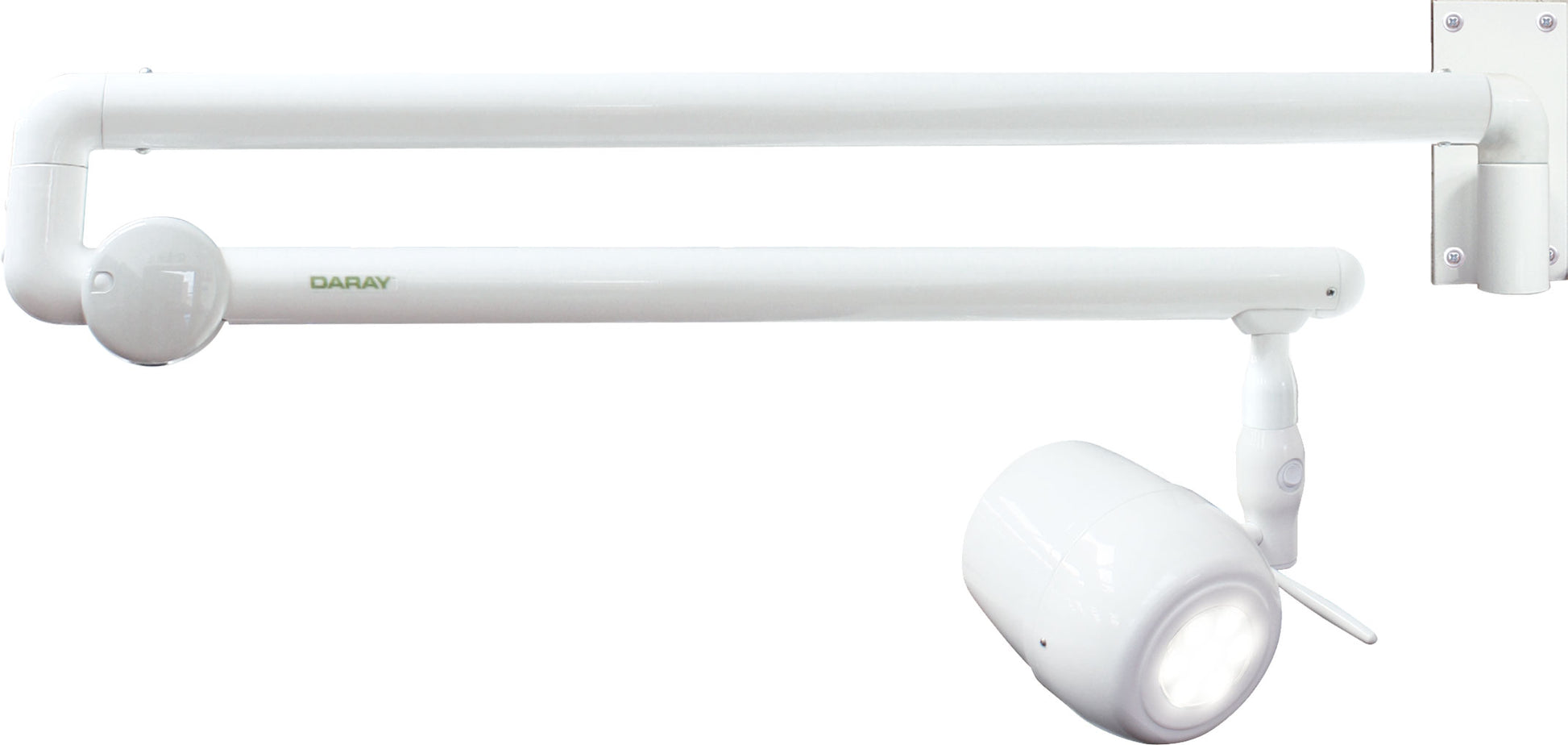

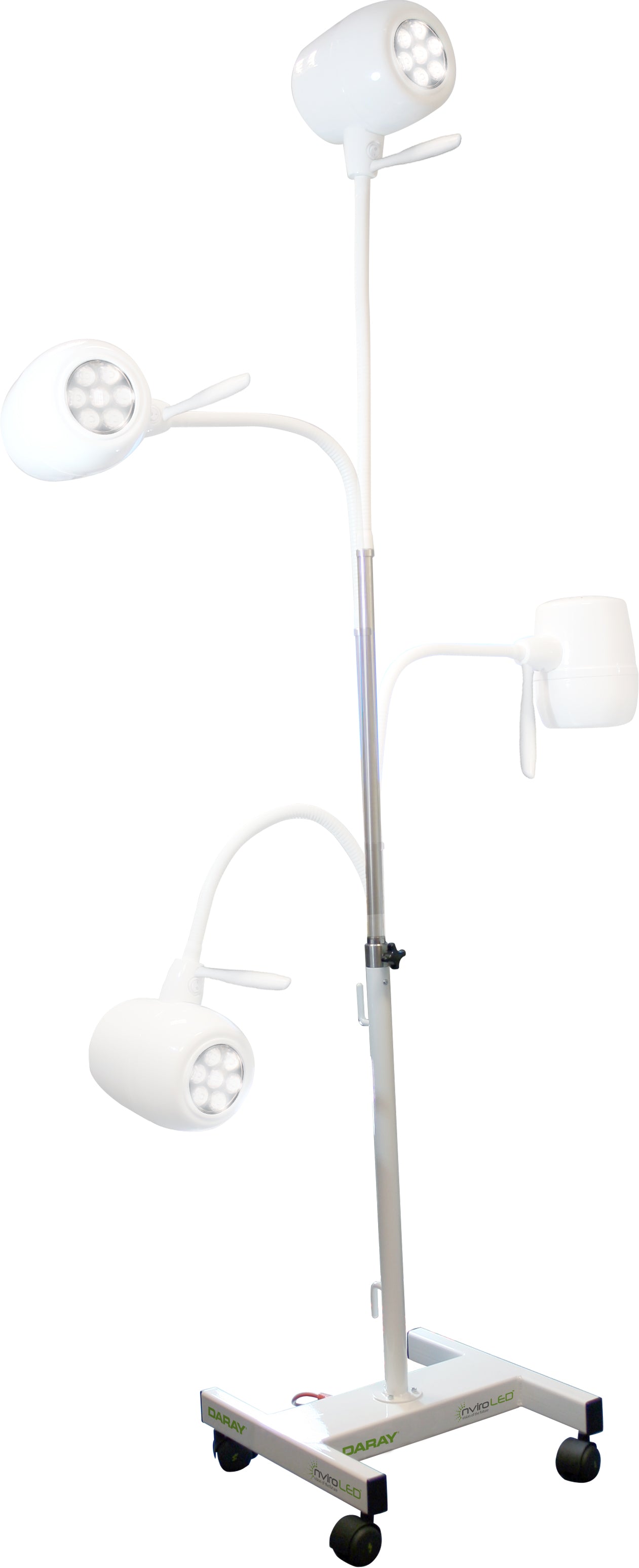

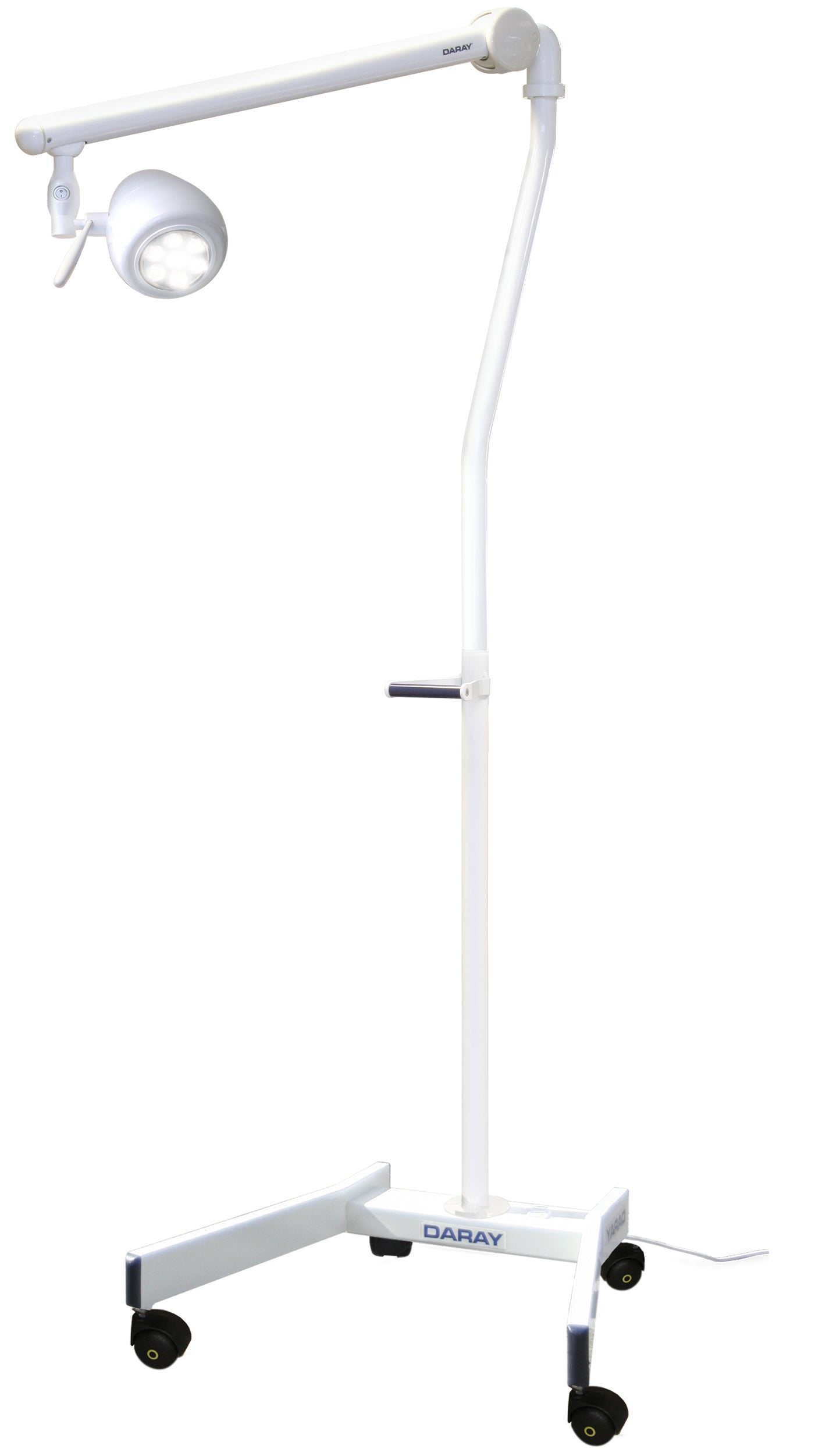

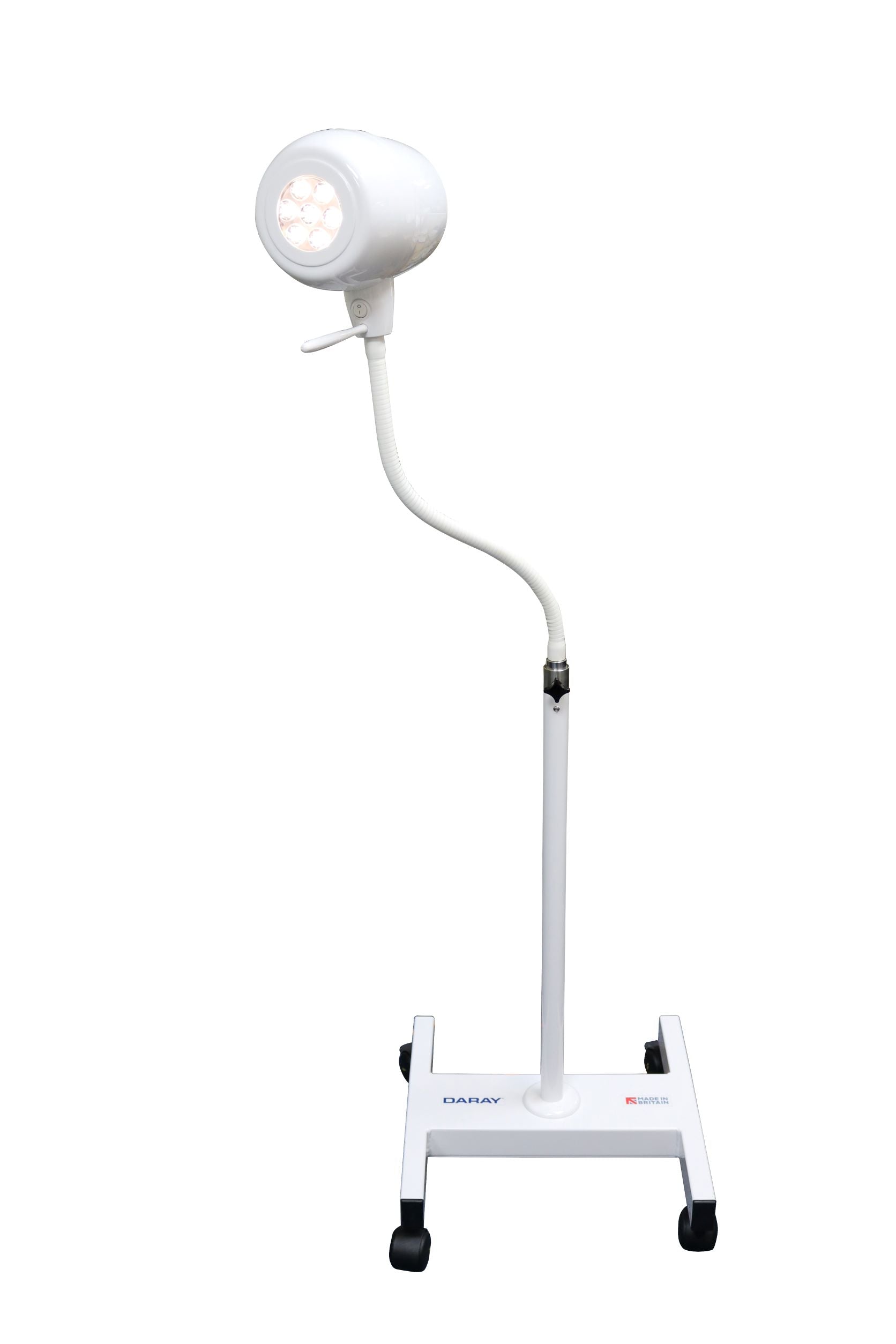

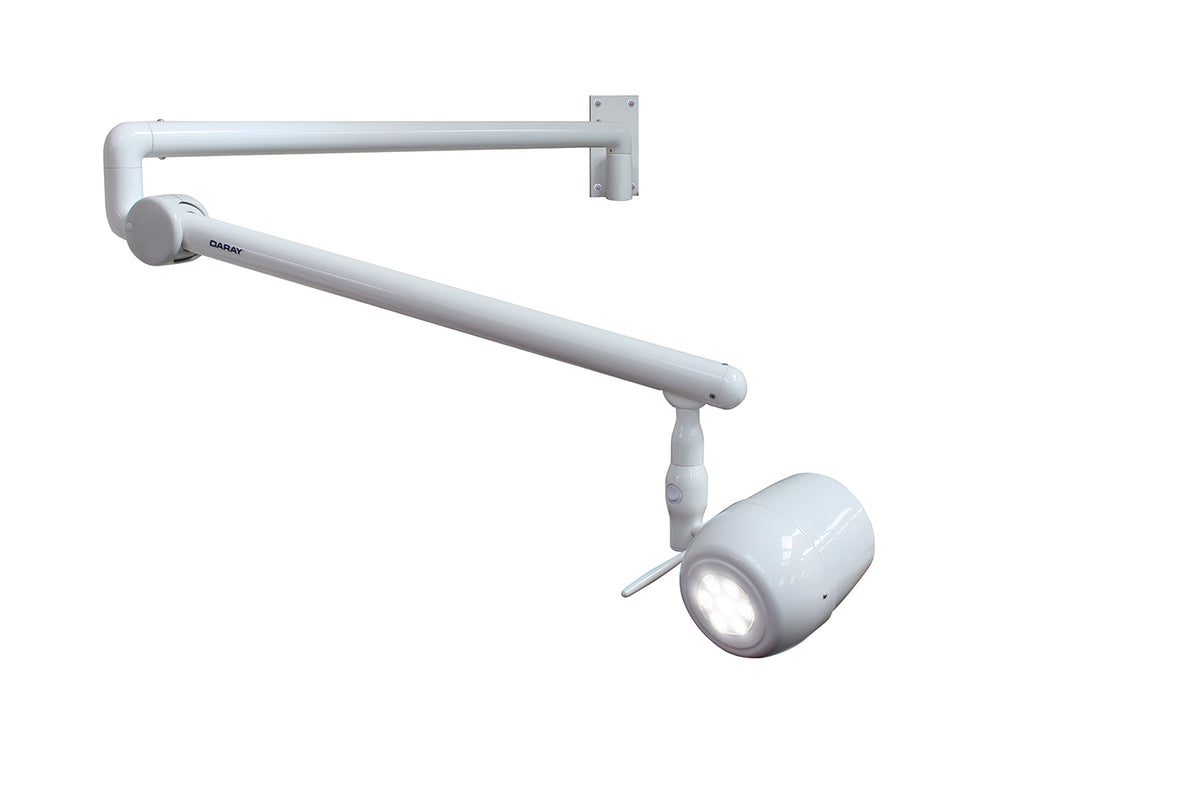

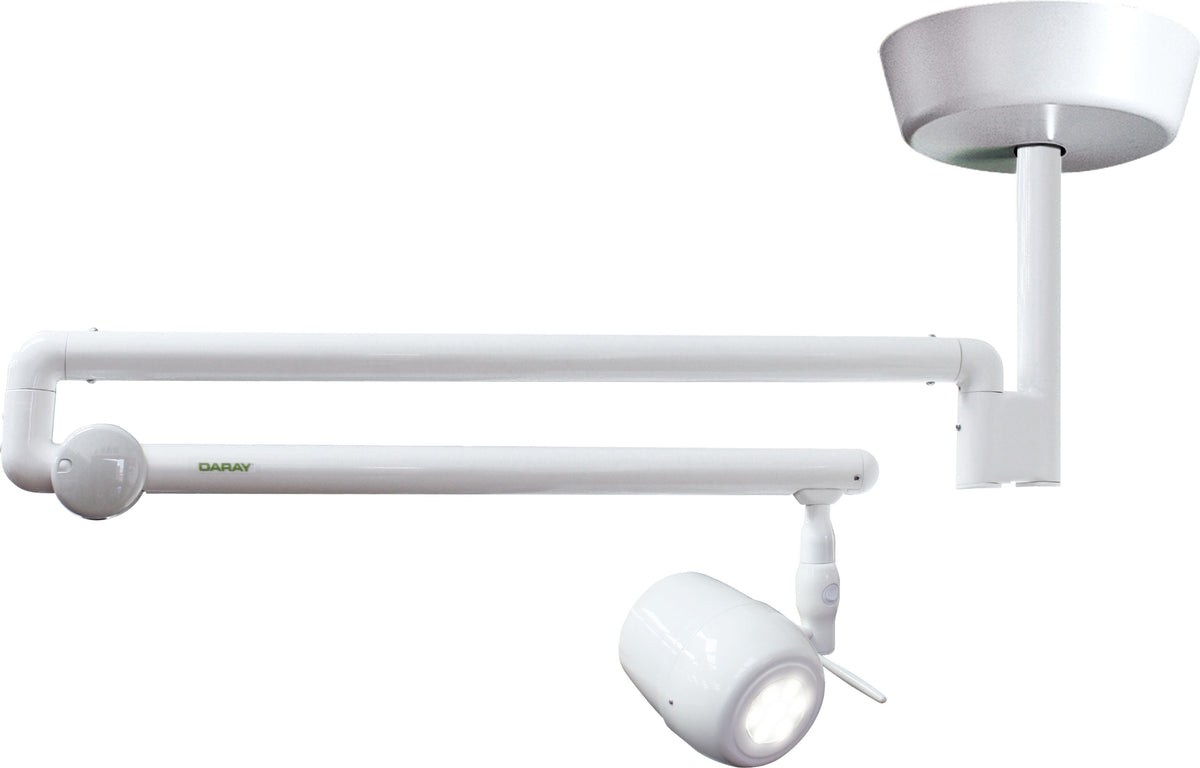

Available as wall, ceiling and mobile versions which include the most versatile spring-balanced suspension arms available for effortless repositioning – the X4 will complement any examination room.

BioProtect
BioProtect is an antimicrobial solution coating applied to DARAY’s products for infection control. Our core products are medical, dental and veterinary lighting used by specialist staff treating patients. Infection is the highest risk in patient environments. BioProtect provides excellent protection against illness-causing bacteria such as MRSA, Salmonella, E. coli, Campylobacter and many other bacteria and fungal growths.

Key Technical Data

Light Source: LED
Light Intensity (Lux) @ 0.5m: 120,000 Lux ±5%
Light Intensity (Lux) @ 0.75m: 64,000 Lux ±5%
Light Intensity (Lux) @ 1.0m: 40,000 Lux ±5%
Light Intensity Adjustment Range: 5% - 100%
Colour Temperature (Kelvin): 4,300K ±500
Colour Rendering Index (CRI): 95
Colour Rendering (R9): 88
Light Diameter (D50): @ 0.5m: 75mm
                                   @ 0.75m: 100mm
                                   @ 1.0m: 125mm
Light Diameter (D10) @ 0.5m: 170mm
                                   @ 0.75m: 200mm
                                   @ 1.0m: 220mm
Number of LED’s: 7
Power Consumption: 16W 0.19A
Average Working Life: >50,000 Hours
Input Voltage: 100 – 240V AC 50/60Hz
Output Voltage: 30V DC 1A
Temperature Rise on Patient/User: ≤2ºC
Warranty Period: 5 years
NHS E-Class: FBU, FKR
Commodity Code: 9018 908400
GDMN Code: 12276
