LeECG Portable Multi-Lead Tablet ECG OS12
- 6 / 9 / 12 / 15 / 18-lead synchronised ECG acquisition
- 7” high-resolution capacitive touchscreen
- Pacing detection & electrode contact correction
- Available options
- 1
- Display
- 7-inch high-resolution capacitive touchscreen
- Battery
- Up to 40 hours standby
- Dimensions
- Thickness ≤27 mm
- Weight
- ≤1 kg
Regular price
£1,529.99
excl. VAT
£1,835.99
incl. VAT
Unit price
In stock
Not supplied

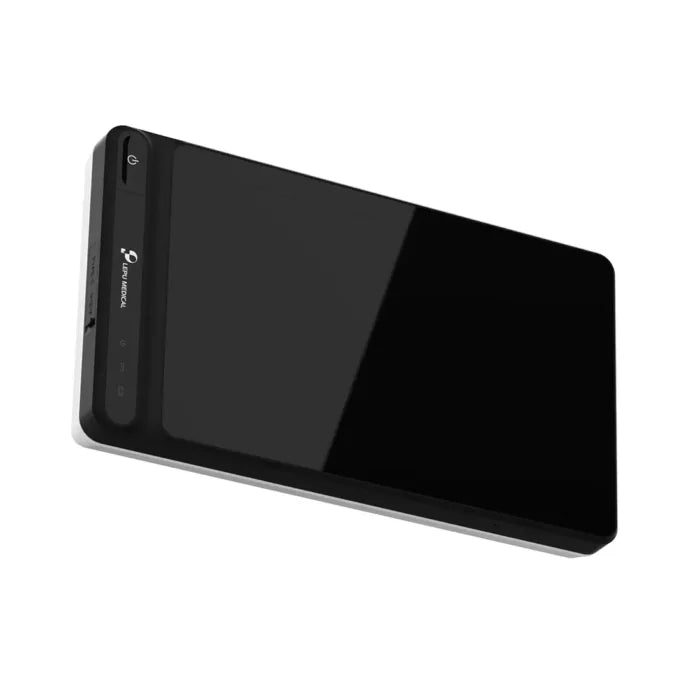

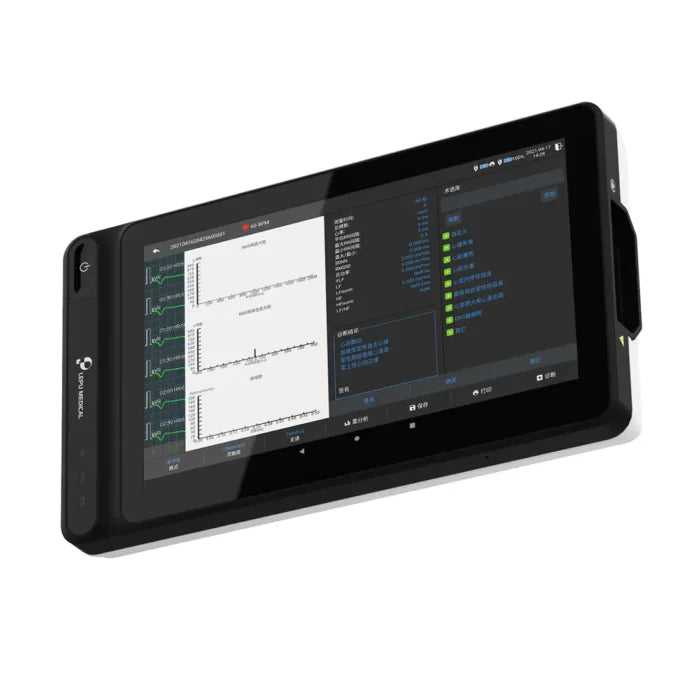

LeECG Tablet OS12 – Advanced Portable Multi-Lead ECG Tablet
The LeECG Tablet OS12 is a next-generation smart ECG system designed by Lepu Medical. Lightweight, compact, and highly accurate, it brings hospital-grade cardiac diagnostics into a portable tablet format suitable for clinics, medical institutions, emergency departments, home visits, and family healthcare.
Featuring a 7-inch high-resolution touchscreen, multi-lead acquisition (up to 18 leads), intelligent ECG analysis, large memory capacity, and seamless connectivity, the OS12 provides fast, reliable, and intuitive ECG operation in any scenario.
- 6 / 9 / 12 / 15 / 18-lead synchronised ECG acquisition
- 7” high-resolution capacitive touchscreen
- High-precision signal processing: 32 kHz sampling, ≥350 Hz frequency response, >140 dB CMRR
- Intelligent diagnostics: Glasgow and CWECG-SLA algorithms with automatic conclusions
- Pacing detection & electrode contact correction
- Advanced RR interval and HRV analysis tools
- Storage for 10,000 ECGs, expandable via USB
- Built-in camera for barcode/patient info scanning
- Up to 40 hours battery life
- Email transfer, LAN/WiFi connectivity, DICOM/HL7, FTP/SFTP
- Compatible with external laser printers and wireless thermal printers
- Lightweight, slim design: ≤27 mm thick, ≤1 kg
- Supports snap, suction, and crocodile-clip electrodes
| Display | 7-inch high-resolution capacitive touchscreen |
| ECG Leads | 6 / 9 / 12 / 15 / 18-lead acquisition |
| Sampling Frequency | 32,000 Hz |
| Frequency Response | ≥350 Hz |
| CMRR | >140 dB |
| Polarization Voltage Resistance | ±900 mV |
| Anti-Interference | High-performance filtering and stability |
| Diagnostic Algorithms | Glasgow algorithm, CWECG-SLA |
| Analysis Modes | RR analysis, HRV, auto mode, event mode |
| Sampling Modes | Pre-sampling, real-time, periodic, trigger |
| Data Storage | 10,000 ECGs internal; USB expansion |
| Data Transfer | Email, LAN/WiFi, DICOM, HL7, FTP/SFTP, USB |
| Patient Info Input | Built-in HD camera (barcode scanning) |
| Battery | Up to 40 hours standby |
| Dimensions | Thickness ≤27 mm |
| Weight | ≤1 kg |
| Electrode Types | Snap, suction, crocodile clip |
| Printer Compatibility | External laser printers (LAN/WiFi/USB); wireless thermal printer |
