Opticlar - Standard Diagnostic Set - Twin Handled, Wall or trolley mount

Product Properties

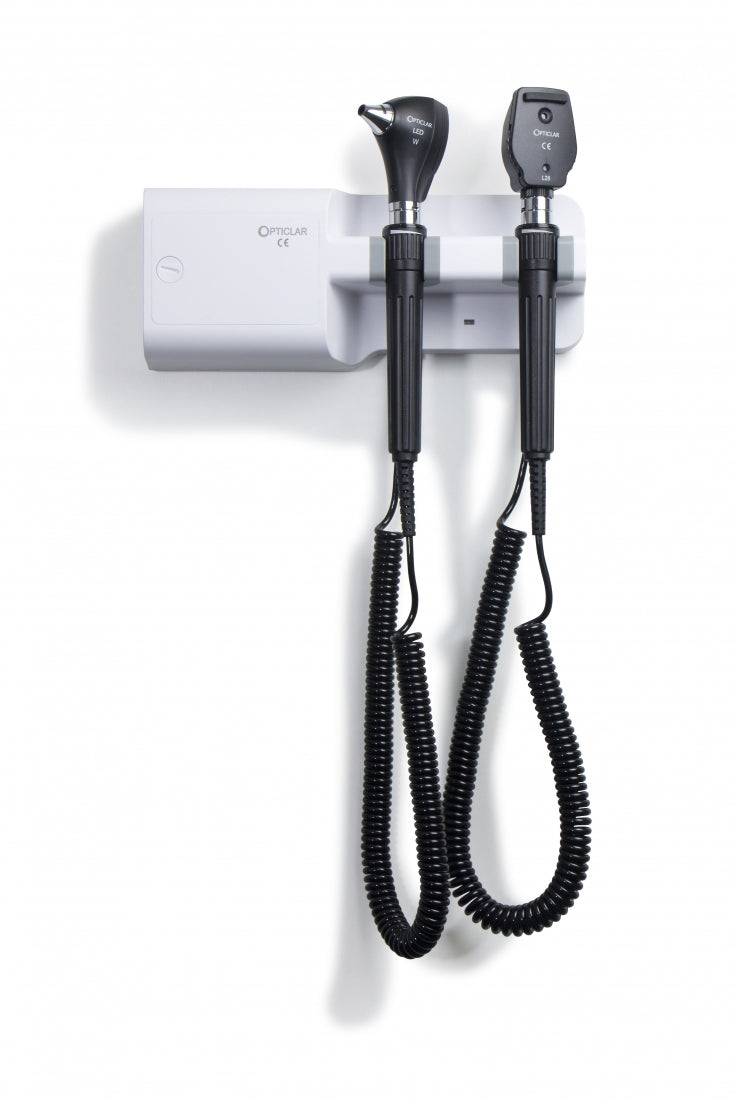

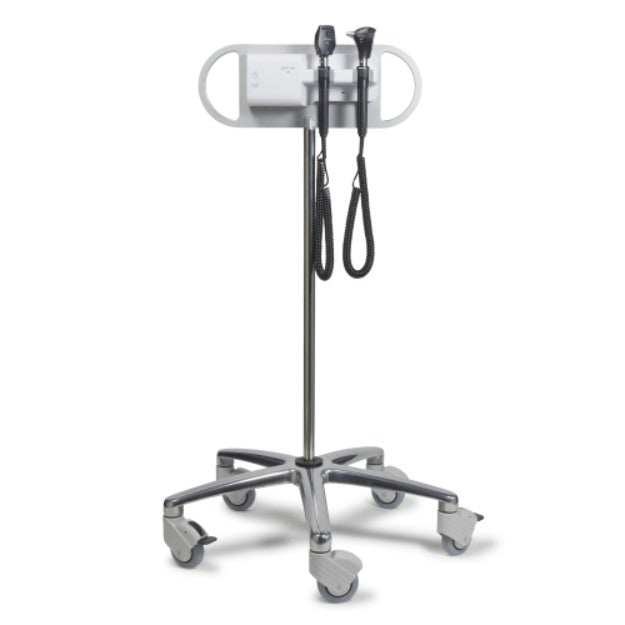

S2 Practice wall mount or trolley station
Wall or trolley mounted diagnostic station, provides mains power for the VisionMed Practice range of instruments. Available in single-bay or twin-bay configurations with fixed cord handles with a working radius of more than 3 metres. The smooth design and rounded profile is hygienic, easy to clean and minimises dust traps.

• C Cell or mains operation
• Auto on/off
• Out of cradle auto off after 5 minutes
• Rheostat brightness control on each handle
• Easy to assemble and install
• Available in wall, rail, mobile stand and pole mount options

Additional accessory bays available:

• Accessory storage box / tip dispenser
• Infra-Red thermometer holder, for Braun, AW or other thermometer
• BoSo Nova large dial sphygmomanometer

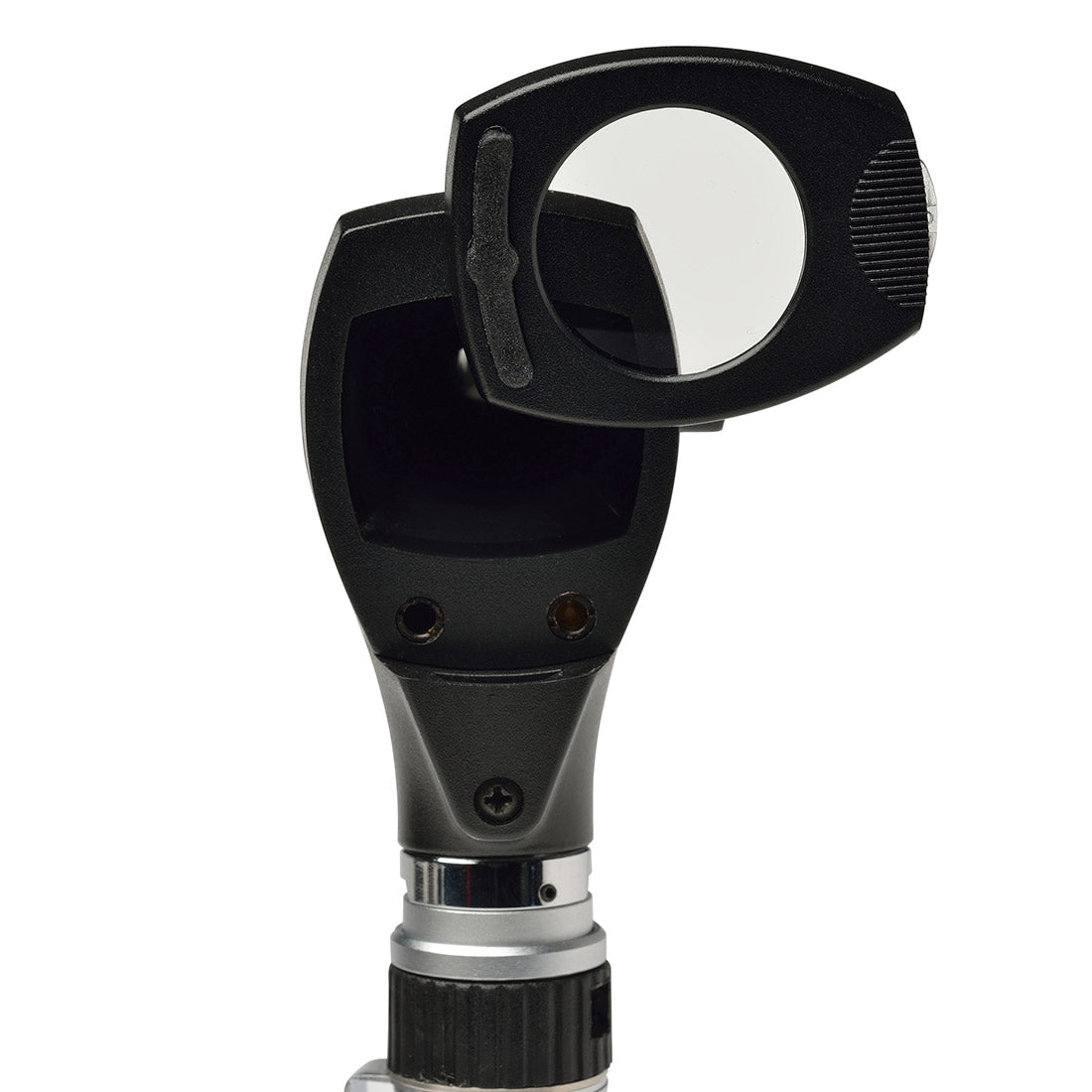

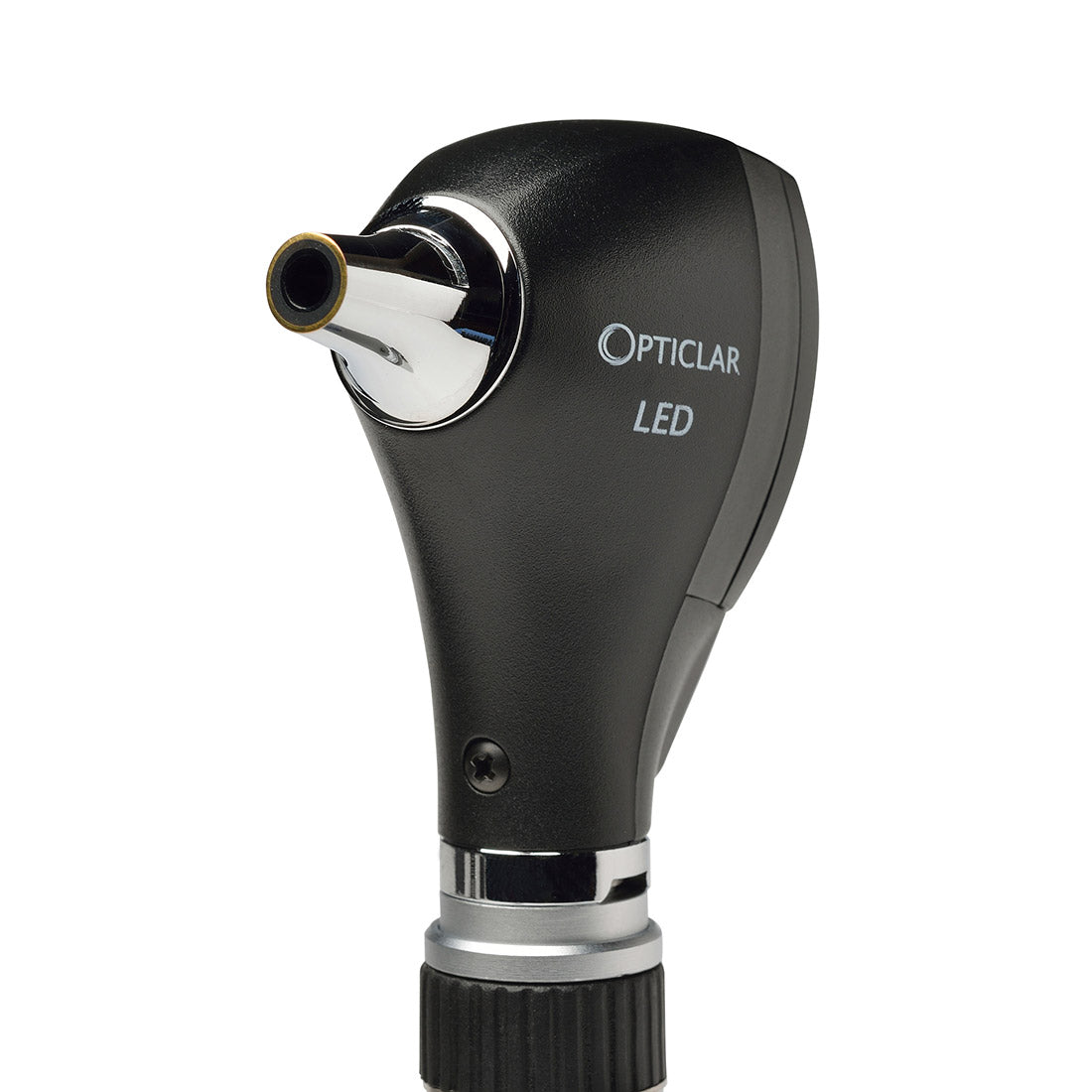

S1/2 Practice LED Fibre Optic Otoscope

• TrueTone™ LED illumination
• Distal fibre optics gives cool light to examination site with no reflections and provides excellent view of the tympanic membrane
• Swivel viewing lens cannot be lost and is guarded on lower edge from potential breakage
• 3x magnification from scratch proof window lens
• Wide angle viewing window for easy instrumentation under magnification
• Sealed system allows for pneumatic otoscopy
• Multi-voltage system, works with all power sources
• Disposable tips in 2.5mm or 4.0mm diameters
• Head available with German tip fitting or American style tip fitting. Please specify at time of ordering, otherwise American tip fit is supplied as standard

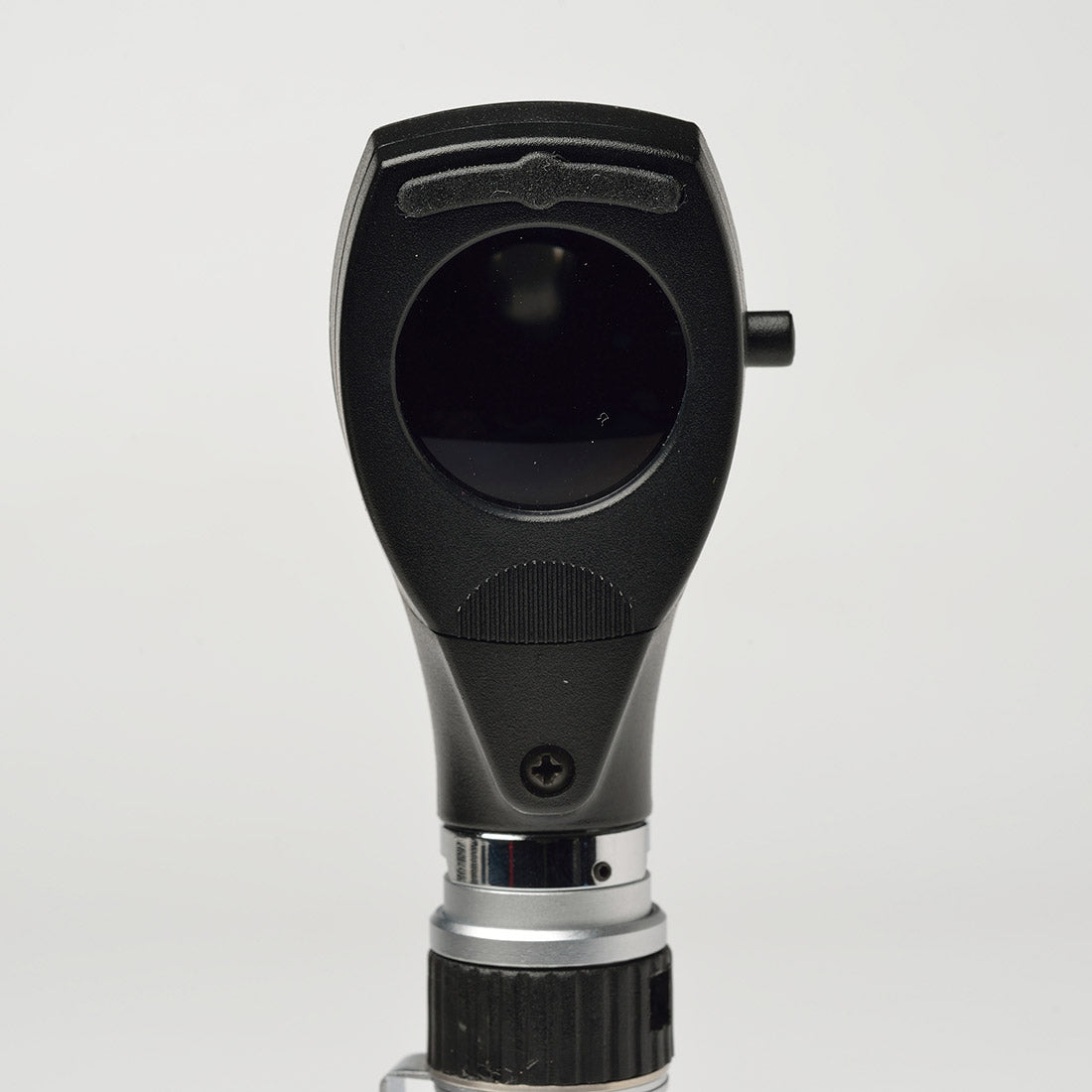

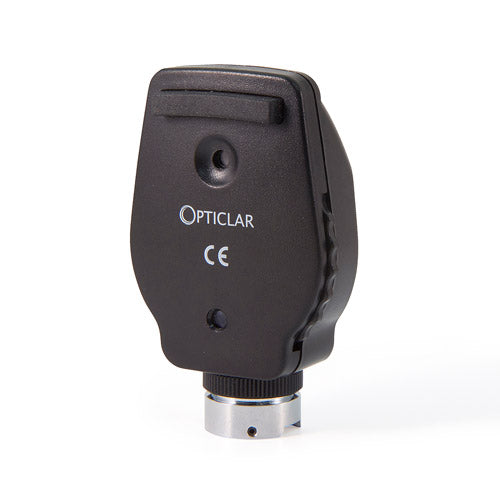

L28 Practice Ophthalmoscope

• Superior miniaturised optics facilitates entry into even very small diameter pupils
• Polarising filter practically eliminates corneal reflex and can be used on all apertures
• Sealed optics for long life and reduced running cost
• 28 lenses from -25 to +40d
• Independently selectable red free filter for use on all apertures provides increased contrast
• 18 filter/aperture combinations for increased diagnostic capabilities
• Cobalt blue filter to help detect corneal abrasions

Key Features

• Mains powered
• 3 mtr cord handles
• LED illumination: > 10,000 hours
• LED guarantee: 10 years
• Auto on/ off
• Out of cradle auto off after 5 minutes

Includes:
S2 Practice Wall or trolley station
S1 Practice Fibre Optic Otoscope
L28 Practice Ophthalmoscope
