Brandon Medical - Coolview CLED23 LED Examination Light TX Arm with LED technology - multiple mount options

Brandon Medical - Coolview CLED23 LED Examination Light TX Arm with LED technology - multiple mount options

Regular price £1,704.00 GBP
Regular price Sale price £1,704.00 GBP
Sale Sold out
Shipping calculated at checkout.
Mount

SKU:CLED23T1C

Product Properties

Coolview® CLED23™ Advanced best-in-class lighting intensity, anti-microbial examination lamp. Coolview CLED23 delivers the highest lighting performance and colour corrected light, reducing eye strain making the focus of the light vivid and tissues easily identified. Providing uncompromising lighting performance for the clinician, its high intensity performance and colour corrected light make the focus of the examination vivid and natural. The CLED23 is a perfect light for dermatology, ENT, Gynaecology and sensitive areas such as neonatal and ICU departments.

Highest Light Quality
CLED23 emits 60,000 Lux of intense bright light at 0.5 m, providing a pool of clear light during procedures. The light intensity can be altered through 4 easily selectable settings providing a suitable level of intensity for all procedures.

Large Illuminated Area
A large illuminated area of 190 mm diameter makes it easy to examine large areas of tissue and makes it easier to target the light on the patient.

High Colour Rendition
CLED23 reproduces all of the visible colours naturally and accurately. The high Ra of 95 describes the exceptionally high quality of white light whilst the high R9 of 90 measurement describes how it accurately reproduces visible red.

Colour Control Settings
CLED23 allows the user to adjust the colour temperature of the light source. This enhances the clinician’s ability to recognise and distinguish tissue conditions. The warm white (3,500 °K) setting is ideal for dermatological examinations and the daylight white setting (4,500 °K) is ideal for the recognition of blood vessels.

Lasting Anti-microbial Protection
The CLED23 uses an anti-microbial active substance which is moulded into the lamp head, inhibiting the growth of micro-organisms including MRSA. This is more than an external coating and allows the lamp to be permanently resistant to contamination. Tests have shown that 99% of bacteria and germs are destroyed using the active substance.

Full Rotation of Light Head

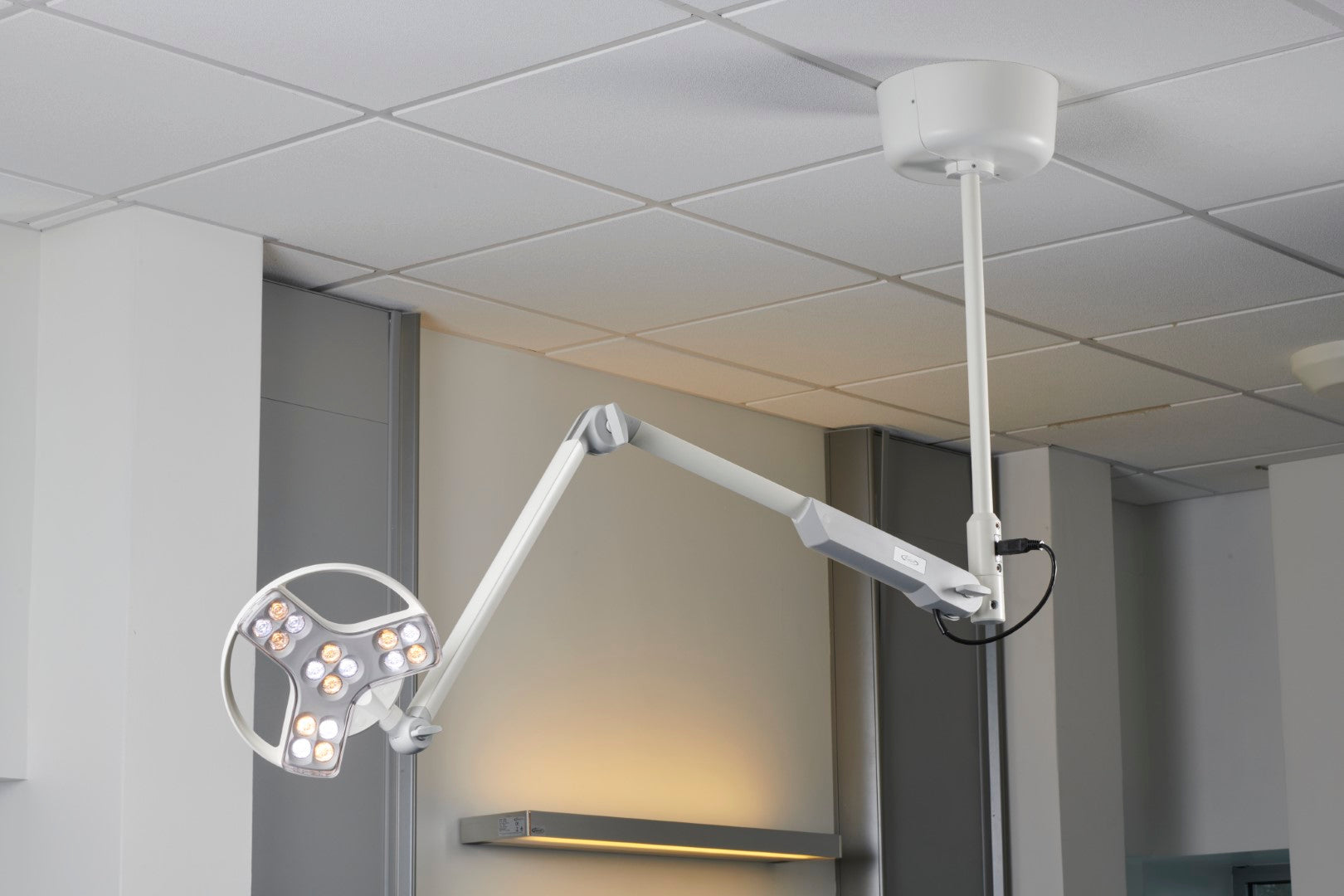

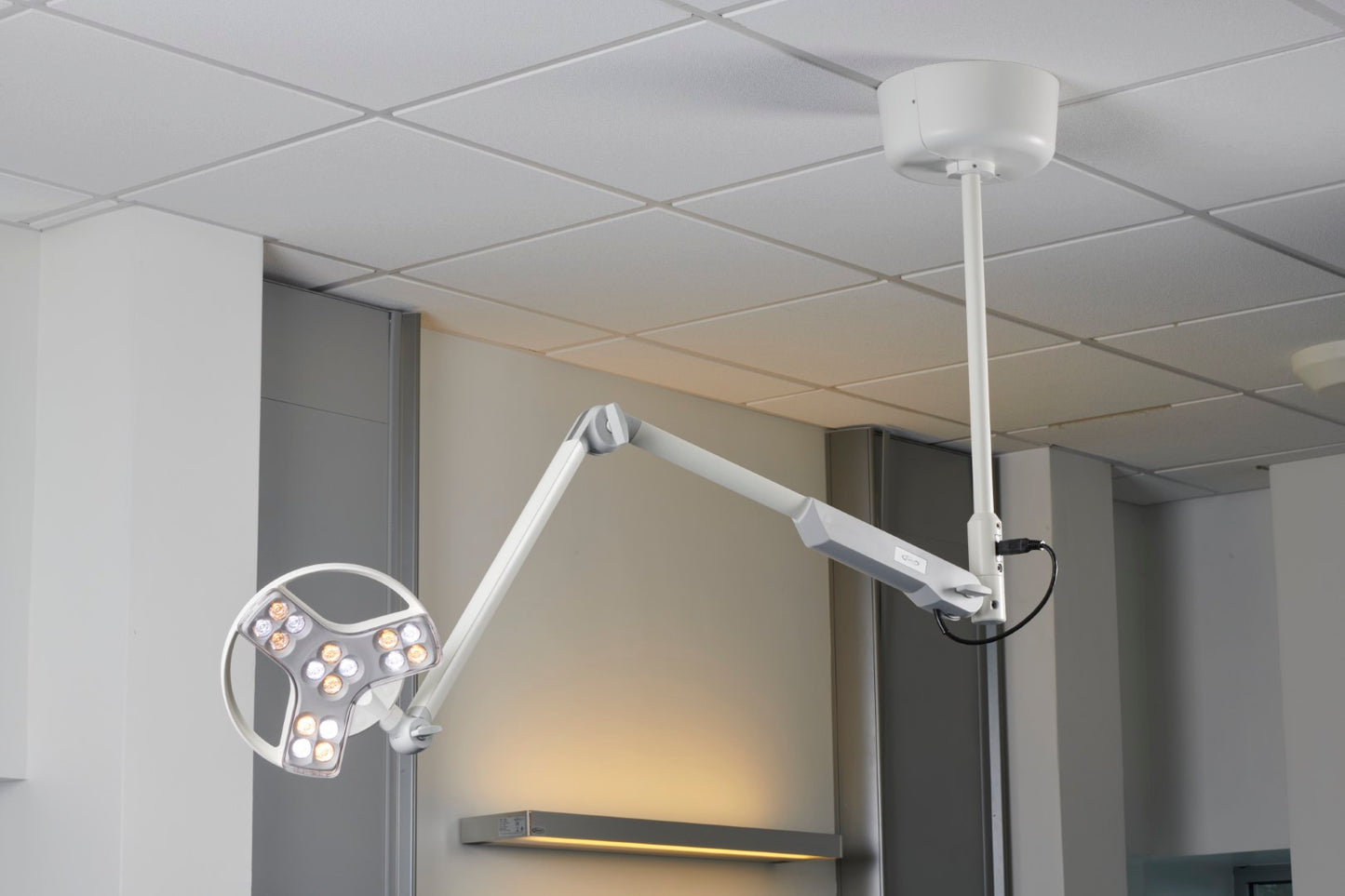

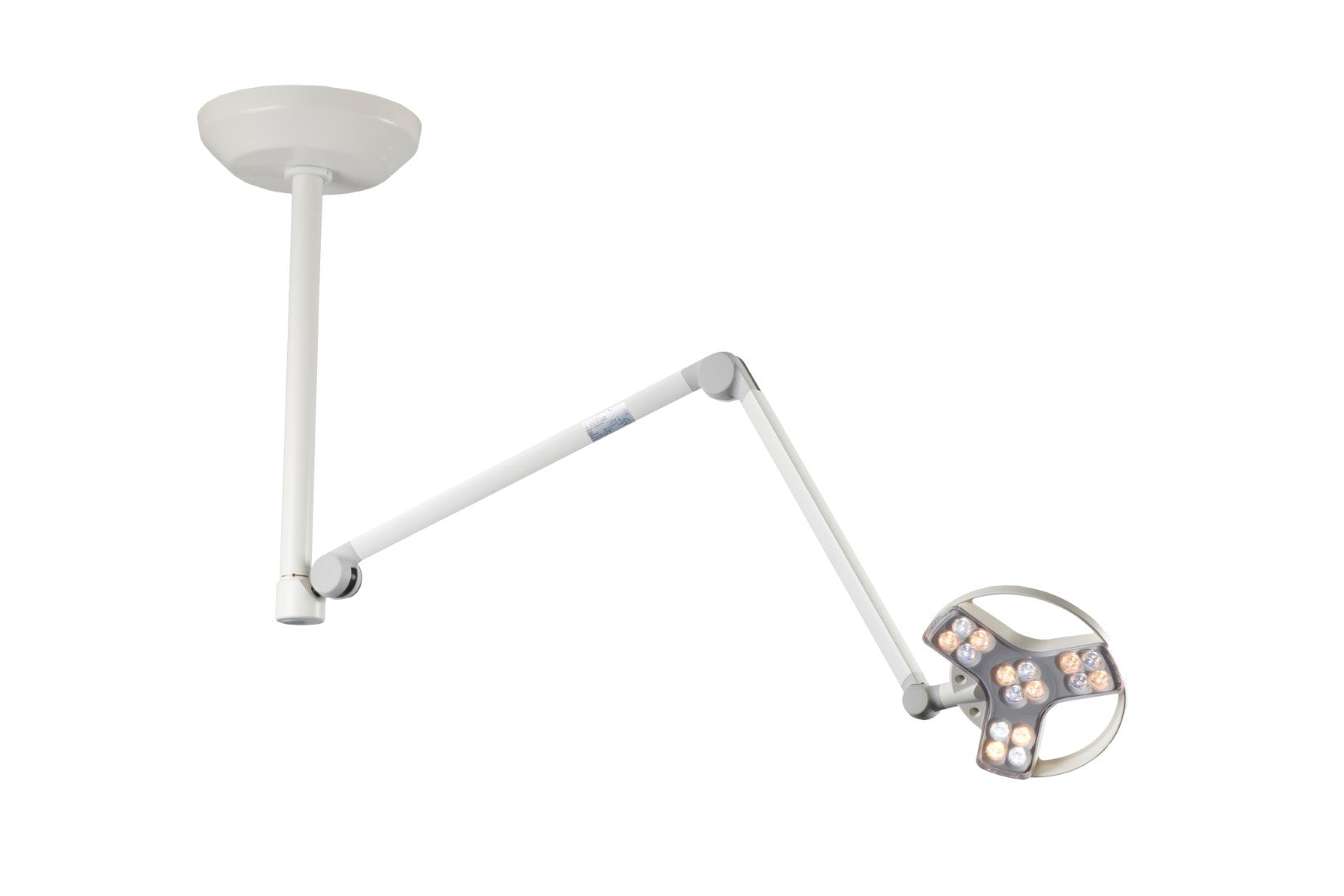

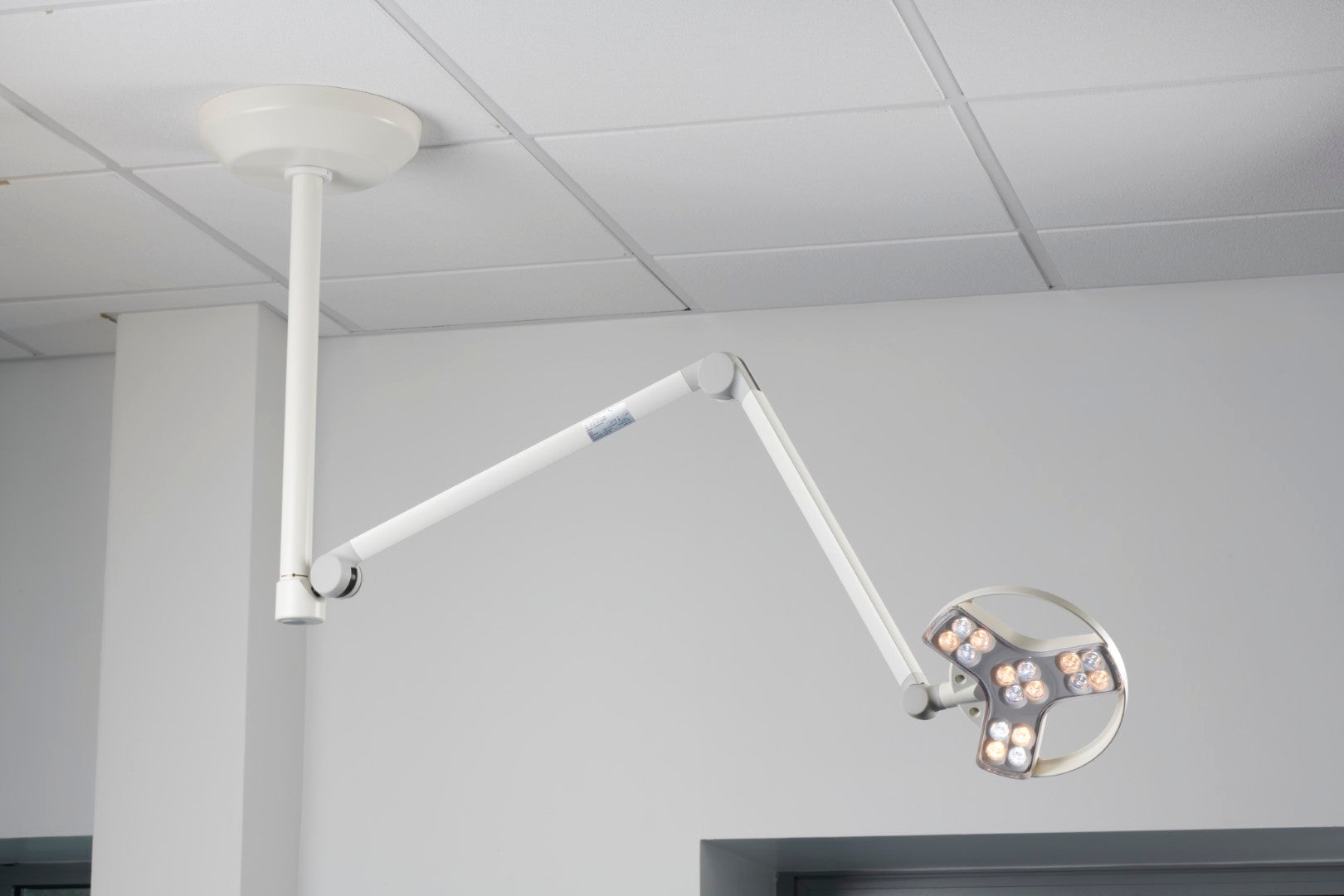

The Coolview CLED23 light head boasts 360° rotation. This allows the user to position the light beam to suit any procedure, without any restrictive stops or twisted cables. This also means the examination light can be used to provide ambient room lighting by reflecting light from the ceiling. This is a feature often used in neonatal care to provide night lighting. Ceiling mounted models (CLED23T1C) also have unrestricted 360° rotation at the ceiling pole providing even more positioning flexibility.

Long Arm Reach, Large Angular Movements & Spring-Balanced Positioning
The exceptionally long, 1200 mm arm reach of the CLED23 ensures the powerful beam can be positioned all around the patient couch. This allows for ‘head to toe’ examination of the patient without the need for patient repositioning during examination. Innovative spring-balanced arm system ensures the light is positioned effortlessly, remains fixed in place and is maintenance-free.

Fully Enclosed Light Head and Intuitive Control Panel

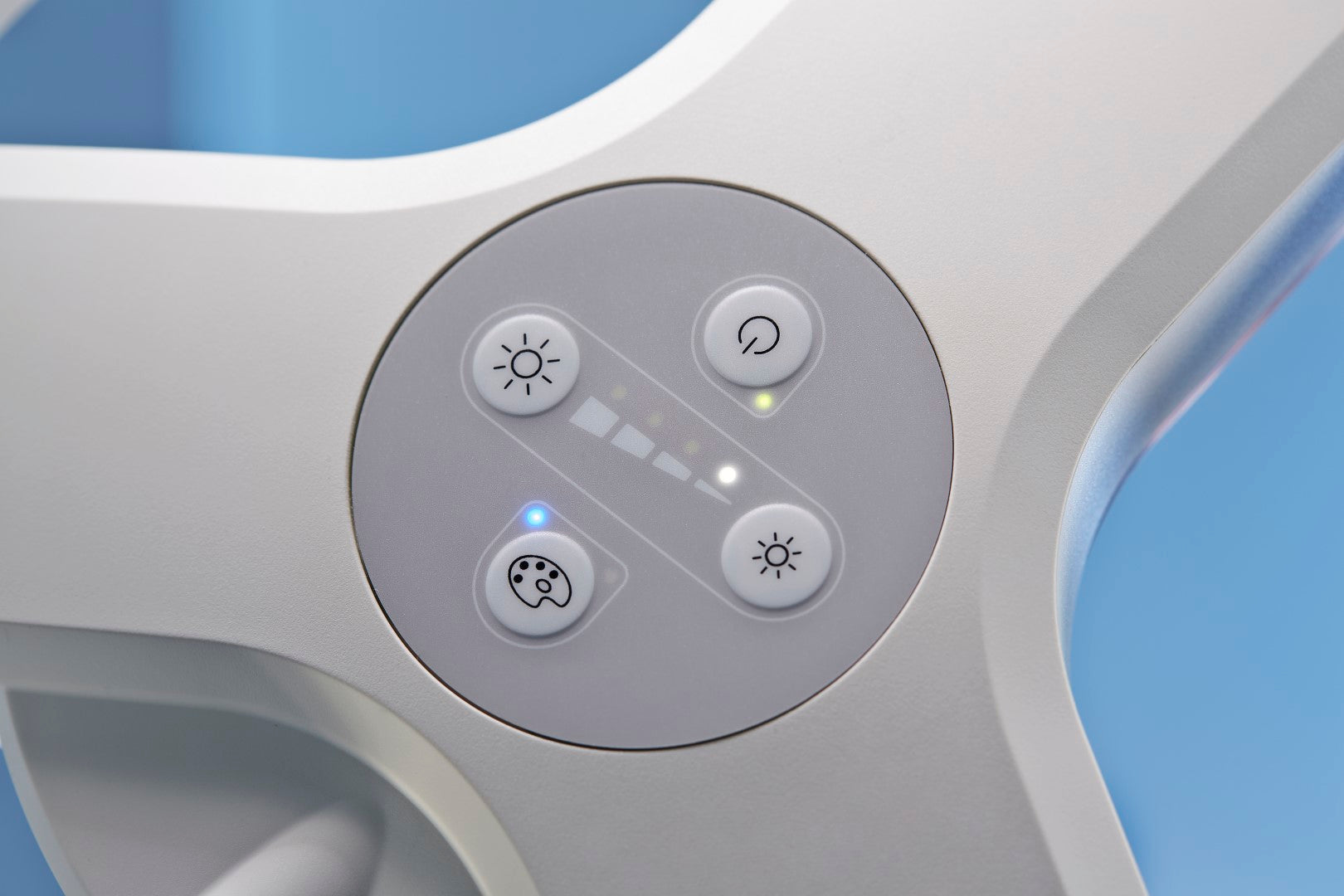

The light head is sealed to prevent the ingress of dust and moisture to IP20. The easy to use and ergonomic control pod allows all lighting features to be adjusted with a simple press of the button.

Mountings

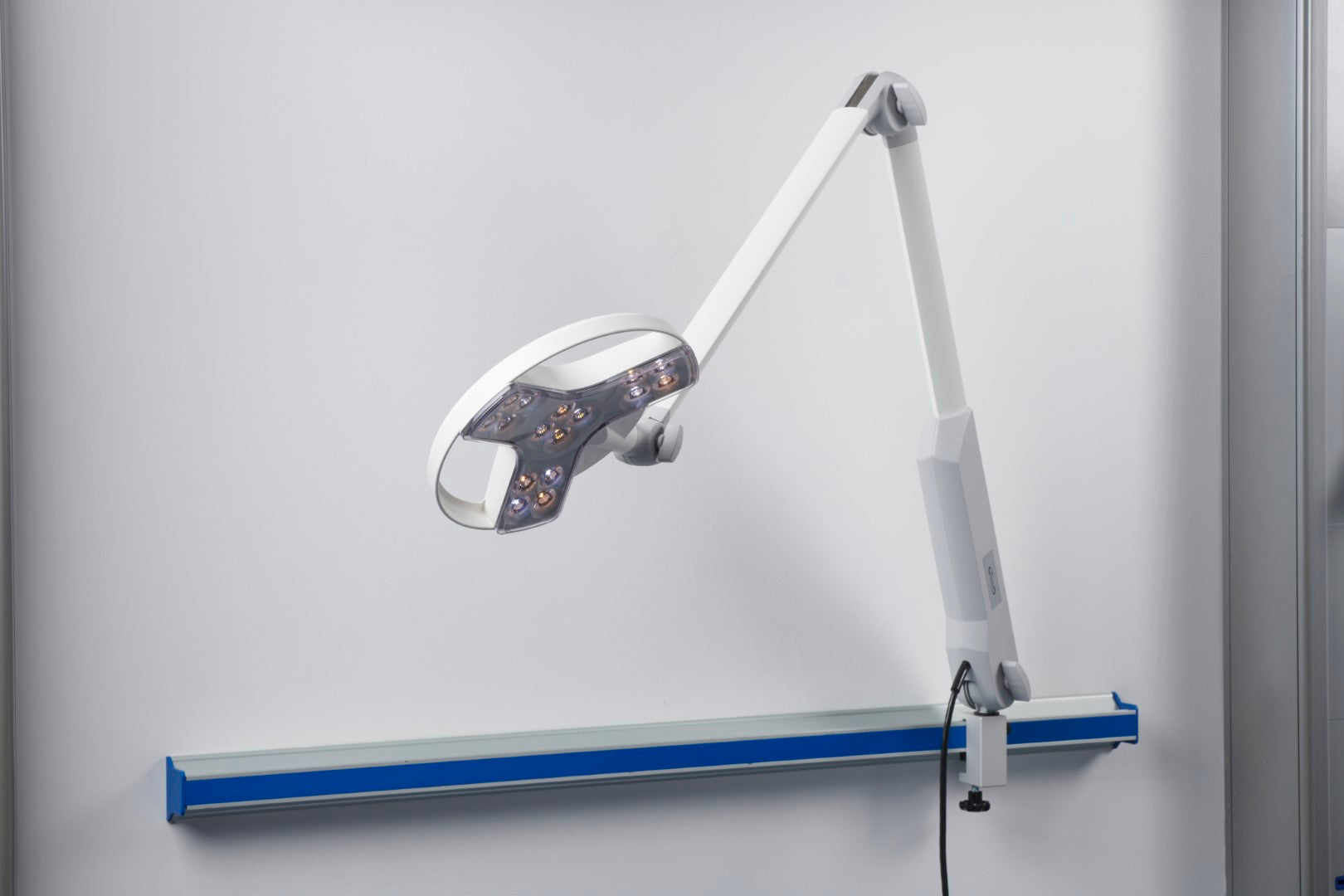

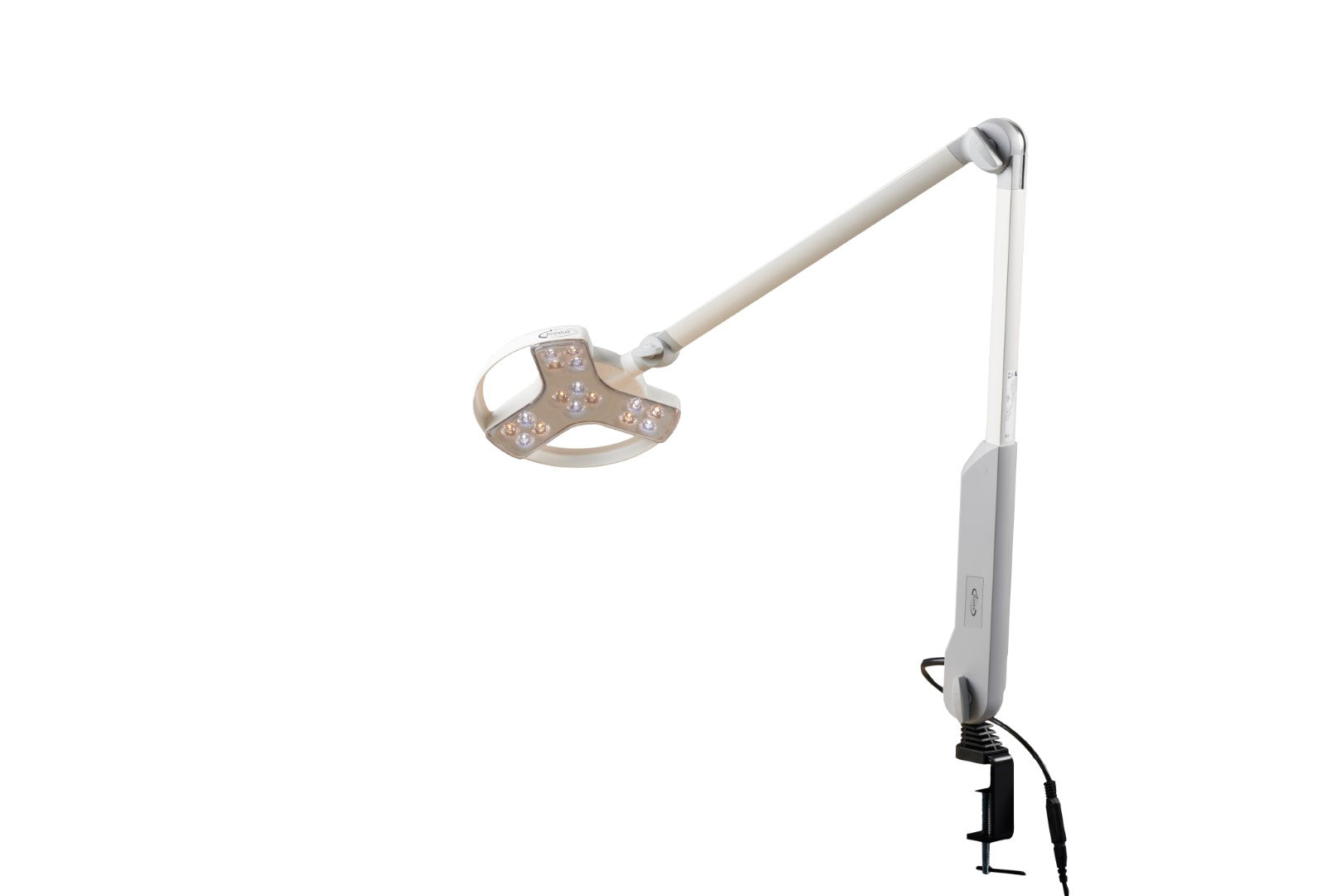

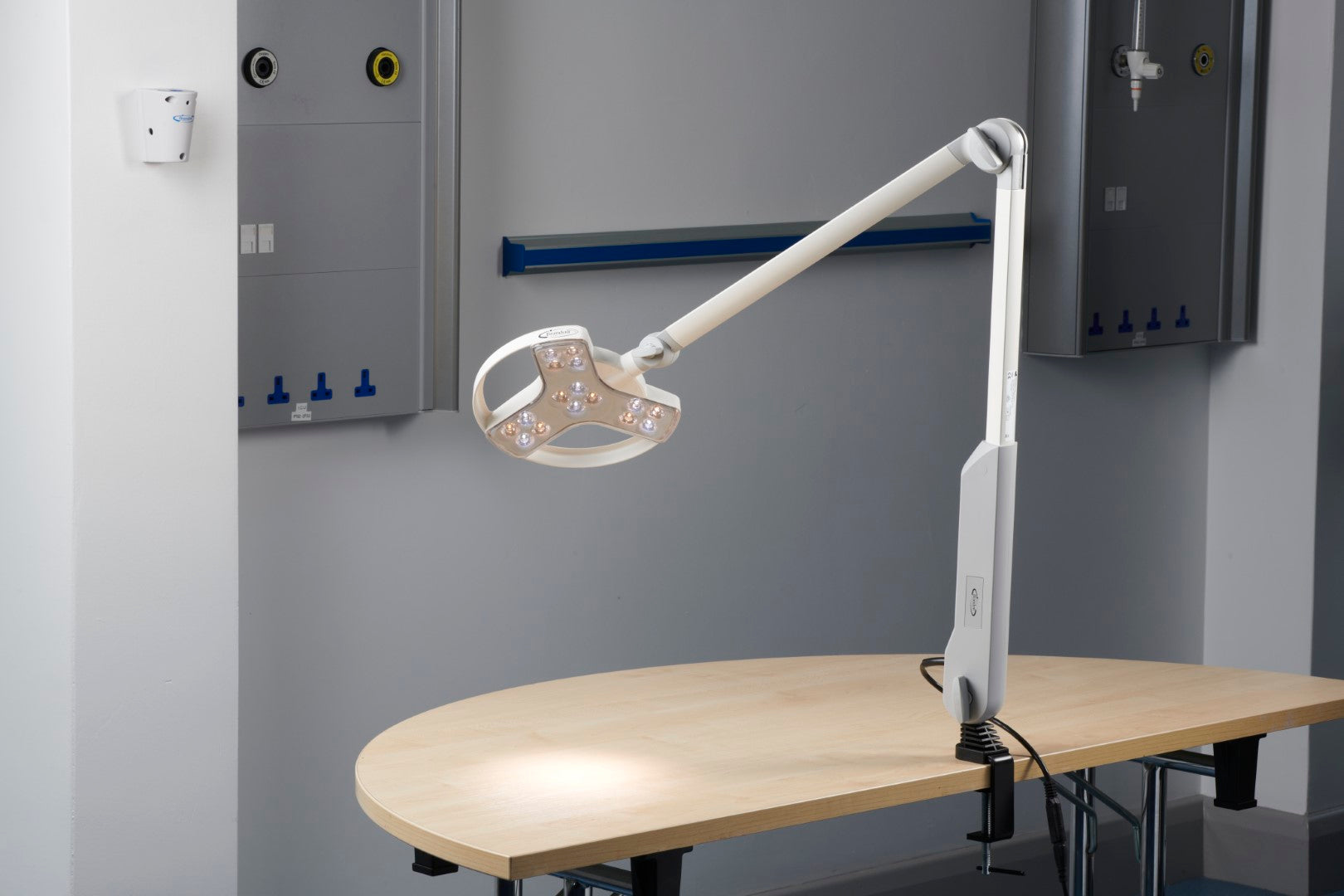

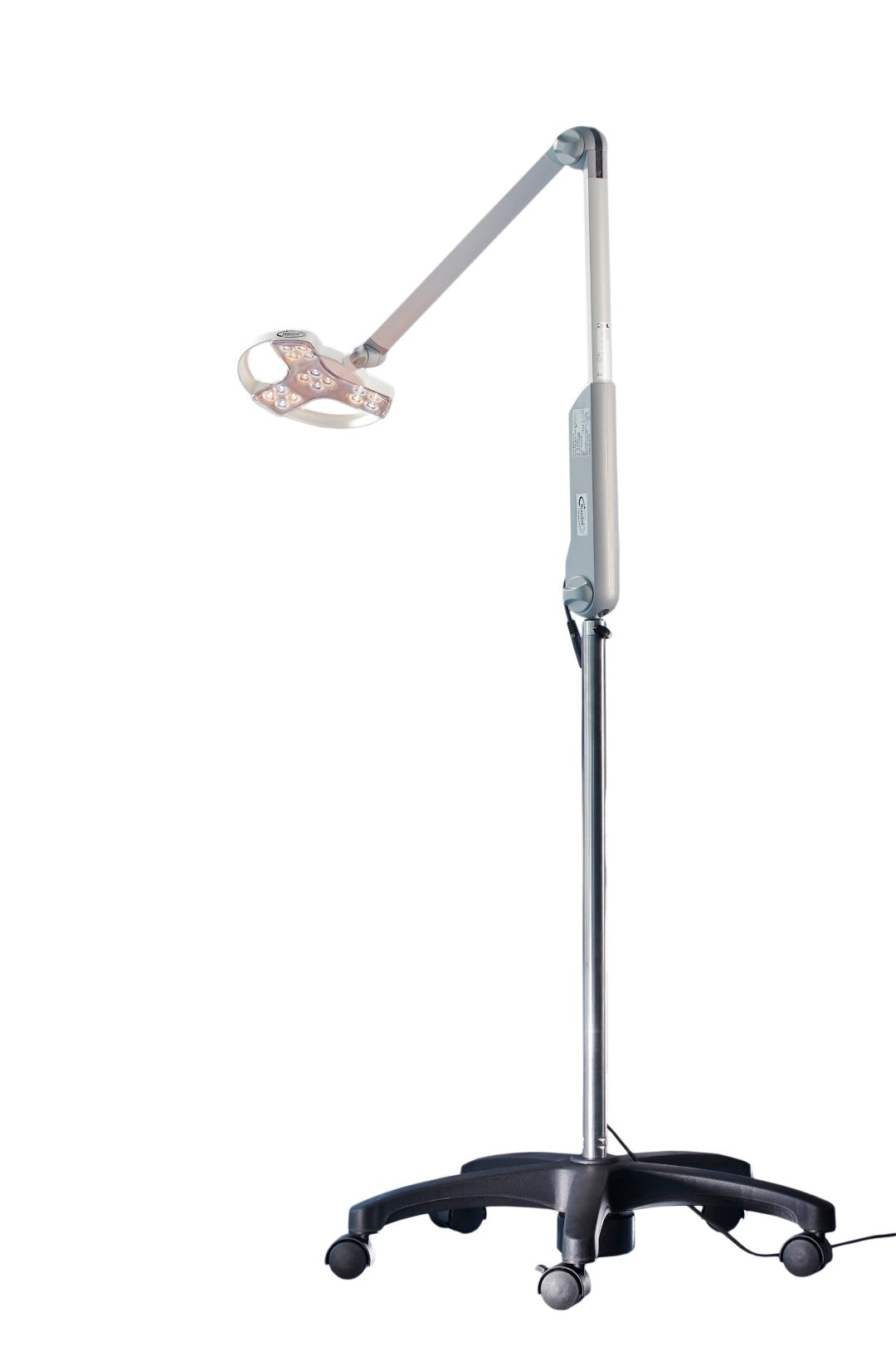

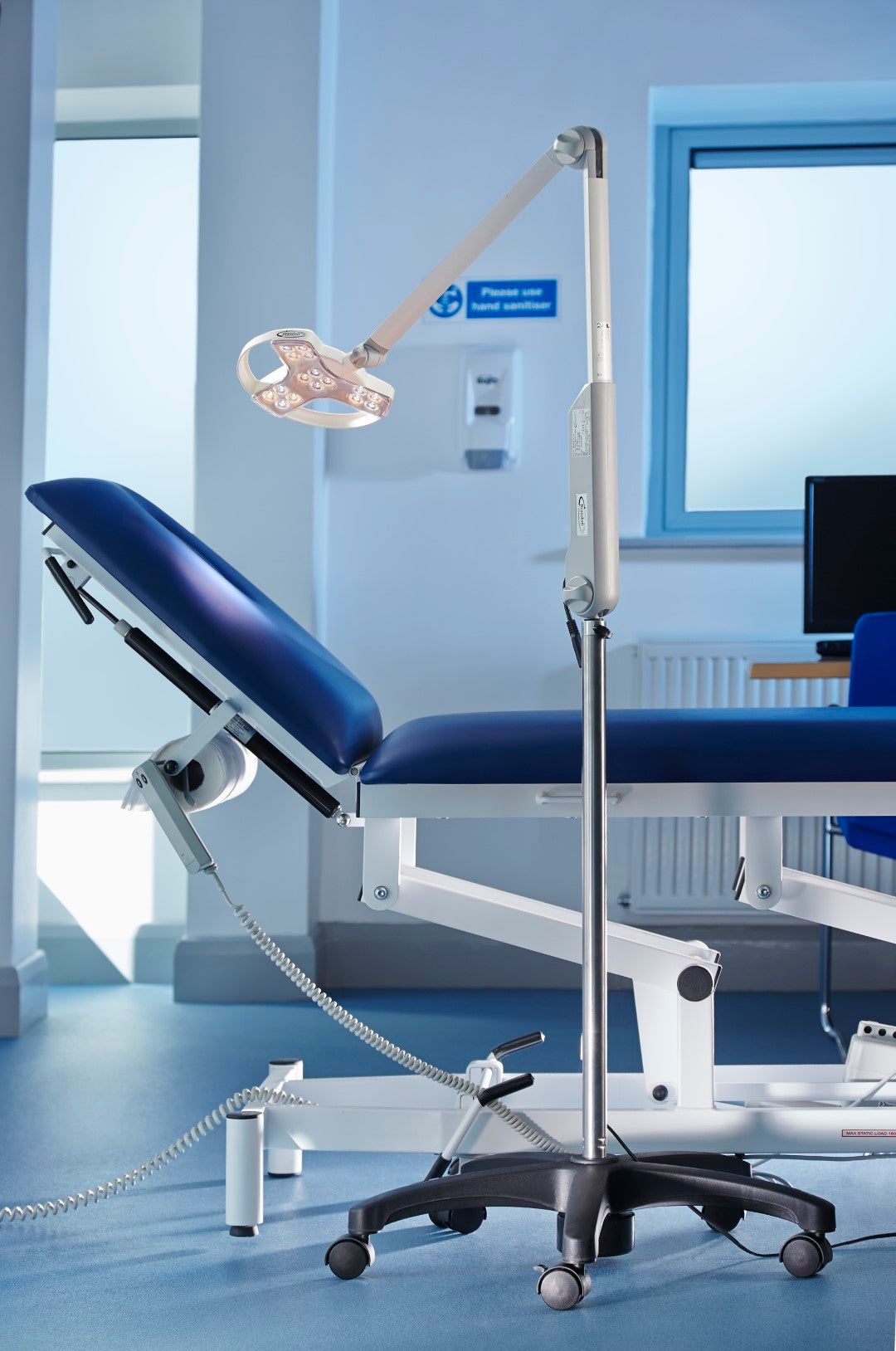

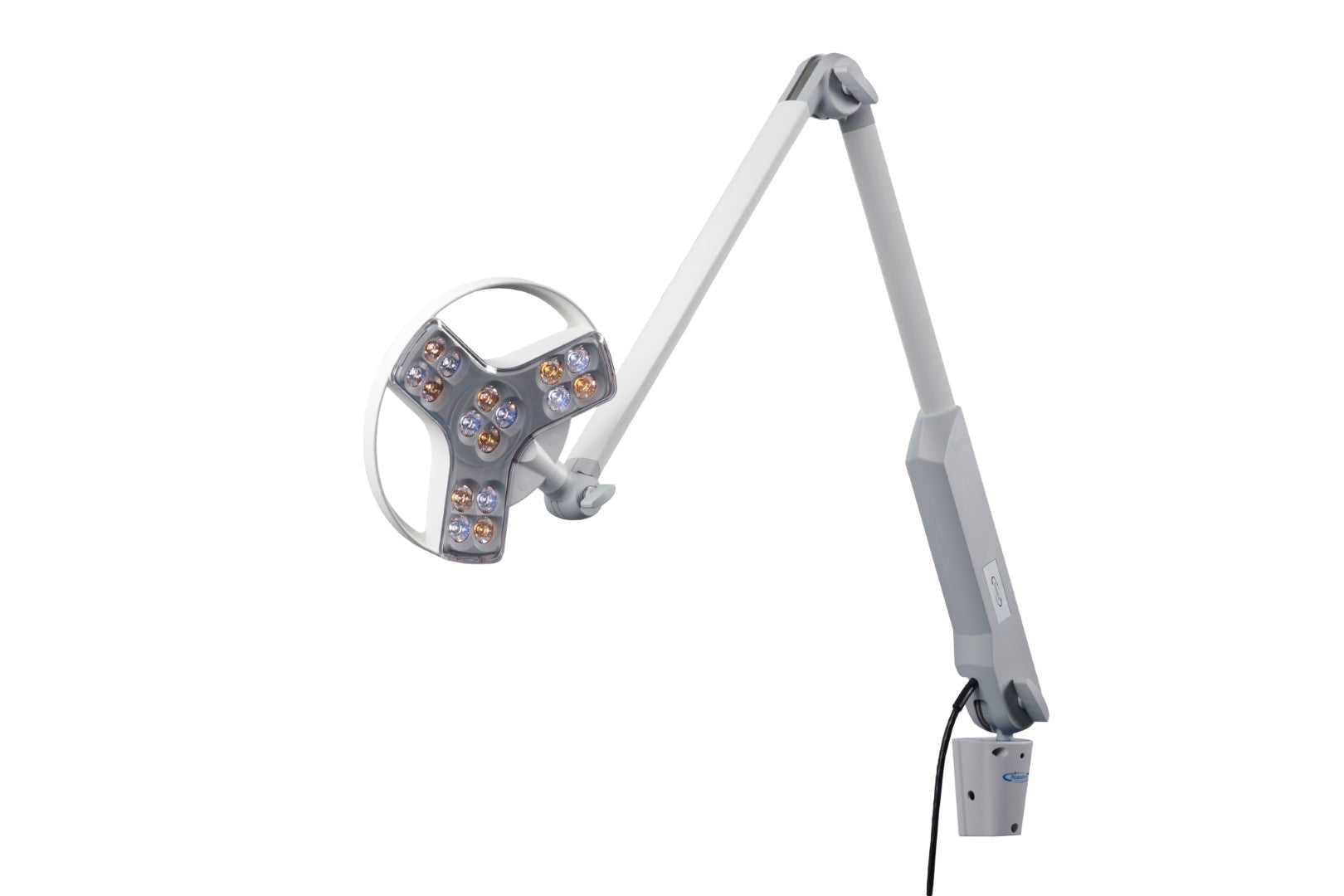

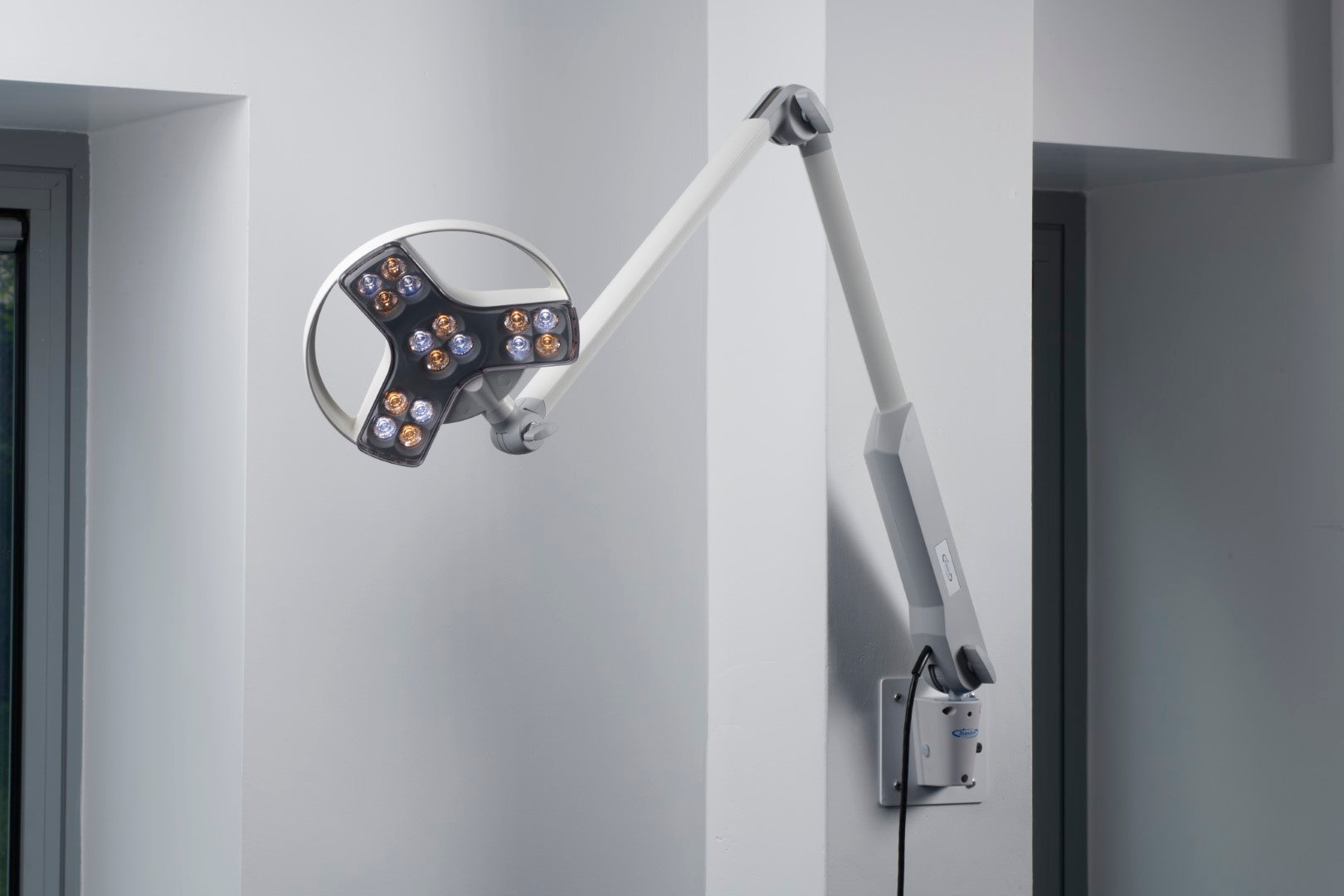

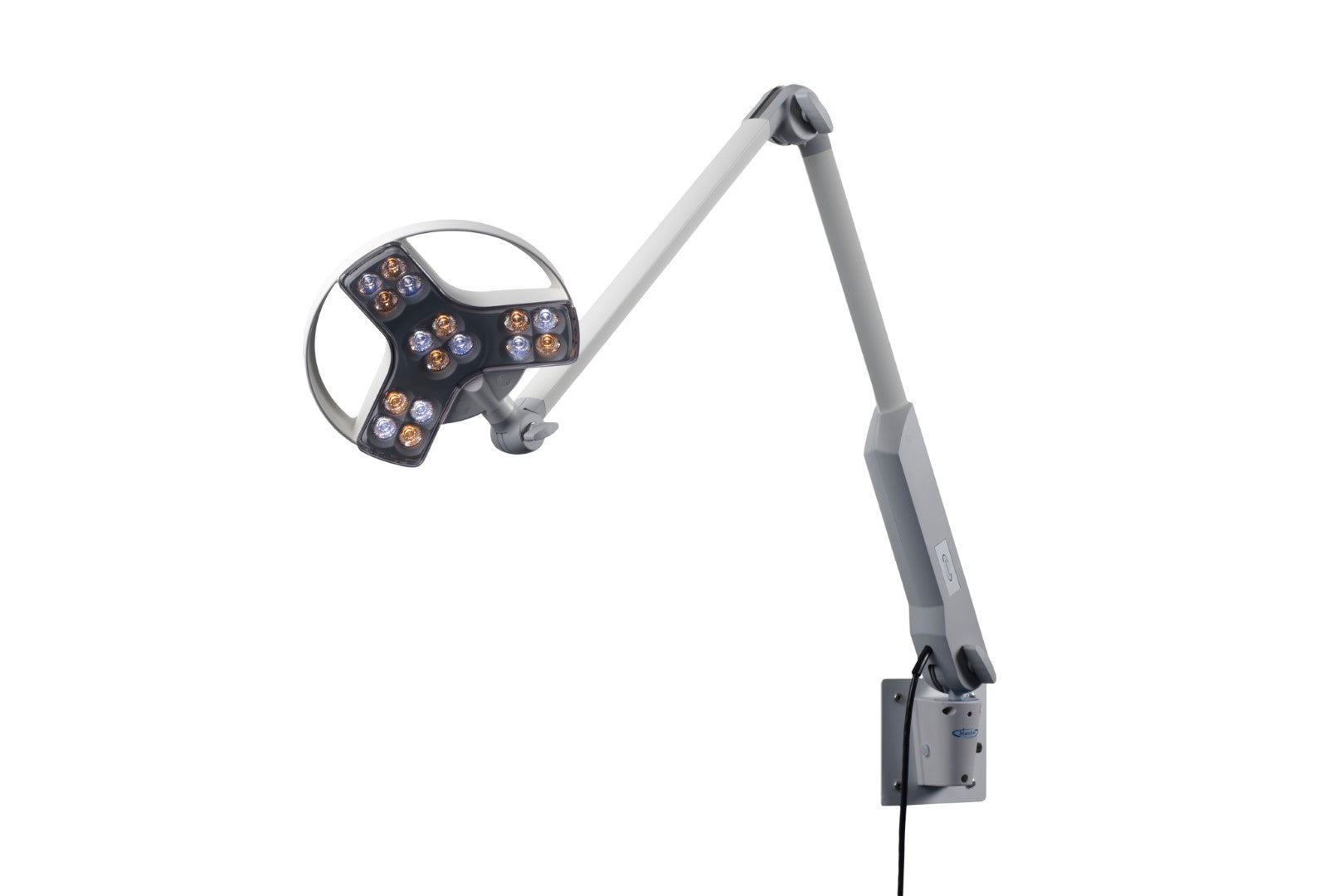

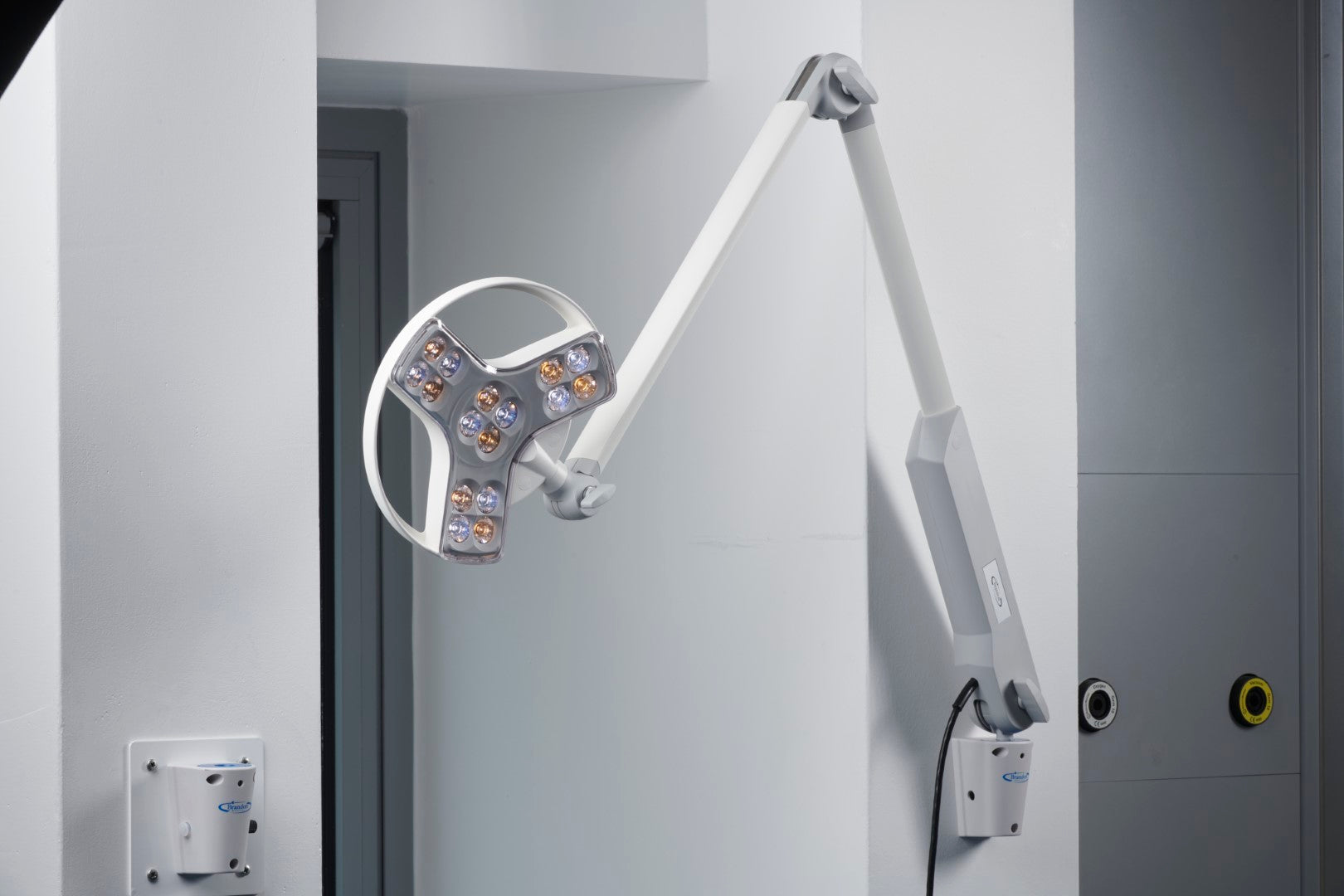

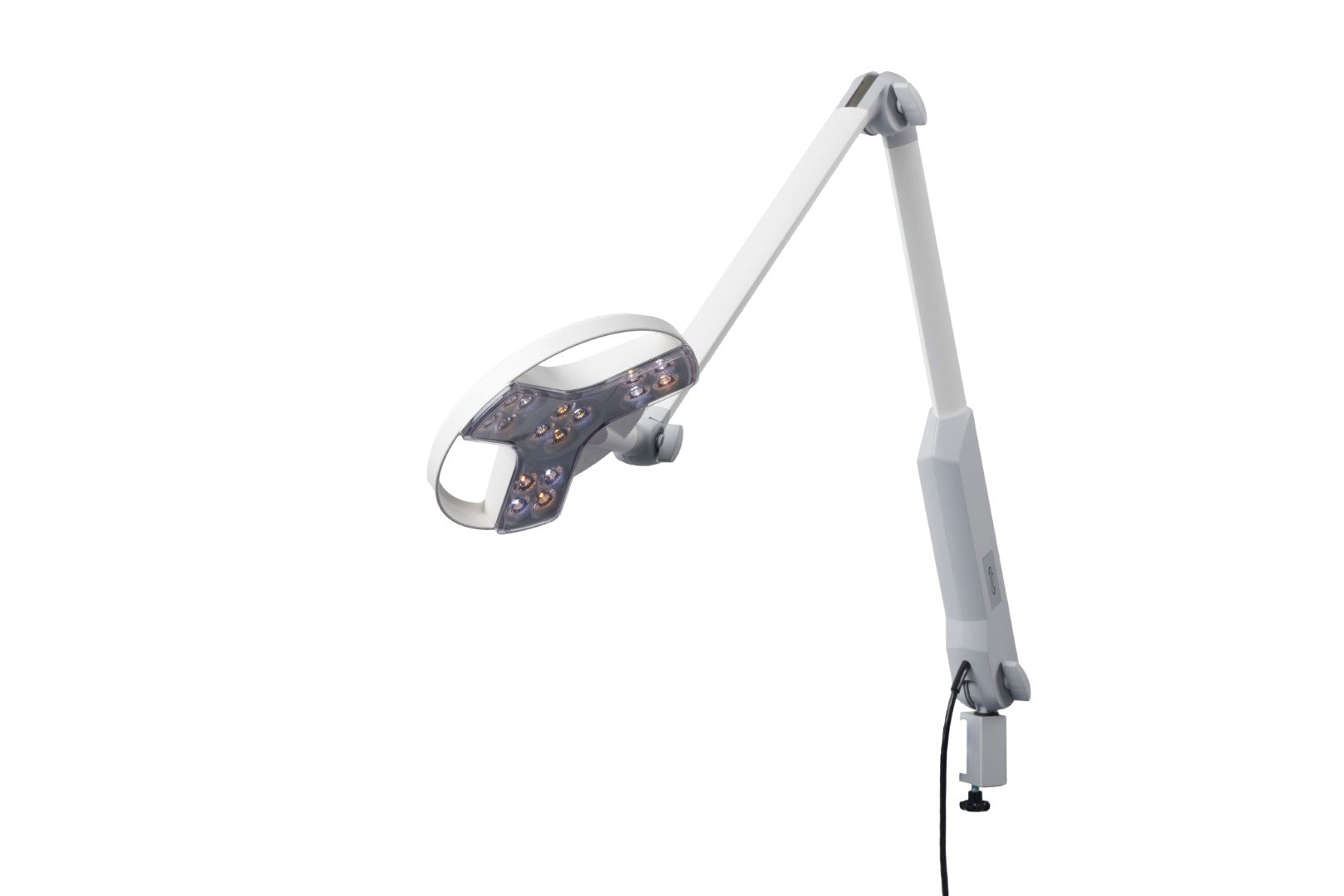

The Light can be specified for mounting on the Ceiling, Wall (with or without Backplate), Desk, “Medirail” or on a Mobile Wheeled Base.

Key Features

General System Information CLED23T1C CLED23TXC CLED23TXBP CLED23TXDP CLED23TXMP CLED23TXRP CLED23TXWP
Lamphead/Arm Type CLED23T1 CLED23TX
Mount Type Ceiling Stem Ceiling Ltd rotation Stem Backplate Wall Mount Desk Mount Mobile Base Rail Mount Wall Mount
System Weight (kg 8.1 5.6 2.1 2.4 10 2.2 2.1
Additional Information Direct Electrical Supply required to Stem
Power Lead - 1.8m C7 to UK plug (supplied loose)
In line C7 connector
Medical Device Classification
I
I
Electrical Classification II
Type of luminaire Examination (Luminaire for diagnosis)
Electrical conformity BS EN 60601-1; BS EN 60601-2-41
Conformity CE (EU MDR 2017/745)
