MIR - Spirobank II Basic Spirometer with resuable turbine

Product Properties

Low cost handheld diagnostic Spirometer with intepretation. Measures basic parameters. PC connectivity via USB.

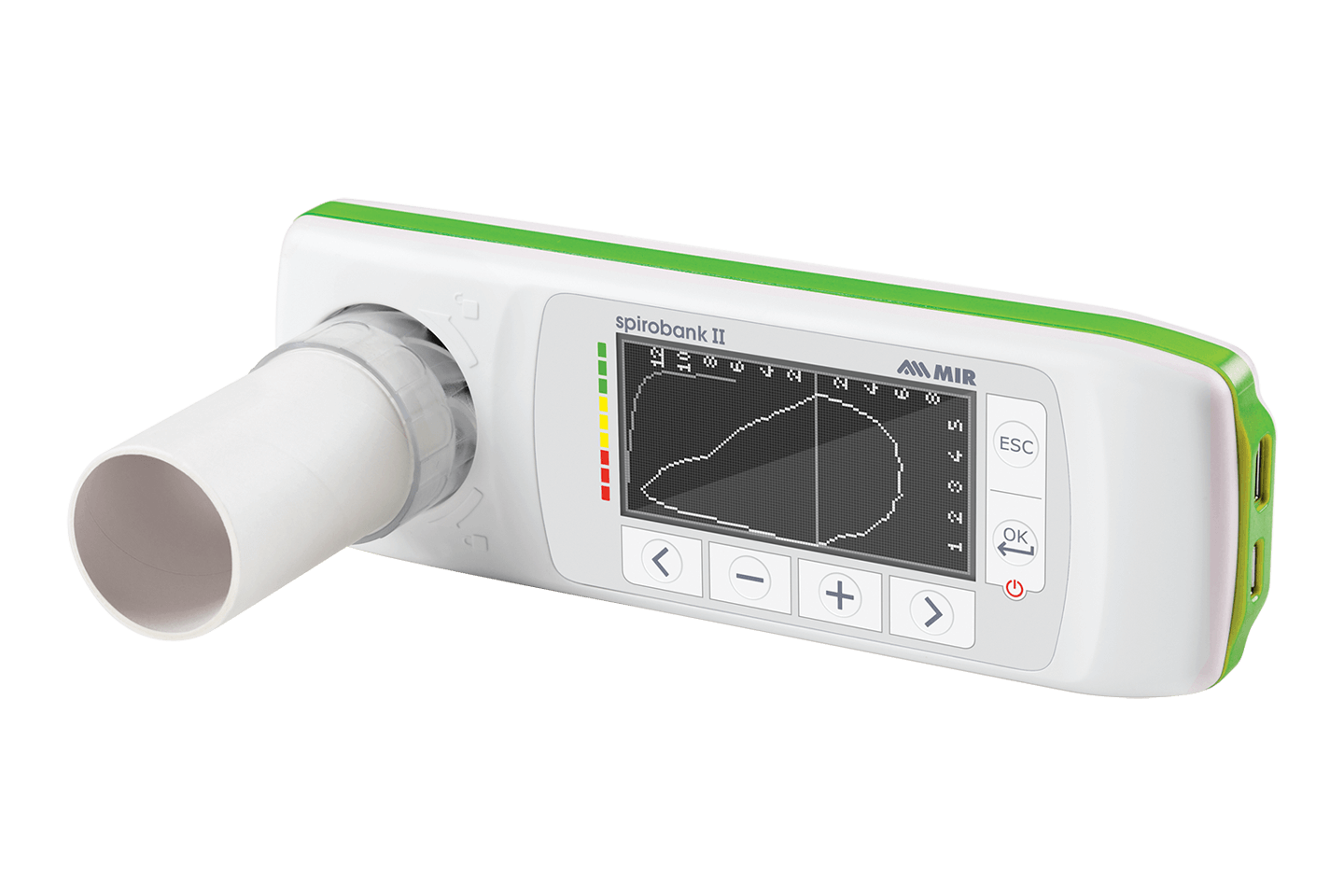

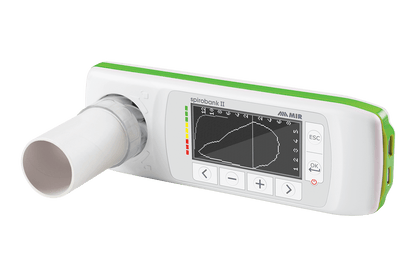

The Spirobank II® Basic is a handheld, portable diagnostic spirometer designed for use in environments where it’s only necessary to take basic measurements of the main spirometric parameters.

Its pocket size design with rechargeable long-life battery makes it ideal for use in situations where remote testing is required. The user interface is fast and intuitive to operate with an icon-based navigation menu on a backlit, high resolution display. lt can be used as a “stand-alone” with onboard memory that is capable of storing up to 10,000 test results. It can also connect to a PC via USB allowing for real-time spirometry testing, and downloading of test results stored on the device using the free MIR WinspiroPRO® PC Software.

The Spirobank II® Basic measures FVC, FEV1, FEV1%, PEF, FEF25–75, FET, Extrap. Volume, Lung Age, VC, IVC, IC, ERV and PRE and POST Bronchodilator comparison. Results are previewed on the display following a test, with a flow/volume graph in addition to the patient’s actual spirometry readings for immediate assessment. It also features a traffic light health indicator for easy interpretation of results.

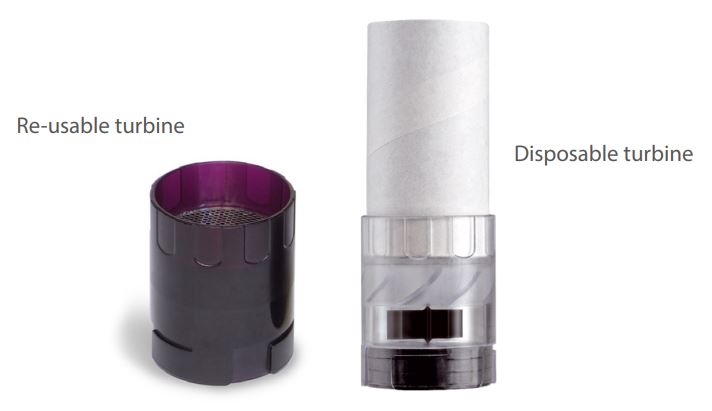

Re-usable and disposable consumable options
The Spirobank II® Basic can be used with both re-usable and single-use disposable turbines. Re-usable turbines are used with standard adult one-way valve mouthpieces. The single-use disposable turbines have a pre-connected mouthpiece and are individually factory calibrated and packaged.

Key Features

• Easy to use handheld spirometer -navigate easily through the icon-based menus on a clear, high resolution screen
• Measures main spirometric parameters - perfect for simple spirometry testing
• Traffic light health indicator -a visual way to easily interpret test results
• Large memory storage - store up to 10,000 tests
• USB connectivity to PC -download results stored on the device and conduct real-time spirometry using WinspiroPRO®PC software.
• Built in rechargeable battery
