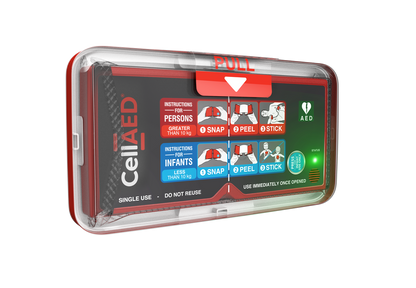

CellAED- World's first personal AED- standalone

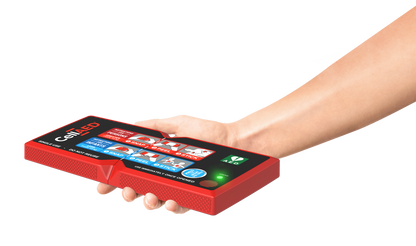

Your handheld, smart personal AED (Automated external defibrillator), for use in the treatment of sudden cardiac arrest in the home, workplace or community.

For every home, business and community.

Alternatively order a CellAED for life™ 12 month membership ( Cell AED and membership) – Seal Medical

Time is everything

Be prepared and confident to act quickly to save a life. CellAED^® can be applied in seconds. CellAED® is designed to save lives from sudden cardiac arrest. An arrest can happen to anyone, anywhere, at any time. When sudden cardiac arrest happens, your heart stops pumping blood. Within seconds, people experiencing cardiac arrest fall unconscious. At that point, you have only minutes for someone to save your life. To save you, someone nearby needs to call emergency services, start CPR, and apply an automated external defibrillator (AED). An AED can coach people to provide CPR and provide a small electrical shock to the heart to start it beating normally again. With CellAED®, you can ensure there is always an AED nearby to help save your life, or the life of someone you love, when sudden cardiac arrest happens

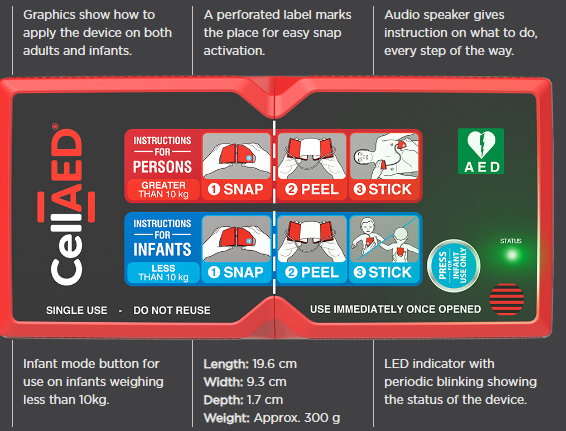

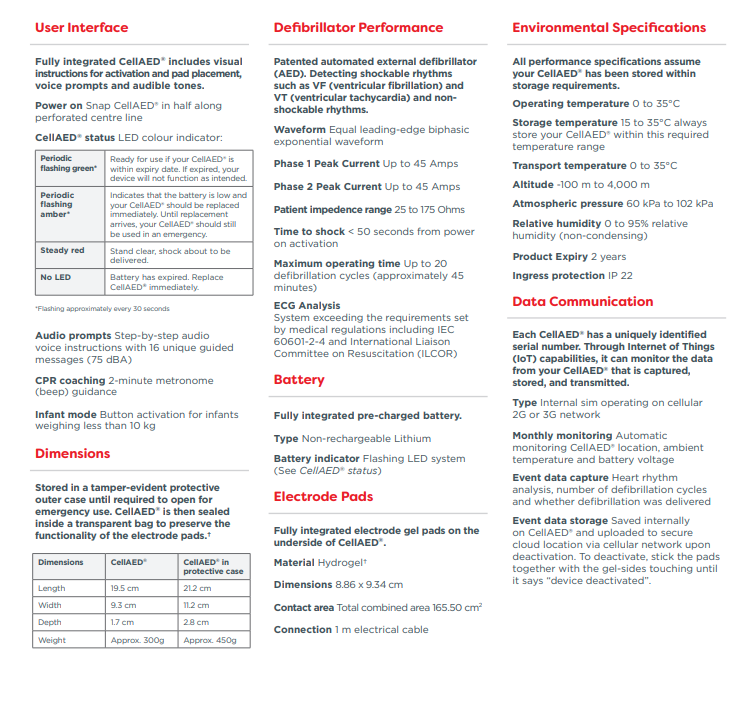

User Interface

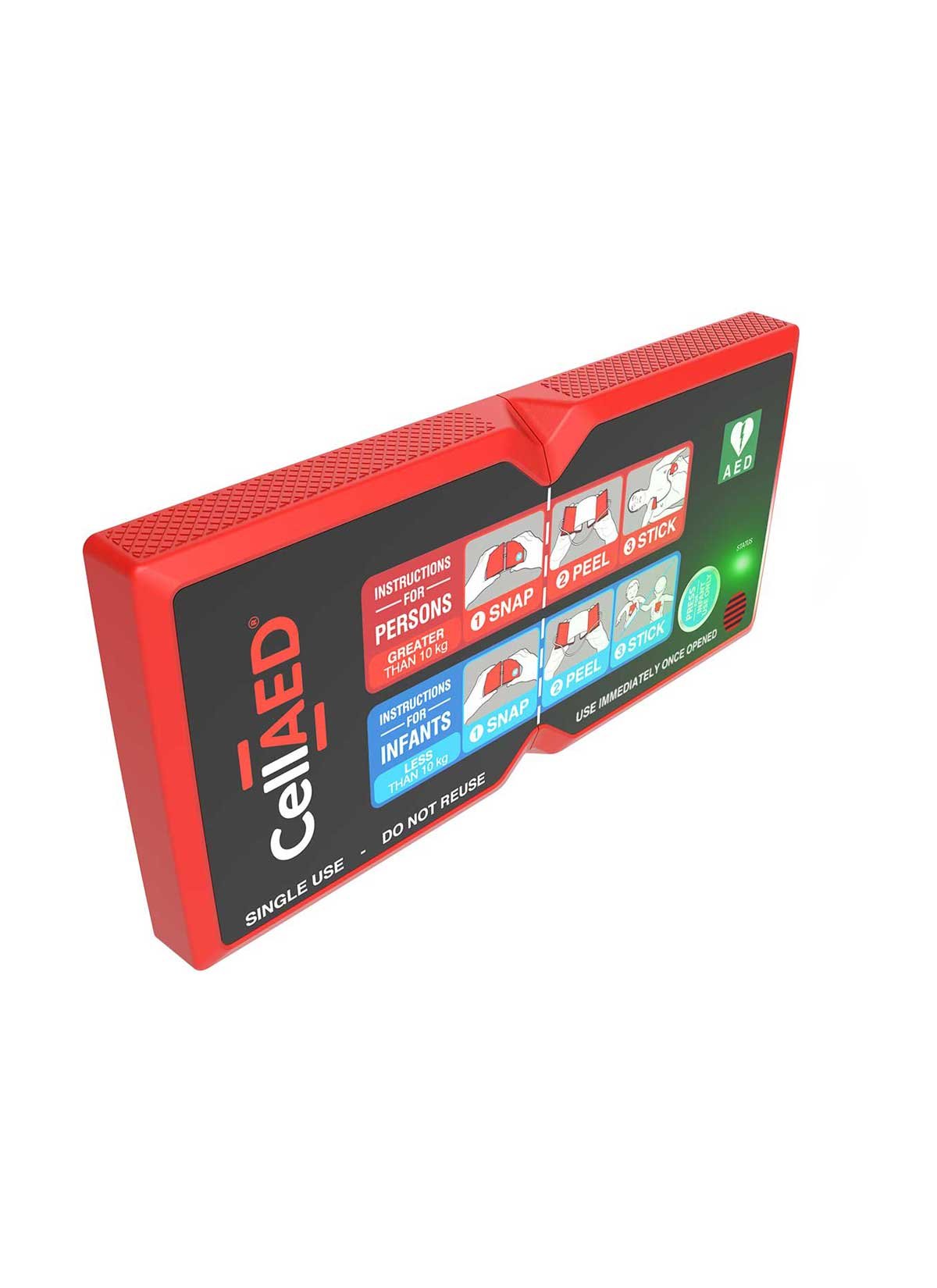

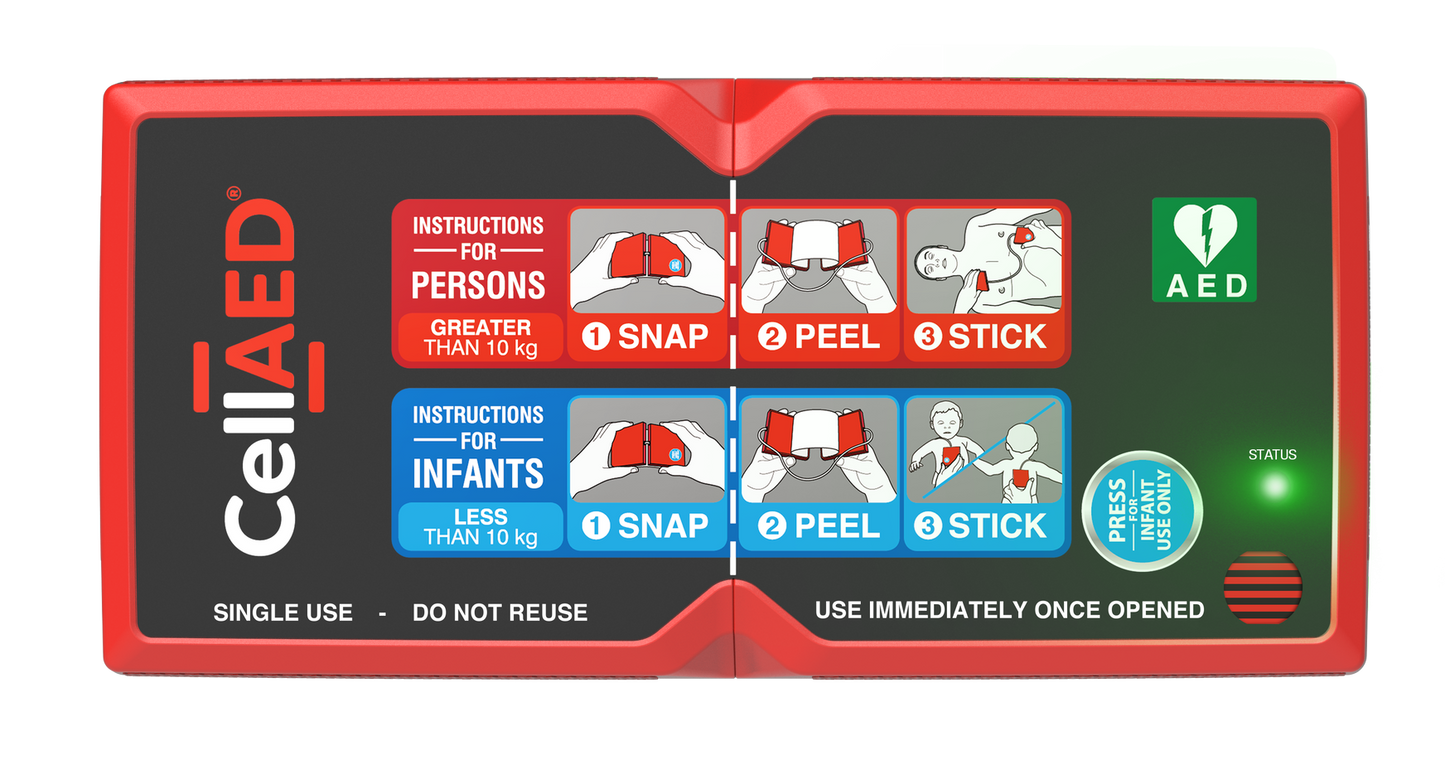

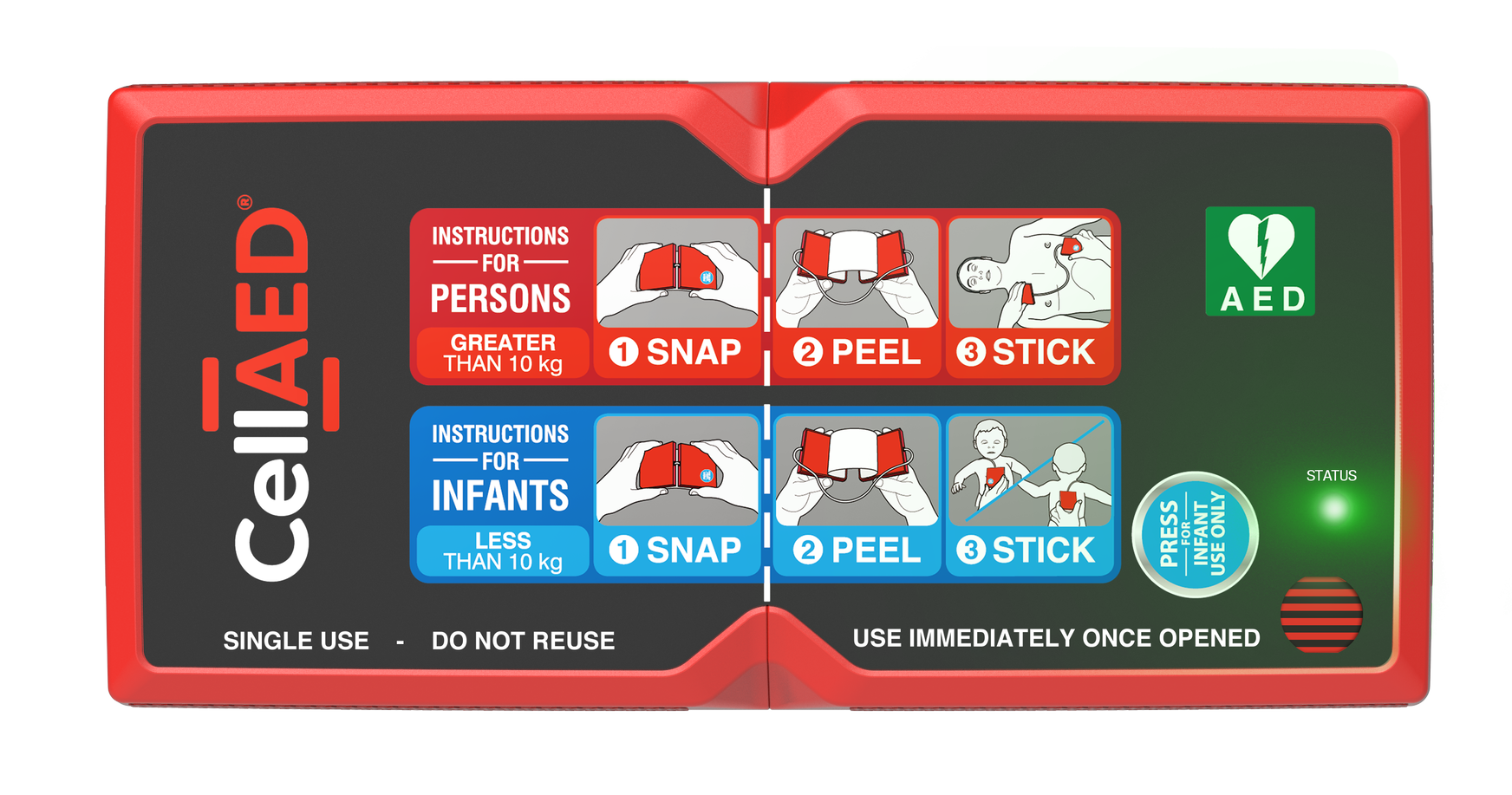

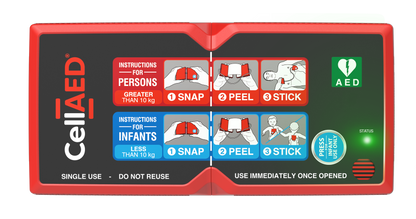

Fully integrated device includes visual instructions for activation and pad placement, voice prompts and audible tones.

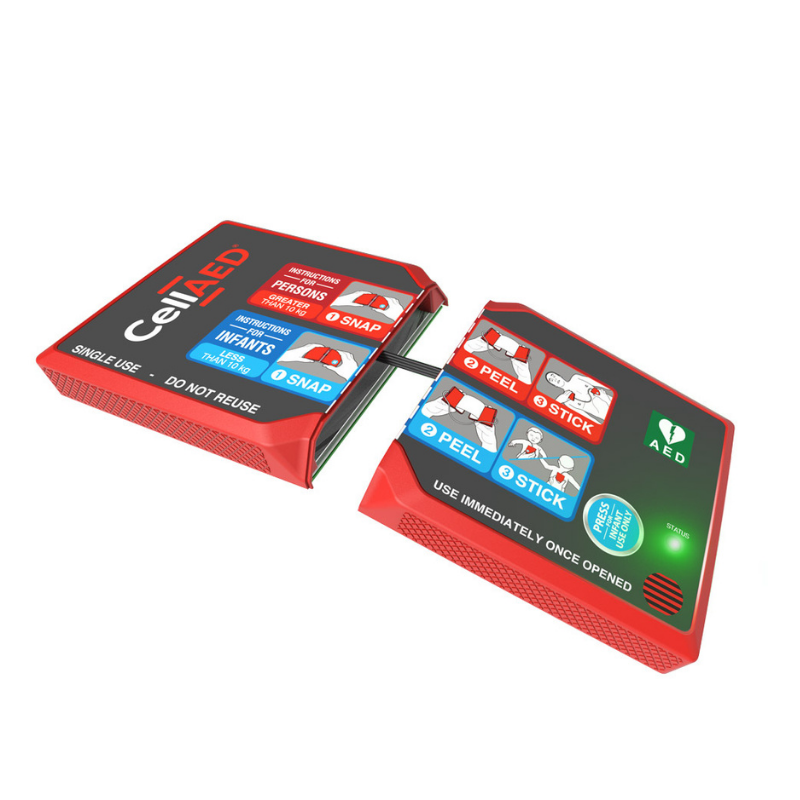

Power on: Snap device in half along perforated centre line

Device status: LED colour indicator:

Audio prompts Step-by-step audio voice instructions with 16 unique guided messages (75 dBA)
CPR coaching 2-minute metronome (beep) guidance
Infant mode Button activation for infants weighing less than 10 kg

Battery

Fully integrated pre-charged battery.
Type Non-rechargeable Lithium Battery indicator

Flashing LED system (See Device status above)

Dimensions

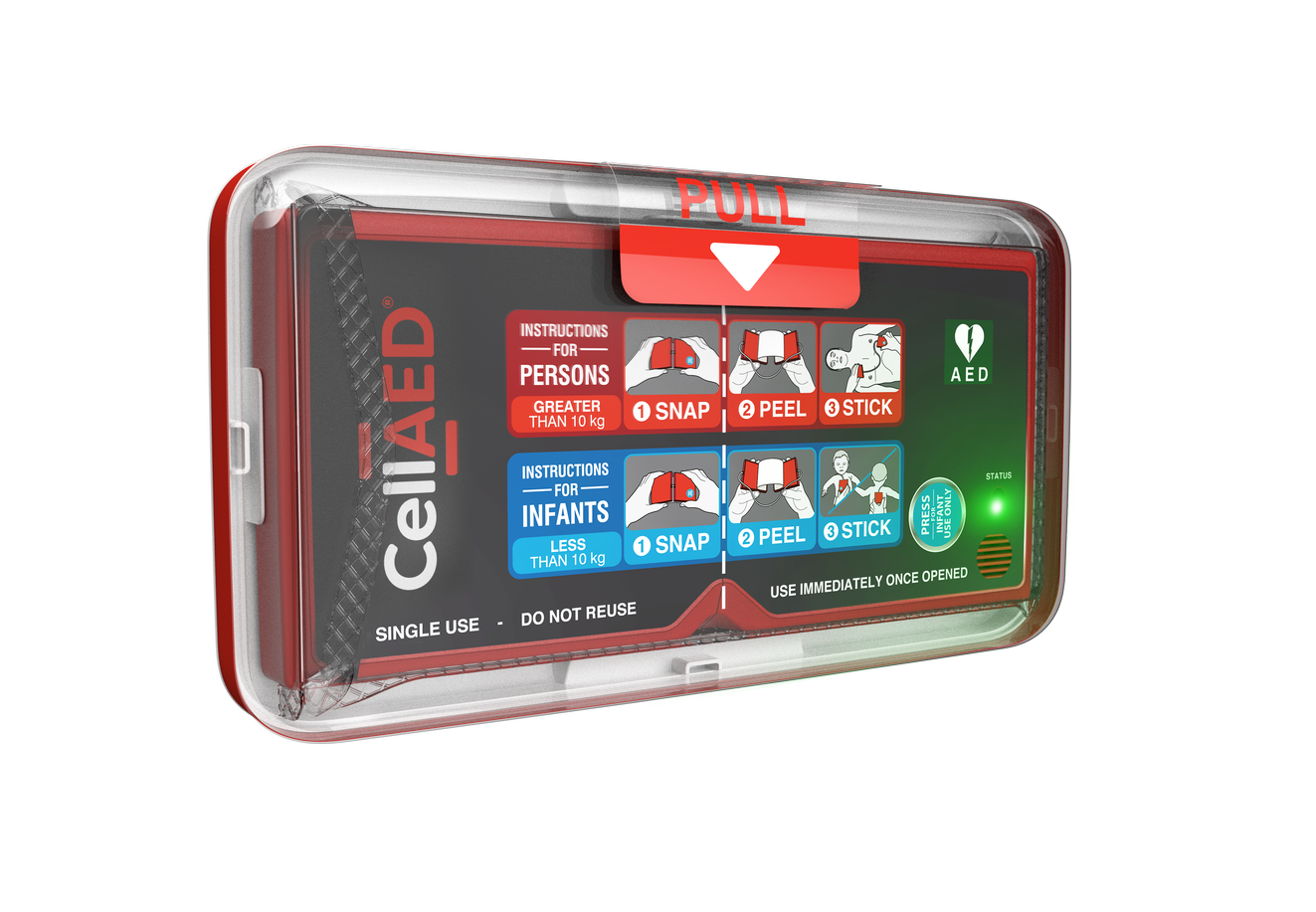

Stored in a sealed bag to preserve the life of the product within a tamper-evident case. Not to be opened until event use.
Length 19.6 cm
Width 9.3 cm
Depth 1.7 cm
Weight Approx. 300g and approx. 450g including device case

Defibrillator Performance

Patented automated external defibrillator (AED). Detecting shockable rhythms such as VF (ventricular fibrillation) and VT (ventricular tachycardia) and non-shockable rhythms.

Waveform: Equal leading-edge biphasic exponential waveform
Phase 1 Peak Current Up to 45 Amps
Phase 2 Peak Current Up to 45 Amps
Patient impedence range 25 to 175 Ohms
Time to shock < 50 seconds from power on activation

Maximum operating time Up to 20 defibrillation cycles (approximately 45 minutes)

ECG Analysis
System exceeding the requirements set by medical regulations including IEC 60601-2-4 and International Liaison Committee on Resuscitation (ILCOR)

Electrode Pads

Fully integrated electrode gel pads on the underside of device.
Material Hydrogel
Dimensions 8.86 x 9.34 cm
Contact area Total combined area 165.50 cm2

Connection 1 m electrical cable

Environment Specifications

All performance specifications assume the device has been stored within storage requirements.

Operating temperature: 0 to 35°C
Storage temperature: 15 to 35°C always store your CellAED® within this required temperature range
Transport: Temperature 0 to 35°C
Altitude: -100 m to 4,000 m
Atmospheric pressure: 60 kPa to 102 kPa
Relative humidity: 0 to 95% relative humidity (non-condensing)
Shelf life: 30 months from date of manufacture
Ingress protection: IP 22

Data Communication

Internet of Things (IoT) enabled device with the ability to monitor device and capture, store and transmit event data.
Type Internal sim operating on cellular 2G or 3G network

Monthly monitoring: Automatic monitoring device location, ambient temperature and battery voltage

Event data capture: Heart rhythm analysis, number of defibrillation cycles and whether defibrillation was delivered

Event data storage: Saved internally on device and uploaded to secure cloud location via cellular network upon device deactivation

Expiry date 30 months from date of manufacture- which takes into consideration the battery life, gel and other internal components
